UKOOA TYPE LB 600/1000V Flame retardant Cables

Application and Description

These cables are designed for fixed installation for power, control and lighting in both and safe areas, emergency and critical offshore applications where cable protection is required.

Standards

BS 6883/BS 7917/UKOOA
IEC 60332-3-22 CAT. A
IEC 60332-1
IEC 60754-1 & IEC 60754-2
IEC 61034-1 & IEC 61034-2

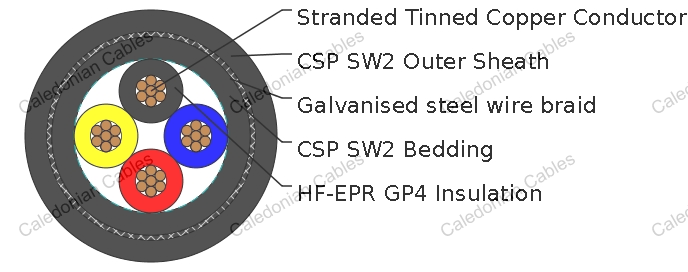

Construction

Conductor: Stranded class 2 or flexible class 5 tinned annealed copper conductors to BS 6360/IEC 60228.
Insulation: EPR complying with BS7655 GP4.
Bedding: CSP – SW2 compound complying with BS 7655.
Armour: Galvanised steel wire braid to BS 6883.
Outer Sheath: CSP – SW2 compound complying with BS 7655.

Dimensions and Weight

Construction No. of cores × Cross section(mm^2)	Nominal Insulation Thickness	Nominal Thickness of Inner Sheath	Nominal Thickness of Outer Sheath	Nominal Overall Diameter	Approx. Weight
Construction No. of cores × Cross section(mm^2)	mm	mm	mm	mm	kg/km
2×1.5	0.8	1.1	1.2	13.9	270
2×2.5	0.8	1.1	1.2	14.7	310
2×4	1.0	1.2	1.3	17.1	430
2×6	1.0	1.2	1.4	18.3	520
2×10	1.0	1.2	1.4	20.7	680
2×16	1.0	1.4	1.5	23.2	850
2×25	1.2	1.4	1.5	27.9	1500
2×35	1.2	1.6	1.8	30.1	1810
2×50	1.4	1.6	1.8	34.9	2510
2×70	1.4	1.6	1.8	39.2	3230
2×95	1.6	1.6	1.8	44.5	4220
2×120	1.6	1.6	1.8	48.6	5125
2×150	1.8	1.6	1.8	53.1	6210
2×185	2.0	1.6	1.8	58.2	7500
2×240	2.2	1.6	1.8	65.9	9440
2×300	2.4	1.6	1.8	72.5	11500
3×1.5	0.8	1.1	1.2	14.4	290
3×2.5	0.8	1.1	1.3	15.6	390
3×4	1.0	1.2	1.3	17.8	520
3×6	1.0	1.2	1.4	19.3	620
3×10	1.0	1.3	1.5	21.9	850
3×16	1.0	1.4	1.6	24.5	1150
3×25	1.2	1.6	1.8	29.8	1600
3×35	1.2	1.7	1.9	33.1	2200
3×50	1.4	1.8	2.0	37.0	3000
3×70	1.4	2.0	2.2	41.9	3980
3×95	1.6	2.2	2.4	47.4	5295
3×120	1.6	2.2	2.4	52.0	6490
3×150	1.8	2.2	2.4	57.0	7690
3×185	2.0	2.2	2.4	62.9	9550
3×240	2.2	2.2	2.4	65.2	12400
3×300	2.4	2.2	2.4	77.7	14900
4×1.5	0.8	1.1	1.3	15.6	360
4×2.5	0.8	1.1	1.3	16.6	470
4×4	1.0	1.2	1.4	19.3	620
4×6	1.0	1.3	1.5	21.3	760
4×10	1.0	1.4	1.6	23.9	1100
4×16	1.0	1.5	1.7	26.9	1500
4×25	1.2	1.7	1.9	33.6	2100
4×35	1.2	1.8	2.0	36.1	2700
4×50	1.4	1.9	2.2	40.9	3400
4×70	1.4	2.1	2.4	46.1	4600
4×95	1.6	2.3	2.6	52.3	5700
4×120	1.6	2.3	2.6	57.4	6900
4×150	1.8	2.3	2.6	63.1	8200
4×185	2.0	2.3	2.6	69.4	10260
4×240	2.2	2.3	2.6	78.1	13200
4×300	2.4	2.3	2.6	86.3	16300
5×1.5	0.8	1.1	1.3	16.5	420
5×2.5	0.8	1.1	1.3	17.8	550
5×4	1.0	1.1	1.3	21.2	720
7×1.5	0.8	1.2	1.3	17.8	520
7×2.5	0.8	1.2	1.4	19.2	600
7×4	1.0	1.2	1.4	22.7	800
12×1.5	0.8	1.3	1.5	22.5	850
12×2.5	0.8	1.4	1.6	24.6	950
19×1.5	0.8	1.4	1.6	25.8	1100
19×2.5	0.8	1.5	1.7	28.3	1400
27×1.5	0.8	1.5	1.7	30.7	1500
27×2.5	0.8	1.7	1.9	34.4	1800
37×1.5	0.8	1.7	1.9	34.7	2700
37×2.5	0.8	1.8	2.0	38.0	2950
