    Type W Two-Conductor Flat Portable Power Cable 2kV

    Application

    These flat parallel cables are designed for use on DC mining equipment, such as D.C. shuttle cars, drills, cutting and loading machines.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96

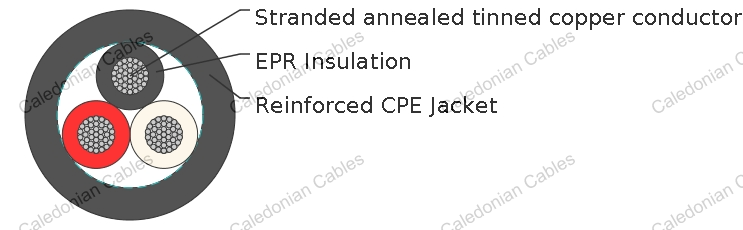

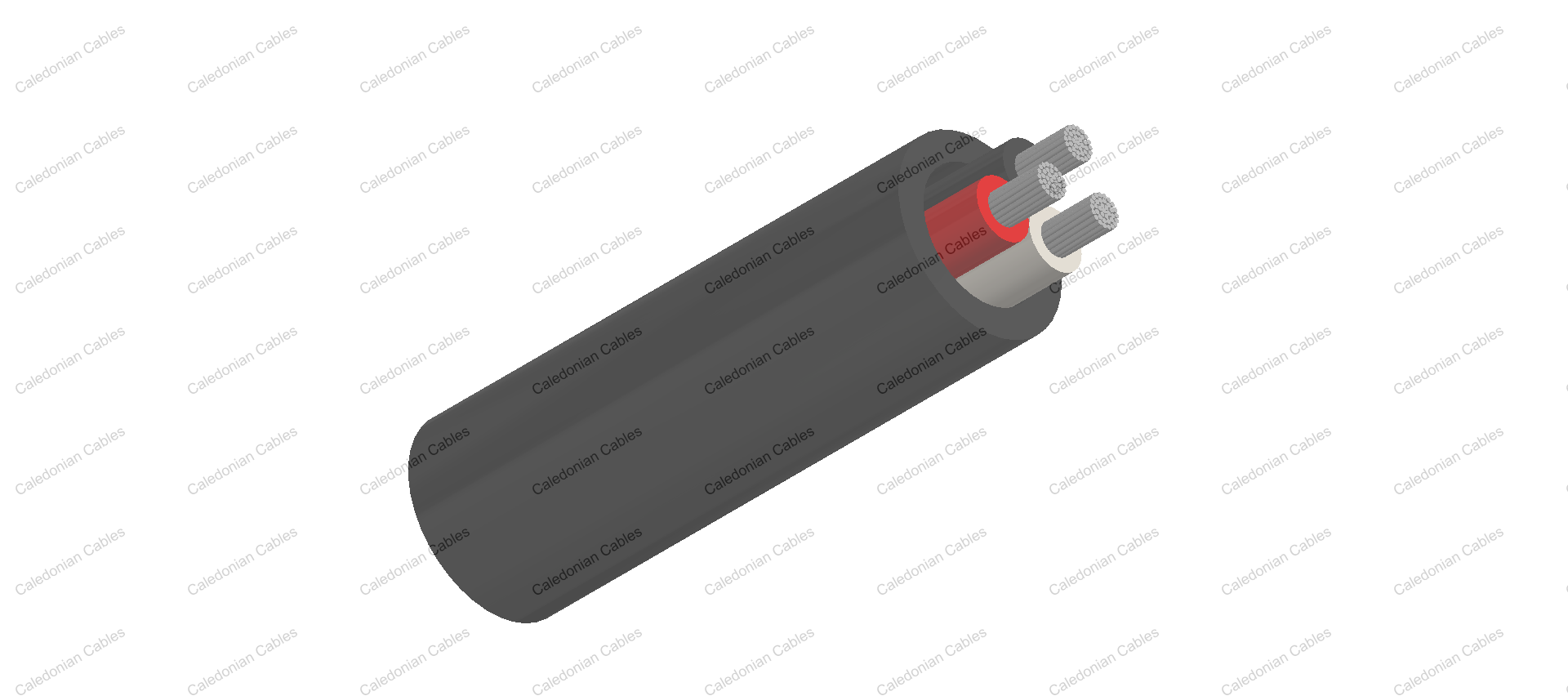

    Construction

    Conductors Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Reinforcement Synthetic yarn.
    Jacket Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 6×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Nominal Weight Ampacity
    No. of cores × AWG/kcmil - inch mm inch mm inch mm lbs/kft kg/km A
    2×8 133 0.06 1.5 0.080 2.0 0.51×0.84 13.0×21.3 340 506 72
    2×6 133 0.06 1.5 0.080 2.0 0.56×0.93 14.2×23.6 440 655 95
    2×4 259 0.06 1.5 0.095 2.4 0.61×1.05 15.5×26.7 550 818 127
    2×3 259 0.06 1.5 0.095 2.4 0.68×1.14 17.3×29.0 675 1005 145
    2×2 259 0.06 1.5 0.095 2.4 0.73×1.24 18.5×31.5 810 1205 167
    2×1 259 0.08 2.0 0.110 2.8 0.81×1.40 20.6×35.6 1020 1520 191
    2×1/0 259 0.08 2.0 0.125 3.2 0.93×1.51 23.6×38.2 1265 1880 217
    2×2/0 329 0.08 2.0 0.125 3.2 0.99×1.63 25.1×41.4 1515 2255 250
    2×3/0 413 0.08 2.0 0.140 3.6 1.03×1.77 26.2×45.0 1810 2694 286
    2×4/0 532 0.08 2.0 0.140 3.6 1.10×1.89 27.9×48.0 2175 3237 328

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
