    Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 5kV

    • Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 5kV

    Application

    These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96

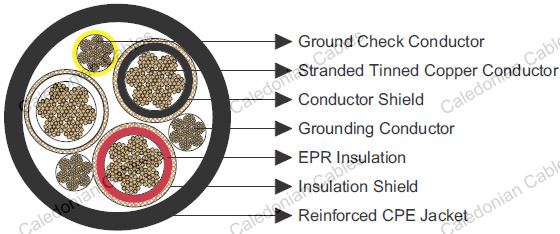

    Construction

    Conductors Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Ground Check Conductor Tinned copper with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 6×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
    No. of cores × AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
    3×6 133 10 8 0.110 2.8 0.185 4.7 1.56 39.6 1560 2322 93
    3×4 259 8 8 0.110 2.8 0.185 4.7 1.68 42.7 1895 2820 122
    3×2 259 6 8 0.110 2.8 0.205 5.2 1.87 47.5 2445 3639 159
    3×1 259 5 8 0.110 2.8 0.205 5.2 1.95 49.5 2800 4167 184
    3×1/0 266 4 8 0.110 2.8 0.220 5.6 2.08 52.8 3230 4807 211
    3×2/0 329 3 8 0.110 2.8 0.220 5.6 2.20 55.9 3800 5655 243
    3×3/0 418 2 8 0.110 2.8 0.235 6.0 2.36 59.9 4475 6660 279
    3×4/0 532 1 8 0.110 2.8 0.235 6.0 2.50 63.5 5265 7835 321
    3×250 627 1/0 6 0.120 3.0 0.250 6.4 2.69 68.3 6105 9085 355
    3×300 741 1/0 6 0.120 3.0 0.250 6.4 2.81 71.4 6875 10231 398
    3×350 888 2/0 6 0.120 3.0 0.265 6.7 2.95 74.9 7795 11600 435
    3×500 1221 4/0 6 0.120 3.0 0.280 7.1 3.31 84.1 10415 15499 536

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
