    Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 15kV

    • Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 15kV

    Application

    These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96

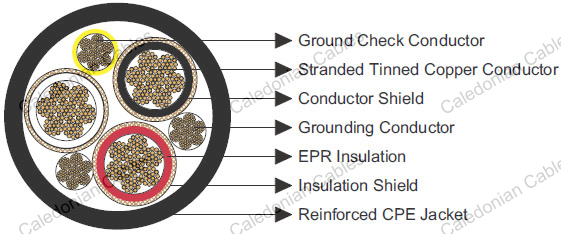

    Construction

    Conductors Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Conducting tape + Tinned copper/textile braid.
    Ground Check Conductor Tinned copper with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 8×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
    No. of cores × AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
    3×2 259 6 8 0.210 5.3 0.235 6.0 2.41 61.2 3572 5529 164
    3×1 259 5 8 0.210 5.3 0.235 6.0 2.52 64.0 4060 6042 187
    3×1/0 259 4 8 0.210 5.3 0.250 6.4 2.64 67.0 4495 6927 215
    3×2/0 329 3 8 0.210 5.3 0.250 6.4 2.73 69.3 5010 7783 246
    3×3/0 413 2 8 0.210 5.3 0.265 6.7 2.90 73.7 5995 8922 283
    3×4/0 532 1 8 0.210 5.3 0.265 6.7 3.05 77.5 6860 10209 325

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
