    Type SHD-CGC Three-Conductor Round Portable Power Cable 5kV

    • Type SHD-CGC Three-Conductor Round Portable Power Cable 5kV

    Application

    These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96

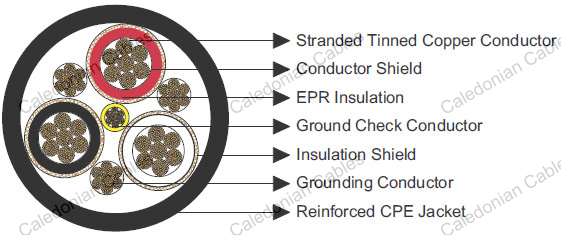

    Construction

    Conductors Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Ground Check Conductor Tinned copper with a yellow insulation, located in the center of the cable.
    Grounding Conductor Tinned copper conductor.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 6×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
    No. of cores × AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
    3×2/0 323 5 16 0.11 2.8 0.220 5.6 2.20 55.9 3716 5529 243
    3×3/0 418 4 16 0.11 2.8 0.235 6.0 2.36 59.9 4130 6145 279
    3×4/0 532 3 16 0.11 2.8 0.235 6.0 2.50 63.5 5190 7722 321
    3×350 888 1 16 0.12 3.0 0.265 6.7 2.95 74.9 7571 11264 435

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
