High Temperature Cables

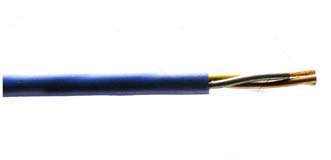

TML Cable - Type A for Process Water, Type B Drinking Water
Product application :
As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 70°C. In addition DIN VDE 0298 T.300 has to be respected.
Product characteristic:
Construction:
Fine stranded bare copper conductor
EPR outer sheath
EPR insulation
Technical:
Characteristics at 20oC:
Rated voltage : 600/1000V
Maximum admissible operating voltage:
in 1 ph and 3 ph systems : 720 / 1200V
in D C systems : 1800 V
conductor resistance to DIN / VDE 0295
Test voltage 50Hz, 5 min : 2500 V
Temperature range:
Maximum admissible conductor
Temperature in operation 90°C
Short circuit temperature 250°C
Fixed : -40oC up to + 80°C
In motion : -25oC up to + 80°C
Tensile stress : maximum 15 N each sqmm conductor cross sectio
Properties:
Adapted to DIN VDE 0250 and DIN VDE 0282
Excellent insulation properties in water
Very low water absorption
Preservation of the mechanical strength
BAM* certificate VI.31/10904/01 - confirming the suitability of TML type B in drinking water.
Product specification:
AWG |
No. of Cores |
Conductor cross section |
O .D. mm |
Gross Copper weight |
Gross |
|
Min - Max. |
||||||
16 |
1 |
1.5 |
5.8 |
7.2 |
14.4 |
54 |
14 |
1 |
2.5 |
6.4 |
8 |
24 |
76 |
12 |
1 |
4 |
7.4 |
9 |
38 |
105 |
10 |
1 |
6 |
8 |
11 |
58 |
135 |
8 |
1 |
10 |
9.8 |
12.5 |
96 |
200 |
6 |
1 |
16 |
11 |
14.5 |
154 |
290 |
4 |
1 |
25 |
12.5 |
16.5 |
240 |
410 |
2 |
1 |
35 |
14 |
18.5 |
336 |
560 |
1 |
1 |
50 |
16.5 |
21 |
480 |
740 |
2/0 |
1 |
70 |
18.5 |
23.5 |
672 |
1000 |
3/0 |
1 |
95 |
21 |
26 |
912 |
1300 |
4/0 |
1 |
120 |
23.5 |
28.5 |
1152 |
1650 |
300kcmil |
1 |
150 |
26 |
31.5 |
1440 |
2000 |
350kcmil |
1 |
185 |
27.5 |
34.5 |
1776 |
2500 |
- |
1 |
240 |
30.5 |
38 |
2304 |
3100 |
- |
1 |
300 |
33.5 |
41.5 |
2880 |
3700 |
16 |
2 |
1.5 |
9 |
11.5 |
29 |
130 |
14 |
2 |
2.5 |
10.5 |
13.5 |
48 |
190 |
12 |
2 |
4 |
12 |
15 |
77 |
260 |
10 |
2 |
6 |
13.5 |
18.5 |
115 |
350 |
8 |
2 |
10 |
18.5 |
24 |
192 |
550 |
6 |
2 |
16 |
21 |
27.5 |
307 |
900 |
4 |
2 |
25 |
25 |
31.5 |
480 |
1300 |
16 |
3 |
1.5 |
9.6 |
12.5 |
43 |
150 |
14 |
3 |
2.5 |
11.5 |
14.5 |
72 |
220 |
12 |
3 |
4 |
13 |
16 |
115 |
340 |
10 |
3 |
6 |
14.5 |
20 |
173 |
480 |
8 |
3 |
10 |
20 |
25.5 |
288 |
750 |
6 |
3 |
16 |
22.5 |
29.5 |
461 |
1100 |
4 |
3 |
25 |
26.5 |
34 |
720 |
1450 |
2 |
3 |
35 |
29.5 |
38 |
1008 |
2100 |
1 |
3 |
50 |
34.5 |
44 |
1440 |
2800 |
2/0 |
3 |
70 |
39 |
49.5 |
2016 |
3800 |
3/0 |
3 |
95 |
44 |
54.6 |
2736 |
4600 |
4/0 |
3 |
120 |
47.5 |
59 |
3456 |
5400 |
16 |
4 |
1.5 |
10.5 |
13.5 |
58 |
190 |
14 |
4 |
2.5 |
12.5 |
15.5 |
96 |
280 |
12 |
4 |
4 |
14.5 |
18 |
154 |
390 |
10 |
4 |
6 |
16.5 |
22 |
230 |
520 |
8 |
4 |
10 |
22.5 |
24.5 |
384 |
950 |
6 |
4 |
16 |
26.5 |
28.5 |
614 |
1400 |
4 |
4 |
25 |
32 |
34 |
960 |
1950 |
2 |
4 |
35 |
33 |
42.5 |
1344 |
2700 |
1 |
4 |
50 |
38 |
48.5 |
1920 |
3600 |
2/0 |
4 |
70 |
43 |
54.5 |
2688 |
4900 |
3/0 |
4 |
95 |
50 |
60.5 |
3648 |
6200 |
4/0 |
4 |
120 |
53 |
65.5 |
4608 |
7200 |
16 |
5 |
1.5 |
11.5 |
15 |
72 |
230 |
14 |
5 |
2.5 |
13.5 |
17 |
120 |
340 |
12 |
5 |
4 |
16 |
19.5 |
192 |
470 |
10 |
5 |
6 |
18 |
24.5 |
288 |
640 |
8 |
5 |
10 |
24 |
30.5 |
480 |
1150 |
6 |
5 |
16 |
27 |
35.5 |
768 |
1700 |
