High Temperature Cables

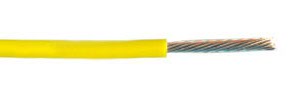

High Temperature PTFE Cable
Product application:
Equipment wire for high performance aerospace applications. PTFE wires are used in severe environmental conditions.
Product characteristic:
Construction:
Stranded silver or nickel plated copper conductor
Polytetrafluoroethylene insulation
Sheath colour:Black, Blue, Brown, Red, White, Grey, Violet, Pink, Orange, Yellow, Green/Yellow to BS 3G Z10
Technical:
Temperature Rating: -75°C to +190°C
Minimum Bending Radius: 6 x overall diameter
Voltage Working: Type A 300V Test 2500V
Type B 600V Test 3400V
Type C 1000V Test 5000V
Colour code confirms to BS 3G Z10
Properties:
Good resistance to oils, fuels and fluids
Heat resistance
voltage ratings are conforming to American MIL, VDE, DIN, BS, or Lloyd’s standards
Product specification:
AWG |
Strand x |
Conductor Cross Section |
Voltage |
O/D mm |
Gross |
30 |
7/0.10 |
0.056 |
A |
0.50-0.65 |
1.1 |
28 |
7/0.12 |
0.089 |
A |
0.56-0.71 |
1.4 |
28 |
7/0.12 |
0.089 |
B |
0.76-0.96 |
2.1 |
26 |
7/0.15 |
0.14 |
A |
0.65-0.80 |
1.1 |
26 |
7/0.15 |
0.14 |
B |
0.85-1.05 |
3.09 |
24 |
7/0.20 |
0.22 |
A |
0.80-0.95 |
3.04 |
24 |
7/0.20 |
0.22 |
B |
1.00-1.20 |
3.89 |
24 |
7/0.20 |
0.22 |
C |
1.26-1.52 |
4.64 |
22 |
19/0.15 |
0.35 |
A |
0.95-1.10 |
4.41 |
22 |
19/0.15 |
0.35 |
B |
1.15-1.35 |
5.44 |
22 |
19/0.15 |
0.35 |
C |
1.41-1.67 |
6.43 |
20 |
19/0.20 |
0.61 |
A |
1.20-1.35 |
7.19 |
20 |
19/0.20 |
0.61 |
B |
1.40-1.60 |
8.43 |
20 |
19/0.20 |
0.61 |
C |
1.66-1.92 |
9.08 |
18 |
19/0.25 |
0.96 |
B |
1.65-1.85 |
12.1 |
18 |
19/0.25 |
0.96 |
C |
1.91-2.17 |
14.3 |
16 |
19/0.30 |
1.23 |
C |
2.16-2.46 |
16.5 |
14 |
19/0.36 |
1.94 |
C |
2.34-2.74 |
23.9 |
12 |
19/0.45 |
3.08 |
C |
2.91-3.31 |
38.5 |
10 |
37/0.40 |
4.65 |
C |
3.46-3.86 |
56.0 |
