Telephone Cables |  |
||||||||||
|
||||||||||||
|
||||||||||||
Solid PE Insulated & AP Sheathed (ALPETH) Air Core Cables to ICEA S-85-625

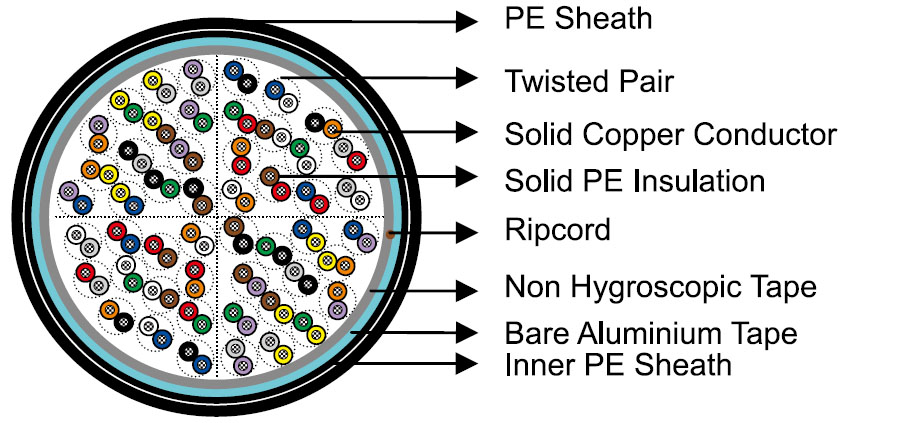

Solid PE Insulated & Double Sheathed Alpeth (PAP) Air Core Cable to ICEA S-85-625
| Cable Code | Number of Pairs |
Nominal Sheath Thickness | Nominal Overall Diameter mm/inch |
Nominal Weight kg/km / lbs/kft |
|
| Inner | Outer | ||||
| mm/inch | mm/inch | ||||
| 0.4mm Conductor, 0.7mm Insulated Wire | |||||
TP625-2Y2Y(A)2Y-3P04 |
3 |
1.2/0.047 |
1.5/0.059 |
10.5/0.413 |
70/47 |
TP625-2Y2Y(A)2Y-5P04 |
5 |
1.2/0.047 |
1.5/0.059 |
11.0/0.433 |
85/57 |
TP625-2Y2Y(A)2Y-6P04 |
6 |
1.2/0.047 |
1.5/0.059 |
11.0/0.433 |
90/60 |
TP625-2Y2Y(A)2Y-10P04 |
10 |
1.2/0.047 |
1.5/0.059 |
12.0/0.472 |
110/74 |
TP625-2Y2Y(A)2Y-12P04 |
12 |
1.2/0.047 |
1.5/0.059 |
12.5/0.492 |
120/81 |
TP625-2Y2Y(A)2Y-15P04 |
15 |
1.2/0.047 |
1.5/0.059 |
13.0/0.512 |
140/94 |
TP625-2Y2Y(A)2Y-20P04 |
20 |
1.2/0.047 |
1.5/0.059 |
13.5/0.531 |
150/101 |
TP625-2Y2Y(A)2Y-25P04 |
25 |
1.2/0.047 |
1.5/0.059 |
14.5/0.571 |
175/118 |
TP625-2Y2Y(A)2Y-30P04 |
30 |
1.2/0.047 |
1.5/0.059 |
15.0/0.591 |
195/131 |
TP625-2Y2Y(A)2Y-40P04 |
40 |
1.2/0.047 |
1.5/0.059 |
16.0/0.630 |
235/158 |
TP625-2Y2Y(A)2Y-50P04 |
50 |
1.2/0.047 |
1.5/0.059 |
17.0/0.670 |
270/181 |
TP625-2Y2Y(A)2Y-75P04 |
75 |
1.2/0.047 |
1.5/0.059 |
19.0/0.748 |
360/241 |
TP625-2Y2Y(A)2Y-100P04 |
100 |
1.2/0.047 |
1.5/0.059 |
20.5/0.807 |
445/299 |
TP625-2Y2Y(A)2Y-150P04 |
150 |
1.2/0.047 |
1.5/0.059 |
23.0/0.906 |
610/410 |
TP625-2Y2Y(A)2Y-200P04 |
200 |
1.2/0.047 |
1.5/0.059 |
26.0/1.02 |
770/517 |
TP625-2Y2Y(A)2Y-300P04 |
300 |
1.2/0.047 |
1.5/0.059 |
30.0/1.18 |
1135/763 |
TP625-2Y2Y(A)2Y-400P04 |
400 |
1.6/0.063 |
1.8/0.071 |
34.5/1.36 |
1455/978 |
TP625-2Y2Y(A)2Y-600P04 |
600 |
1.6/0.063 |
2.0/0.079 |
40.5/1.59 |
2100/1411 |
TP625-2Y2Y(A)2Y-900P04 |
900 |
1.6/0.063 |
2.0/0.079 |
48.0/1.89 |
3070/2063 |
| 0.5mm Conductor, 0.9mm Insulated Wire | |||||
TP625-2Y2Y(A)2Y-3P05 |
3 |
1.2/0.047 |
1.5/0.059 |
11.0/0.433 |
80/54 |
| TP625-2Y2Y(A)2Y-5P05 | 5 | 1.2/0.047 | 1.5/0.059 | 2.5/0.098 | 100/67 |
| TP625-2Y2Y(A)2Y-6P05 | 6 | 1.2/0.047 | 1.5/0.059 | 12.0/0.472 | 110/74 |
| TP625-2Y2Y(A)2Y-10P05 | 10 | 1.2/0.047 | 1.5/0.059 | 13.0/0.512 | 140/94 |
| TP625-2Y2Y(A)2Y-12P05 | 12 | 1.2/0.047 | 1.5/0.059 | 13.5/0.531 | 150/101 |
| TP625-2Y2Y(A)2Y-15P05 | 15 | 1.2/0.047 | 1.5/0.059 | 14.5/0.571 | 170/114 |
| TP625-2Y2Y(A)2Y-20P05 | 20 | 1.2/0.047 | 1.5/0.059 | 15.5/0.610 | 200/134 |
| TP625-2Y2Y(A)2Y-25P05 | 25 | 1.2/0.047 | 1.5/0.059 | 16.0/0.630 | 230/155 |
| TP625-2Y2Y(A)2Y-30P05 | 30 | 1.2/0.047 | 1.5/0.059 | 17.0/0.670 | 265/178 |
| TP625-2Y2Y(A)2Y-40P05 | 40 | 1.2/0.047 | 1.5/0.059 | 18.5/0.728 | 320/215 |
| TP625-2Y2Y(A)2Y-50P05 | 50 | 1.2/0.047 | 1.5/0.059 | 19.5/0.768 | 370/249 |
| TP625-2Y2Y(A)2Y-75P05 | 75 | 1.2/0.047 | 1.5/0.059 | 22.0/0.866 | 505/339 |
| TP625-2Y2Y(A)2Y-100P05 | 100 | 1.2/0.047 | 1.5/0.059 | 25.0/0.984 | 640/430 |
| TP625-2Y2Y(A)2Y-150P05 | 150 | 1.2/0.047 | 1.5/0.059 | 28.5/1.121 | 890/598 |
| TP625-2Y2Y(A)2Y-200P05 | 200 | 1.6/0.063 | 1.8/0.071 | 33.0/1.30 | 1190/800 |
| TP625-2Y2Y(A)2Y-300P05 | 300 | 1.6/0.063 | 1.8/0.071 | 38.0/1.50 | 1700/1142 |
| TP625-2Y2Y(A)2Y-400P05 | 400 | 1.6/0.063 | 2.0/0.079 | 42.5/1.67 | 2200/1478 |
| TP625-2Y2Y(A)2Y-600P05 | 600 | 1.8/0.079 | 2.3/0.091 | 51.5/2.03 | 3235/2174 |
| TP625-2Y2Y(A)2Y-900P05 | 900 | 2.0/0.079 | 2.5/0.098 | 61.0/2.40 | 4705/3162 |
| 0.63mm Conductor, 1.15mm Insulated Wire | |||||
| TP625-2Y2Y(A)2Y-3P063 | 3 | 1.2/0.047 | 1.5/0.059 | 11.5/0.453 | 95/64 |
| TP625-2Y2Y(A)2Y-5P063 | 5 | 1.2/0.047 | 1.5/0.059 | 13.0/0.512 | 120/81 |
| TP625-2Y2Y(A)2Y-6P063 | 6 | 1.2/0.047 | 1.5/0.059 | 13.0/0.512 | 135/91 |
| TP625-2Y2Y(A)2Y-10P063 | 10 | 1.2/0.047 | 1.5/0.059 | 14.5/0.571 | 175/118 |
| TP625-2Y2Y(A)2Y-12P063 | 12 | 1.2/0.047 | 1.5/0.059 | 15.5/0.610 | 195/131 |
| TP625-2Y2Y(A)2Y-15P063 | 15 | 1.2/0.047 | 1.5/0.059 | 16.0/0.630 | 230/155 |
| TP625-2Y2Y(A)2Y-20P063 | 20 | 1.2/0.047 | 1.5/0.059 | 17.5/0.689 | 270/181 |
| TP625-2Y2Y(A)2Y-25P063 | 25 | 1.2/0.047 | 1.5/0.059 | 18.5/0.728 | 315/212 |
| TP625-2Y2Y(A)2Y-30P063 | 30 | 1.2/0.047 | 1.5/0.059 | 19.5/0.768 | 365/245 |
| TP625-2Y2Y(A)2Y-40P063 | 40 | 1.2/0.047 | 1.5/0.059 | 21.0/0.827 | 450/302 |
| TP625-2Y2Y(A)2Y-50P063 | 50 | 1.2/0.047 | 1.5/0.059 | 22.5/0.886 | 530/356 |
| TP625-2Y2Y(A)2Y-75P063 | 75 | 1.2/0.047 | 1.5/0.059 | 26.5/1.04 | 730/491 |
| TP625-2Y2Y(A)2Y-100P063 | 100 | 1.2/0.047 | 1.5/0.059 | 29.5/1.16 | 930/625 |
| TP625-2Y2Y(A)2Y-150P063 | 150 | 1.6/0.063 | 1.8/0.071 | 35.5/1.40 | 1370/921 |
| TP625-2Y2Y(A)2Y-200P063 | 200 | 1.6/0.063 | 2.0/0.079 | 39.5/1.56 | 1775/1193 |
| TP625-2Y2Y(A)2Y-300P063 | 300 | 1.6/0.063 | 2.0/0.079 | 47.0/1.85 | 2555/1717 |
| TP625-2Y2Y(A)2Y-400P063 | 400 | 1.8/0.079 | 2.3/0.091 | 53.5/2.11 | 3375/2268 |
| TP625-2Y2Y(A)2Y-600P063 | 600 | 2.0/0.079 | 2.5/0.098 | 63.5/2.50 | 4930/3313 |
| 0.9mm Conductor, 1.5mm Insulated Wire | |||||
| TP625-2Y2Y(A)2Y-3P09 | 3 | 1.2/0.047 | 1.5/0.059 | 13.5/0.531 | 135/91 |
| TP625-2Y2Y(A)2Y-5P09 | 5 | 1.2/0.047 | 1.5/0.059 | 15.0/0.591 | 175/118 |
| TP625-2Y2Y(A)2Y-6P09 | 6 | 1.2/0.047 | 1.5/0.059 | 15.5/0.610 | 195/131 |
| TP625-2Y2Y(A)2Y-10P09 | 10 | 1.2/0.047 | 1.5/0.059 | 17.5/0.689 | 265/178 |
| TP625-2Y2Y(A)2Y-12P09 | 12 | 1.2/0.047 | 1.5/0.059 | 18.5/0.728 | 300/202 |
| TP625-2Y2Y(A)2Y-15P09 | 15 | 1.2/0.047 | 1.5/0.059 | 19.5/0.768 | 370/249 |
| TP625-2Y2Y(A)2Y-20P09 | 20 | 1.2/0.047 | 1.5/0.059 | 21.5/0.846 | 450/302 |
| TP625-2Y2Y(A)2Y-25P09 | 25 | 1.2/0.047 | 1.5/0.059 | 23.0/0.906 | 525/353 |
| TP625-2Y2Y(A)2Y-30P09 | 30 | 1.2/0.047 | 1.5/0.059 | 25.0/0.984 | 635/427 |
| TP625-2Y2Y(A)2Y-40P09 | 40 | 1.2/0.047 | 1.5/0.059 | 27.5/1.08 | 800/538 |
| TP625-2Y2Y(A)2Y-50P09 | 50 | 1.2/0.047 | 1.5/0.059 | 30.0/1.18 | 920/618 |
| TP625-2Y2Y(A)2Y-75P09 | 75 | 1.6/0.063 | 1.8/0.071 | 36.0/1.42 | 1360/914 |
| TP625-2Y2Y(A)2Y-100P09 | 100 | 1.6/0.063 | 2.0/0.079 | 40.5/1.59 | 1765/1186 |
| TP625-2Y2Y(A)2Y-150P09 | 150 | 1.6/0.063 | 2.0/0.079 | 48.0/1.89 | 2545/1710 |
| TP625-2Y2Y(A)2Y-200P09 | 200 | 1.8/0.071 | 2.3/0.091 | 54.5/2.15 | 3440/2312 |
| TP625-2Y2Y(A)2Y-300P09 | 300 | 2.0/0.079 | 2.5/0.098 | 64.5/2.54 | 5010/3367 |
| TP625-2Y2Y(A)2Y-400P09 | 400 | 2.0/0.079 | 2.8/0.110 | 73.5/2.90 | 6560/4408 |
