Telephone Cables |  |
||||||||||
|
||||||||||||
|
||||||||||||
Solid PE Insulated & AP Sheathed Air Core Cables to ICEA S-85-625
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Colour Code
Standard colour code is per IEC 60708 given in Colour Code Chart
Dimensions And Weight
Solid PE Insulated & LAP Sheathed Air Core Cable to IEC 6070
| Cable Code | Number of Pairs | Nominal Sheath Thickness mm/inch |
Nominal Overall Diameter mm/inch |
Nominal Weight kg/km / lbs/kft |
| 0.4mm Conductor, 0.7mm Insulated Wire | ||||
TP22-2Y(L)2Y-3P04 |
3 |
1.5/0.059 |
8.0/0.32 |
55/37 |
TP22-2Y(L)2Y-5P04 |
5 |
1.5/0.059 |
8.5/0.33 |
60/40 |
TP22-2Y(L)2Y-6P04 |
6 |
1.5/0.059 |
9.0/0.35 |
65/44 |
TP22-2Y(L)2Y-10P04 |
10 |
1.5/0.059 |
9.5/0.37 |
80/54 |
TP22-2Y(L)2Y-12P04 |
12 |
1.5/0.059 |
10.0/0.39 |
90/60 |
TP22-2Y(L)2Y-15P04 |
15 |
1.5/0.059 |
10.5/0.41 |
100/67 |
TP22-2Y(L)2Y-20P04 |
20 |
1.5/0.059 |
11.0/0.43 |
120/81 |
TP22-2Y(L)2Y-25P04 |
25 |
1.5/0.059 |
12.0/0.47 |
140/94 |
TP22-2Y(L)2Y-30P04 |
30 |
1.5/0.059 |
12.5/0.49 |
155/104 |
TP22-2Y(L)2Y-40P04 |
40 |
1.5/0.059 |
13.5/0.53 |
190/128 |
TP22-2Y(L)2Y-50P04 |
50 |
1.5/0.059 |
14.5/0.57 |
220/148 |
TP22-2Y(L)2Y-75P04 |
75 |
1.5/0.059 |
16.5/0.65 |
300/202 |
TP22-2Y(L)2Y-100P04 |
100 |
1.5/0.059 |
18.0/0.71 |
380/255 |
TP22-2Y(L)2Y-150P04 |
150 |
1.5/0.059 |
21.0/0.83 |
540/363 |
TP22-2Y(L)2Y-200P04 |
200 |
1.5/0.059 |
24.0/0.94 |
690/464 |
TP22-2Y(L)2Y-300P04 |
300 |
1.5/0.059 |
30.5/1.20 |
1000/672 |
TP22-2Y(L)2Y-400P04 |
400 |
1.8/0.071 |
31.5/1.24 |
1300/874 |
TP22-2Y(L)2Y-600P04 |
600 |
2.0/0.079 |
37.5/1.48 |
1900/1277 |
TP22-2Y(L)2Y-800P04 |
800 |
2.3/0.091 |
43.0/1.69 |
2800/1882 |
| TP22-2Y(L)2Y-900P04 | 900 | 2.3/0.091 | 46.0/1.81 | 2961/1990 |
| TP22-2Y(L)2Y-1000P04 | 1000 | 2.5/0.098 | 48.0/1.89 | 3264/2193 |
| TP22-2Y(L)2Y-1200P04 | 1200 | 2.8/0.110 | 52.0/2.05 | 3873/2603 |
| TP22-2Y(L)2Y-1500P04 | 1500 | 2.8/0.110 | 58.0/2.28 | 4819/3238 |
| TP22-2Y(L)2Y-1800P04 | 1800 | 3.2/0.126 | 63.0/2.48 | 5777/3882 |
| TP22-2Y(L)2Y-2100P04 | 2100 | 3.2/0.126 | 68.0/2.68 | 6731/4523 |
| TP22-2Y(L)2Y-2400P04 | 2400 | 3.5/0.138 | 72.0/2.83 | 7645/5137 |
| TP22-2Y(L)2Y-2700P04 | 2700 | 3.5/0.138 | 76.0/2.99 | 8556/5749 |
| TP22-2Y(L)2Y-3000P04 | 3000 | 3.5/0.138 | 80.0/3.15 | 9466/6361 |
0.5mm Conductor, 0.9mm Insulated Wire |
||||
| TP22-2Y(L)2Y-6P05 | 6 | 1.5/0.059 | 9.40/0.37 | 82/55 |
| TP22-2Y(L)2Y-12P05 | 12 | 1.5/0.059 | 10.92/0.43 | 119/80 |
| TP22-2Y(L)2Y-25P05 | 25 | 1.5/0.059 | 13.72/0.54 | 201/135 |
| TP22-2Y(L)2Y-50P05 | 50 | 1.5/0.059 | 17.02/0.67 | 335/225 |
| TP22-2Y(L)2Y-100P05 | 100 | 1.5/0.059 | 22.35/0.88 | 595/400 |
| TP22-2Y(L)2Y-200P05 | 200 | 1.5/0.059 | 30.48/1.20 | 1108/745 |
| TP22-2Y(L)2Y-300P05 | 300 | 1.5/0.059 | 35.56/1.40 | 1622/1090 |
| TP22-2Y(L)2Y-400P05 | 400 | 1.5/0.059 | 40.64/1.60 | 2128/1430 |
| TP22-2Y(L)2Y-600P05 | 600 | 1.5/0.059 | 48.26/1.90 | 3154/2120 |
| TP22-2Y(L)2Y-900P05 | 900 | 1.5/0.059 | 58.42/2.30 | 4627/3110 |
0.63mm Conductor, 1.15mm Insulated Wire |
||||
| TP22-2Y(L)2Y-6P063 | 6 | 1.5/0.059 | 10.16/0.40 | 104/70 |
| TP22-2Y(L)2Y-12P063 | 12 | 1.5/0.059 | 12.45/0.49 | 164/110 |
| TP22-2Y(L)2Y-25P063 | 25 | 1.5/0.059 | 16.00/0.63 | 283/190 |
| TP22-2Y(L)2Y-50P063 | 50 | 1.5/0.059 | 22.86/0.90 | 484/325 |
| TP22-2Y(L)2Y-100P063 | 100 | 1.5/0.059 | 27.94/1.10 | 885/595 |
| TP22-2Y(L)2Y-200P063 | 200 | 1.5/0.059 | 35.56/1.40 | 1696/1140 |
0.9mm Conductor, 1.5mm Insulated Wire |
||||
| TP22-2Y(L)2Y-6P09 | 6 | 1.5/0.059 | 12.45/0.49 | 164/110 |
| TP22-2Y(L)2Y-12P09 | 12 | 1.5/0.059 | 15.75/0.62 | 268/180 |
| TP22-2Y(L)2Y-25P09 | 25 | 1.5/0.059 | 20.07/0.79 | 476/320 |
| TP22-2Y(L)2Y-50P09 | 50 | 1.5/0.059 | 27.94/1.10 | 878/590 |

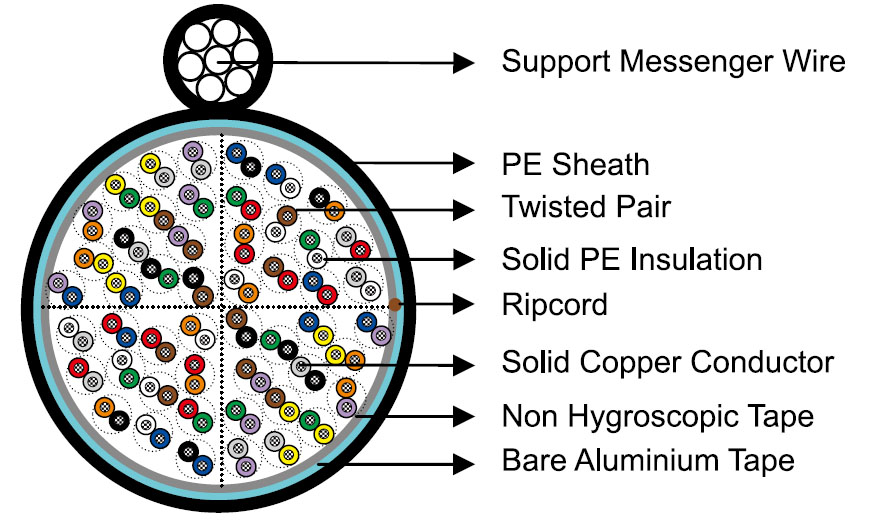

Fig 8 Solid PE Insulated & LAP Sheathed Air Core Cable to ICEA S-85-625 (formerly RUS (REA) PE-38)
| Cable Code | Number of Pairs |
Support Messenger Wire Diameter mm/inch |
Nominal Sheath Thickness mm/inch |
Nominal Overall Dimension d x D x H mm/inch |
Nominal Weight kg/km / lbs/kft |
| 0.4mm Conductor, 0.7mm Insulated Wire | |||||
TP38-2Y(L)2Y-3P04-SS |
3 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X8.0X20.0 / 0.36X0.315X0.787 |
245/165 |
TP38-2Y(L)2Y-5P04-SS |
5 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X8.5X20.5 / 0.36X0.335X0.807 |
250/168 |
TP38-2Y(L)2Y-6P04-SS |
6 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X9.0X21.0 / 0.36X0.354X0.827 |
260/175 |
TP38-2Y(L)2Y-10P04-SS |
10 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X9.5X21.5 / 0.36X0.374X0.846 |
270/181 |
TP38-2Y(L)2Y-12P04-SS |
12 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X10.0X22.0 / 0.36X0.394X0.866 |
280/188 |
TP38-2Y(L)2Y-15P04-SS |
15 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X10.5X22.5 / 0.36X0.413X0.886 |
290/195 |
TP38-2Y(L)2Y-20P04-SS |
20 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X11.0X23.5 / 0.36X0.433X0.925 |
310/208 |
TP38-2Y(L)2Y-25P04-SS |
25 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X12.0X24.0 / 0.36X0.472X0.945 |
330/222 |
TP38-2Y(L)2Y-30P04-SS |
30 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X12.5X24.5 / 0.36X0.492X0.965 |
350/235 |
TP38-2Y(L)2Y-40P04-SS |
40 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X13.5X25.5 / 0.36X0.531X1.000 |
390/262 |
TP38-2Y(L)2Y-50P04-SS |
50 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X14.5X26.5 / 0.36X0.571X1.040 |
410/276 |
TP38-2Y(L)2Y-75P04-SS |
75 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X16.5X28.5 / 0.36X0.650X1.120 |
490/329 |
TP38-2Y(L)2Y-100P04-SS |
100 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X18.0X30.0 / 0.36X0.709X1.180 |
570/383 |
TP38-2Y(L)2Y-150P04-SS |
150 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X21.0X33.0 / 0.36X0.827X1.300 |
730/491 |
TP38-2Y(L)2Y-200P04-SS |
200 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X23.5X36.0 / 0.36X0.925X1.420 |
880/591 |
TP38-2Y(L)2Y-300P04-SS |
300 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X27.5X39.5 / 0.36X1.080X1.560 |
1220/820 |
TP38-2Y(L)2Y-400P04-SS |
400 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.7X31.5X44.0 / 0.382X1.240X1.73 |
1490/1001 |
| 0.5mm Conductor, 0.9mm Insulated Wire | |||||
TP38-2Y(L)2Y-6P05-SS |
6 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X9.4X22.0 / 0.36X0.37X0.866 |
305/205 |
TP38-2Y(L)2Y-12P05-SS |
12 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X10.92X23.5 / 0.36X0.43X0.925 |
342/230 |
TP38-2Y(L)2Y-25P05-SS |
25 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X13.72X26.0 / 0.36X0.54X1.024 |
424/285 |
TP38-2Y(L)2Y-50P05-SS |
50 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X17.02X29.0 / 0.36X0.67X1.14 |
558/375 |
TP38-2Y(L)2Y-100P05-SS |
100 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X22.86X34.5 / 0.36X0.90X1.36 |
833/560 |
| 0.63mm Conductor, 1.15mm Insulated Wire | |||||
TP38-2Y(L)2Y-6P063-SS |
6 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X10.15X23.0 / 0.36X0.40X0.906 |
327/220 |
TP38-2Y(L)2Y-12P063-SS |
12 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X12.45X25.0 / 0.36X0.49X0.984 |
387/260 |
TP38-2Y(L)2Y-25P063-SS |
25 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X15.49X28.0 / 0.36X0.61X1.10 |
498/335 |
TP38-2Y(L)2Y-50P063-SS |
50 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X20.57X32.5 / 0.36X0.81X1.28 |
722/485 |
| 0.9mm Conductor, 1.5mm Insulated Wire | |||||
TP38-2Y(L)2Y-6P09-SS |
6 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X12.45X25.0 / 0.36X0.49X0.984 |
387/260 |
TP38-2Y(L)2Y-12P09-SS |
12 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X15.75X28.0 / 0.36X0.62X1.10 |
491/330 |
TP38-2Y(L)2Y-25P09-SS |
25 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X20.57X33.0 / 0.36X0.81X1.30 |
714/480 |
