Submersible Pump Cables for Oil Industry

Submersible Pump Cables Round Cables

400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable


Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

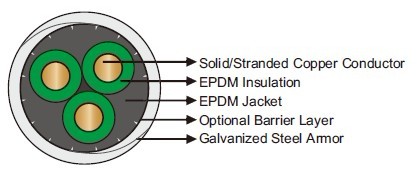

400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: EPDM insulation.
  • Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
  • Jacket: EPDM rubber.
  • Armor: Galvanized steel.

Dimensions and Weight:

3KV

Cable Type

Conductor Size

Conductor O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/kft

kg/km

QYEEY-204-3kV-3G10S

-

10

0.14

3.556

0.075

1.9

1.03

26.1

694

1032

QYEEY-204-3kV-3G6

6

13.3

0.162

4.115

0.075

1.9

1.09

27.8

798

1187

QYEEY-204-3kV-3G16S

-

16

0.178

4.521

0.075

1.9

1.14

29.0

880

1309

QYEEY-204-3kV-3G4

4

21.1

0.204

5.182

0.075

1.9

1.22

31.0

1024

1524

QYEEY-204-3kV-3G25S

-

25

0.222

5.639

0.075

1.9

1.27

32.3

1132

1685

QYEEY-204-3kV-3G2

2

33.6

0.258

6.553

0.075

1.9

1.38

35.1

1368

2036

QYEEY-204-3kV-3G1

1

42.4

0.289

7.341

0.075

1.9

1.47

37.4

1593

2370

QYEEY-204-3kV-3G1/0

1/0

53.5

0.368

9.347

0.075

1.9

1.71

43.4

2254

3354

QYEEY-204-3kV-3G2/0

2/0

67.4

0.414

10.516

0.075

1.9

1.84

46.8

2697

4014

5KV

Cable Type

Conductor Size

Conductor O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/kft

kg/km

QYEEY-204-5kV-3G10S

-

10

0.14

3.556

0.09

2.3

1.12

28.5

760

1131

QYEEY-204-5kV-3G6

6

13.3

0.162

4.115

0.09

2.3

1.19

30.2

867

1290

QYEEY-204-5kV-3G16S

-

16

0.178

4.521

0.09

2.3

1.24

31.4

950

1414

QYEEY-204-5kV-3G4

4

21.1

0.204

5.182

0.09

2.3

1.31

33.4

1097

1632

QYEEY-204-5kV-3G25S

-

25

0.222

5.639

0.09

2.3

1.37

34.7

1207

1796

QYEEY-204-5kV-3G2

2

33.6

0.258

6.553

0.09

2.3

1.47

37.4

1446

2152

QYEEY-204-5kV-3G1

1

42.4

0.289

7.341

0.09

2.3

1.57

39.8

1674

2491

QYEEY-204-5kV-3G1/0

1/0

53.5

0.368

9.347

0.09

2.3

1.80

45.7

2342

3485

QYEEY-204-5kV-3G2/0

2/0

67.4

0.414

10.516

0.09

2.3

1.94

49.2

2790

4152
