Submersible Pump Cables for Oil Industry

Submersible Pump Cables Flat Cables

400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable


Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

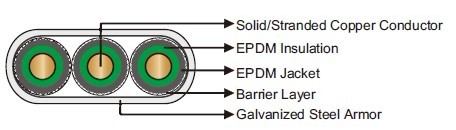

Construction

400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: EPDM insulation.
  • Jacket: EPDM rubber. Each insulated conductor should be individually jacketed or three conductors laid
    parallel within a common encapsulated jacket.
  • Barrier: Barrier tape and braid, used for fluid protection and hoop strength.
  • Armor: Galvanized steel.

Dimensions and Weight:

3KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/
kft

kg/
km

QYEE-204-3kV-3G10S

-

10

0.14

3.556

0.075

1.9

1.55×0.54

39.3×13.8

793

1180

QYEE-204-3kV-3G6

6

13.3

0.162

4.115

0.075

1.9

1.64×0.57

41.6×14.5

901

1341

QYEE-204-3kV-3G16S

-

16

0.178

4.521

0.075

1.9

1.70×0.59

43.3×15.1

985

1466

QYEE-204-3kV-3G4

4

21.1

0.204

5.182

0.075

1.9

1.81×0.63

46.0×16.0

1134

1688

QYEE-204-3kV-3G25S

-

25

0.222

5.639

0.075

1.9

1.89×0.66

47.9×16.6

1245

1853

QYEE-204-3kV-3G2

2

33.6

0.258

6.553

0.075

1.9

2.03×0.71

51.7×17.9

1487

2213

QYEE-204-3kV-3G1

1

42.4

0.289

7.341

0.075

1.9

2.16×0.75

54.9×19.0

1717

2555

QYEE-204-3kV-3G1/0

1/0

53.5

0.368

9.347

0.075

1.9

2.49×0.86

63.2×21.8

2390

3557

QYEE-204-3kV-3G2/0

2/0

67.4

0.414

10.516

0.075

1.9

2.68×0.92

68.1×23.4

2841

4229

5KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/
kft

kg/
km

QYEE-204-5kV-3G10S

-

10

0.14

3.556

0.09

2.3

1.68×0.59

42.6×14.9

865

1287

QYEE-204-5kV-3G6

6

13.3

0.162

4.115

0.09

2.3

1.77×0.62

44.9×15.6

975

1451

QYEE-204-5kV-3G16S

-

16

0.178

4.521

0.09

2.3

1.83×0.64

46.6×16.2

1061

1579

QYEE-204-5kV-3G4

4

21.1

0.204

5.182

0.09

2.3

1.94×0.67

49.3×17.1

1212

1804

QYEE-204-5kV-3G25S

-

25

0.222

5.639

0.09

2.3

2.02×0.70

51.2×17.7

1325

1971

QYEE-204-5kV-3G2

2

33.6

0.258

6.553

0.09

2.3

2.17×0.75

55.0×19.0

1570

2336

QYEE-204-5kV-3G1

1

42.4

0.289

7.341

0.09

2.3

2.29×0.79

58.3×20.1

1802

2682

QYEE-204-5kV-3G1/0

1/0

53.5

0.368

9.347

0.09

2.3

2.62×0.90

66.6×22.9

2483

3696

QYEE-204-5kV-3G2/0

2/0

67.4

0.414

10.516

0.09

2.3

2.81×0.96

71.4×24.5

2939

4374

Other conductor size can be offered upon request.
