Cat 5e F/UTP 24AWG

Cat 5e F/UTP 24AWG

Application
These Cat5e F/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.

Standards
 EN 50288
 ISO 11801
 IEC 61156-5
 IEC 60332-1
 IEC 60754-1/2
 IEC 61034

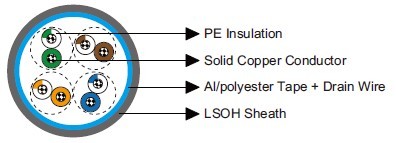

Construction
 Conductors: Solid bare copper conductor.
 Insulation: PE.
 Twinning: Two coloured insulated conductors twisted together to form a pair.
 Overall Screen: Al/polyester tape.
 Drain Wire: Tinned copper wire.
 Outer Sheath: LSOH.

Core Identification
Pair 1: White/Blue, Blue
Pair 2: White/Orange, Orange
Pair 3: White/Green, Green
Pair 4: White/Brown, Brown

Electrical Properties

Maximum Loop Resistance

Ω/km

190

Maximum Resistance Unbalance



2%

Minimum Insulation Resistance

MΩ.km

1000

Nominal Capacitance @800Hz

nF/km

48

Maximum Capacitance Unbalance (pair to ground)

pF/km

1500

Characteristic Impedance @1-100MHz

Ω

100 ± 15

Nominal Velocity of Propagation



ca. 67%

Maximum Propagation Delay

ns/100 m

535

Maximum Delay Skew

ns/100 m

20

Maximum Transfer Impedance @1MHz

mΩ /m

50

Maximum Transfer Impedance @10MHz

mΩ /m

100

Maximum Transfer Impedance @30MHz

mΩ /m

200

Minimum Coupling Attenuation

dB

55

Nominal Transmission Characteristics @20℃

F

Attenuation

NEXT

PS-NEXT

ACR

PS-ACR

ELFEXT

PS-ELFEXT

Return Loss

MHz

dB/100m

dB

dB

dB/100m

dB/100m

dB/100m

dB/100m

dB

1

1.9

71

68

69.1

66.1

68

65

20

4

3.7

62

59

58.3

55.3

56

53

23

10

6.0

56

53

50

47.0

48

45

25

16

7.6

53

50

45.4

42.4

44

41

25

20

8.5

51

48

42.5

39.5

42

39

25

31.2

10.7

49

46

38.3

35.3

38

35

24

62.5

15.7

44

41

28.2

25.3

32

29

22

100

19.8

41

38

21.2

18.2

28

25

20

125.0

22.3

40

37

17.7

14.7

26

23

19

155.5

24.2

38

35

13.8

10.8

24

21



175.0

25.7

37

34

11.3

8.3

23

20



200.0

27.5

36

33

8.5

5.5

22

19



250.0

29.2

35

32

5.8

2.8

20

17



300.0

32.0

34

31

2.0

-1.0

16

13



Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -20℃ ~ +60℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal
Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MLN-F/UTPCAT5E4P24

4×2×24AWG

0.25

0.75

6.97

54
