XLPE Insulated, PVC Sheathed, Individual & Overall Screened, Armoured
Instrumentation Cables (Multitriple)
RE-2X(St)YSWAY-TiMF 70°C / 300 V
APPLICATION:
EN 50228-7 cables are used for transmission of analogue and digital signals in instrument and control systems; allowed for use
in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low
impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outdoor installation, on racks, trays, in conduits, in dry and wet
locations; not for direct burial.
Recommended for use as fire protection measure for people and important material assets.
STANDARDS
Basic design to EN50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

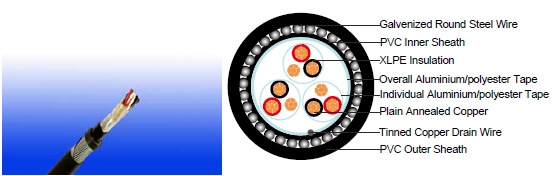

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact
with tinned copper drain wire, 0.5mm²
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner Sheath: Thermoplastic PVC compound
Armour: Galvenized round steel wire, EN 10257-1
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc)
depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also
be provided upon request.
COLOUR CODE
Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
Electrical PROPERTIES
| Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
| Insulation thickness (nominal) |
mm |
0.4 |
0.4 |
0.4 |
0.45 |
0.45 |
| Conductor resistance (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
| Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
| Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
| Inductance |
mH/km(Max.) |
1 |
| Capacitance unbalance(1 kHz) |
pF/500 m (Max.) |
500 |
| L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
| Operating voltage UrmsV |
300 |
| Test Voltage |
Core to Core |
V |
1500 |
| Core to Screen |
V |
1500 |
CONSTRUCTION PARAMETERS
| Caledonian Cable Code |
RE-2X(St)YSWAY-TiMF |
| No. of Triples x3xCross Section |
Nominal Insulation Thick -ness |
Nominal Inner Sheath Thick -ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 0.5mm2, Multi-striple |
| RE-2X(St)YSWAY-TiMF 2T0.5 |
2x3x0.5 |
0.35 |
1.0 |
9.7 |
0.9 |
1.4 |
14.3 |
363 |
| RE-2X(St)YSWAY-TiMF 4T0.5 |
4x3x0.5 |
0.35 |
1.0 |
11.1 |
0.9 |
1.4 |
15.7 |
456 |
| RE-2X(St)YSWAY-TiMF 5T0.5 |
5x3x0.5 |
0.35 |
1.1 |
12.4 |
0.9 |
1.5 |
17.2 |
516 |
| RE-2X(St)YSWAY-TiMF 6T0.5 |
6x3x0.5 |
0.35 |
1.1 |
14.0 |
0.9 |
1.5 |
18.8 |
611 |
| RE-2X(St)YSWAY-TiMF 8T0.5 |
8x3x0.5 |
0.35 |
1.1 |
14.9 |
0.9 |
1.5 |
19.7 |
766 |
| RE-2X(St)YSWAY-TiMF 10T0.5 |
10x3x0.5 |
0.35 |
1.2 |
17.0 |
1.25 |
1.6 |
22.7 |
950 |
| RE-2X(St)YSWAY-TiMF 12T0.5 |
12x3x0.5 |
0.35 |
1.2 |
17.6 |
1.25 |
1.6 |
23.3 |
975 |
| RE-2X(St)YSWAY-TiMF 16T0.5 |
16x3x0.5 |
0.35 |
1.3 |
20.1 |
1.25 |
1.7 |
26.0 |
1169 |
| RE-2X(St)YSWAY-TiMF 20T0.5 |
20x3x0.5 |
0.35 |
1.4 |
22.3 |
1.25 |
1.7 |
28.2 |
1365 |
| RE-2X(St)YSWAY-TiMF 24T0.5 |
24x3x0.5 |
0.35 |
1.5 |
24.4 |
1.25 |
1.8 |
30.5 |
1604 |
| 0.75mm2, Multi-striple |
| RE-2X(St)YSWAY-TiMF 2T0.75 |
2x3x0.75 |
0.38 |
1.0 |
10.6 |
0.9 |
1.4 |
15.2 |
408 |
| RE-2X(St)YSWAY-TiMF 4T0.75 |
4x3x0.75 |
0.38 |
1.1 |
12.4 |
0.9 |
1.5 |
17.2 |
521 |
| RE-2X(St)YSWAY-TiMF 5T0.75 |
5x3x0.75 |
0.38 |
1.1 |
13.7 |
0.9 |
1.5 |
18.5 |
590 |
| RE-2X(St)YSWAY-TiMF 6T0.75 |
6x3x0.75 |
0.38 |
1.1 |
15.4 |
0.9 |
1.5 |
20.2 |
819 |
| RE-2X(St)YSWAY-TiMF 8T0.75 |
8x3x0.75 |
0.38 |
1.2 |
16.7 |
0.9 |
1.6 |
21.7 |
941 |
| RE-2X(St)YSWAY-TiMF 10T0.75 |
10x3x0.75 |
0.38 |
1.3 |
19.0 |
1.25 |
1.6 |
24.7 |
1103 |
| Caledonian Cable Code |
RE-2X(St)YSWAY-TiMF |
|
|
| No. of Triples x3xCross Section |
Nominal Insulation Thick -ness |
Nominal Inner Sheath Thick -ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| RE-2X(St)YSWAY-TiMF 12T0.75 |
12x3x0.75 |
0.38 |
1.3 |
19.7 |
1.25 |
1.7 |
25.6 |
1176 |
| RE-2X(St)YSWAY-TiMF 16T0.75 |
16x3x0.75 |
0.38 |
1.4 |
22.5 |
1.25 |
1.7 |
28.4 |
1439 |
| RE-2X(St)YSWAY-TiMF 20T0.75 |
20x3x0.75 |
0.38 |
1.5 |
24.9 |
1.25 |
1.8 |
31.0 |
1804 |
| RE-2X(St)YSWAY-TiMF 24T0.75 |
24x3x0.75 |
0.38 |
1.6 |
27.2 |
1.25 |
1.9 |
33.5 |
2164 |
| 1.0mm2, Multi-striple |
| RE-2X(St)YSWAY-TiMF 2T1.0 |
2x3x1 |
0.4 |
1.0 |
11.5 |
0.9 |
1.4 |
16.1 |
447 |
| RE-2X(St)YSWAY-TiMF 4T1.0 |
4x3x1 |
0.4 |
1.1 |
13.4 |
0.9 |
1.5 |
18.2 |
579 |
| RE-2X(St)YSWAY-TiMF 5T1.0 |
5x3x1 |
0.4 |
1.1 |
14.8 |
0.9 |
1.5 |
19.6 |
688 |
| RE-2X(St)YSWAY-TiMF 6T1.0 |
6x3x1 |
0.4 |
1.2 |
16.9 |
0.9 |
1.5 |
21.7 |
913 |
| RE-2X(St)YSWAY-TiMF 8T1.0 |
8x3x1 |
0.4 |
1.2 |
18.1 |
1.25 |
1.6 |
23.8 |
1033 |
| RE-2X(St)YSWAY-TiMF 10T1.0 |
10x3x1 |
0.4 |
1.3 |
20.7 |
1.25 |
1.7 |
26.6 |
1277 |
| RE-2X(St)YSWAY-TiMF 12T1.0 |
12x3x1 |
0.4 |
1.3 |
21.4 |
1.25 |
1.7 |
27.3 |
1380 |
| RE-2X(St)YSWAY-TiMF 16T1.0 |
16x3x1 |
0.4 |
1.4 |
24.4 |
1.25 |
1.7 |
30.3 |
1686 |
| RE-2X(St)YSWAY-TiMF 20T1.0 |
20x3x1 |
0.4 |
1.5 |
27.1 |
1.25 |
1.8 |
33.2 |
2200 |
| RE-2X(St)YSWAY-TiMF 24T1.0 |
24x3x1 |
0.4 |
1.6 |
29.6 |
1.6 |
1.9 |
36.6 |
2504 |
| 1.3mm2, Multi-striple |
| RE-2X(St)YSWAY-TiMF 2T1.3 |
2x3x1,3 |
0.45 |
1.1 |
12.8 |
0.9 |
1.5 |
17.6 |
532 |
| RE-2X(St)YSWAY-TiMF 4T1.3 |
4x3x1,3 |
0.45 |
1.1 |
14.7 |
0.9 |
1.5 |
19.5 |
684 |
| RE-2X(St)YSWAY-TiMF 5T1.3 |
5x3x1,3 |
0.45 |
1.2 |
16.5 |
0.9 |
1.6 |
21.5 |
924 |
| RE-2X(St)YSWAY-TiMF 6T1.3 |
6x3x1,3 |
0.45 |
1.3 |
18.8 |
1.25 |
1.6 |
24.5 |
1089 |
| RE-2X(St)YSWAY-TiMF 8T1.3 |
8x3x1,3 |
0.45 |
1.3 |
20.1 |
1.25 |
1.7 |
26.0 |
1249 |
| RE-2X(St)YSWAY-TiMF 10T1.3 |
10x3x1,3 |
0.45 |
1.4 |
23.0 |
1.25 |
1.8 |
29.1 |
1482 |
| RE-2X(St)YSWAY-TiMF 12T1.3 |
12x3x1,3 |
0.45 |
1.5 |
24.0 |
1.25 |
1.8 |
30.1 |
1592 |
| RE-2X(St)YSWAY-TiMF 16T1.3 |
16x3x1,3 |
0.45 |
1.6 |
27.4 |
1.25 |
1.9 |
33.7 |
2222 |
| RE-2X(St)YSWAY-TiMF 20T1.3 |
20x3x1,3 |
0.45 |
1.7 |
30.4 |
1.6 |
2.0 |
37.6 |
2592 |
| RE-2X(St)YSWAY-TiMF 24T1.3 |
24x3x1,3 |
0.45 |
1.8 |
33.1 |
1.6 |
2.0 |
40.3 |
2957 |
| 1.5mm2, Multi-striple |
| RE-2X(St)YSWAY-TiMF 2T1.5 |
2x3x1,5 |
0.45 |
1.1 |
13.2 |
0.9 |
1.5 |
18.0 |
531 |
| Caledonian Cable Code |
RE-2X(St)YSWAY-TiMF |
| No. of Triples x3xCross Section |
Nominal Insulation Thick -ness |
Nominal Inner Sheath Thick -ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| RE-2X(St)YSWAY-TiMF 4T1.5 |
4x3x1,5 |
0.45 |
1.2 |
15.4 |
0.9 |
1.5 |
20.2 |
817 |
| RE-2X(St)YSWAY-TiMF 5T1.5 |
5x3x1,5 |
0.45 |
1.2 |
17.1 |
1.25 |
1.6 |
22.8 |
998 |
| RE-2X(St)YSWAY-TiMF 6T1.5 |
6x3x1,5 |
0.45 |
1.3 |
19.5 |
1.25 |
1.6 |
25.2 |
1162 |
| RE-2X(St)YSWAY-TiMF 8T1.5 |
8x3x1,5 |
0.45 |
1.4 |
21.1 |
1.25 |
1.7 |
27.0 |
1304 |
| RE-2X(St)YSWAY-TiMF 10T1.5 |
10x3x1,5 |
0.45 |
1.5 |
24.1 |
1.25 |
1.8 |
30.2 |
1541 |
| RE-2X(St)YSWAY-TiMF 12T1.5 |
12x3x1,5 |
0.45 |
1.5 |
24.9 |
1.25 |
1.8 |
31.0 |
1952 |
| RE-2X(St)YSWAY-TiMF 16T1.5 |
16x3x1,5 |
0.45 |
1.6 |
28.4 |
1.6 |
1.9 |
35.4 |
2384 |
| RE-2X(St)YSWAY-TiMF 20T1.5 |
20x3x1,5 |
0.45 |
1.7 |
31.6 |
1.6 |
2.0 |
38.8 |
2795 |
| RE-2X(St)YSWAY-TiMF 24T1.5 |
24x3x1,5 |
0.45 |
1.8 |
34.4 |
1.6 |
2.1 |
41.8 |
3093 |
Note : Other conductor sizes & core configurations are available upon request.
