PE Insulated, PVC Sheathed, Individual and Overall Screened & Armoured
Instrumentation Cables (Multipair)
RE-2Y(St)YSWAY PiMF 90°C / 300V
APPLICATION
EN 50288-7 cables are used for transmission of analogue and digital signals in instrument and control systems; allowed for use
in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low
impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outdoor installation, on racks, trays, in conduits, in dry and wet
locations; not for direct burial.
Recommended for use as fire protection measure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

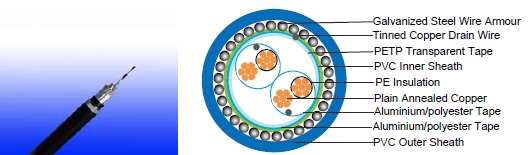

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound as per EN 50290. 2-23.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in
contact with tinned copper drain wire, 0.5mm²
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in
contact with tinned copper drain wire, 0.5mm²
Inner Sheath: PVC compound as per EN 50290-2-22.
Amouring: Galvanized steel wire armour
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc)
depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also
be provided upon request.
COLOUR CODE
Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
Electrical PROPERTIES
| Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
| Insulation thickness (nominal) |
mm |
0.4 |
0.4 |
0.4 |
0.45 |
0.45 |
| Conductor resistance (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
| Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
| Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
| Inductance |
mH/km (Max.) |
1 |
| L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
| Operating voltage Urms |
V |
300 |
| Test Voltage |
Core to Core |
V |
1500 |
| Core to Screen |
V |
1500 |
CONSTRUCTION PARAMETERS
| Caledonian Cable Code |
RE-2Y(St)YSWAY PiMF |
| No. of Pairsx2 xCross Section |
Nominal Insulation Thick -ness |
Nominal Inner Sheath Thick -ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x2xmm2 |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 0.5mm2, Multipair |
| RE-2Y(St)YSWAY PiMF 2P0.5 |
2x2x0.5 |
0.35 |
0.9 |
8.7 |
0.9 |
1.4 |
13.3 |
311 |
| RE-2Y(St)YSWAY PiMF 4P0.5 |
4x2x0.5 |
0.35 |
1.0 |
10.2 |
0.9 |
1.4 |
14.8 |
374 |
| RE-2Y(St)YSWAY PiMF 5P0.5 |
5x2x0.5 |
0.35 |
1.0 |
11.2 |
0.9 |
1.4 |
15.8 |
451 |
| RE-2Y(St)YSWAY PiMF 6P0.5 |
6x2x0.5 |
0.35 |
1.0 |
12.1 |
0.9 |
1.6 |
16.9 |
484 |
| RE-2Y(St)YSWAY PiMF 8P0.5 |
8x2x0.5 |
0.35 |
1.1 |
13.1 |
0.9 |
1.6 |
17.9 |
563 |
| RE-2Y(St)YSWAY PiMF 10P0.5 |
10x2x0.5 |
0.35 |
1.2 |
15.1 |
0.9 |
1.5 |
19.9 |
782 |
| RE-2Y(St)YSWAY PiMF 12P0.5 |
12x2x0.5 |
0.35 |
1.2 |
15.7 |
0.9 |
1.5 |
20.5 |
804 |
| RE-2Y(St)YSWAY PiMF 16P0.5 |
16x2x0.5 |
0.35 |
1.2 |
17.8 |
1.25 |
1.6 |
23.5 |
970 |
| RE-2Y(St)YSWAY PiMF 20P0.5 |
20x2x0.5 |
0.35 |
1.3 |
19.7 |
1.25 |
1.7 |
25.6 |
1145 |
| RE-2Y(St)YSWAY PiMF 24P0.5 |
24x2x0.5 |
0.35 |
1.4 |
21.5 |
1.25 |
1.7 |
27.4 |
1272 |
| 0.75mm2, Multipair |
| RE-2Y(St)YSWAY PiMF 2P0.75 |
2x2x0.75 |
0.38 |
1.0 |
9.7 |
0.9 |
1.4 |
14.3 |
342 |
| RE-2Y(St)YSWAY PiMF 4P0.75 |
4x2x0.75 |
0.38 |
1.0 |
11.2 |
0.9 |
1.4 |
15.8 |
439 |
| RE-2Y(St)YSWAY PiMF 5P0.75 |
5x2x0.75 |
0.38 |
1.1 |
12.5 |
0.9 |
1.5 |
17.3 |
498 |
| RE-2Y(St)YSWAY PiMF 6P0.75 |
6x2x0.75 |
0.38 |
1.1 |
13.6 |
0.9 |
1.5 |
18.4 |
565 |
| RE-2Y(St)YSWAY PiMF 8P0.75 |
8x2x0.75 |
0.38 |
1.1 |
14.4 |
0.9 |
1.5 |
19.2 |
639 |
| RE-2Y(St)YSWAY PiMF 10P0.75 |
10x2x0.75 |
0.38 |
1.2 |
16.6 |
1.25 |
1.6 |
22.3 |
878 |
| RE-2Y(St)YSWAY PiMF 12P0.75 |
12x2x0.75 |
0.38 |
1.2 |
17.4 |
1.25 |
1.6 |
23.1 |
944 |
| RE-2Y(St)YSWAY PiMF 16P0.75 |
16x2x0.75 |
0.38 |
1.3 |
19.8 |
1.25 |
1.7 |
25.7 |
1132 |
| Caledonian Cable Code |
RE-2Y(St)YSWAY PiMF |
| No. of Pairsx2 xCross Section |
Nominal Insulation Thick -ness |
Nominal Inner Sheath Thick -ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x2xmm2 |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
| RE-2Y(St)YSWAY PiMF 20P0.75 |
20x2x0.75 |
0.38 |
1.4 |
22.0 |
1.25 |
1.7 |
27.9 |
1329 |
| RE-2Y(St)YSWAY PiMF 24P0.75 |
24x2x0.75 |
0.38 |
1.5 |
24.0 |
1.25 |
1.8 |
30.1 |
1488 |
| 1.0mm2, Multipair |
| RE-2Y(St)YSWAY PiMF 2P1.0 |
2x2x1.0 |
0.4 |
1.0 |
10.4 |
0.9 |
1.4 |
15.0 |
377 |
| RE-2Y(St)YSWAY PiMF 4P1.0 |
4x2x1.0 |
0.4 |
1.0 |
12.1 |
0.9 |
1.4 |
16.7 |
502 |
| RE-2Y(St)YSWAY PiMF 5P1.0 |
5x2x1.0 |
0.4 |
1.1 |
13.5 |
0.9 |
1.5 |
18.3 |
567 |
| RE-2Y(St)YSWAY PiMF 6P1.0 |
6x2x1.0 |
0.4 |
1.1 |
14.7 |
0.9 |
1.5 |
19.5 |
658 |
| RE-2Y(St)YSWAY PiMF 8P1.0 |
8x2x1.0 |
0.4 |
1.2 |
15.8 |
0.9 |
1.5 |
20.6 |
865 |
| RE-2Y(St)YSWAY PiMF 10P1.0 |
10x2x1.0 |
0.4 |
1.2 |
18.0 |
1.25 |
1.6 |
23.7 |
994 |
| RE-2Y(St)YSWAY PiMF 12P1.0 |
12x2x1.0 |
0.4 |
1.3 |
19.0 |
1.25 |
1.7 |
24.7 |
1112 |
| RE-2Y(St)YSWAY PiMF 16P1.0 |
16x2x1.0 |
0.4 |
1.3 |
21.5 |
1.25 |
1.7 |
27.4 |
1363 |
| RE-2Y(St)YSWAY PiMF 20P1.0 |
20x2x1.0 |
0.4 |
1.4 |
23.9 |
1.25 |
1.7 |
29.8 |
1512 |
| RE-2Y(St)YSWAY PiMF 24P1.0 |
24x2x1.0 |
0.4 |
1.5 |
26.1 |
1.25 |
1.8 |
32.2 |
1996 |
| 1.3mm2, Multipair |
| RE-2Y(St)YSWAY PiMF 2P1.3 |
2x2x1.3 |
0.45 |
1.0 |
11.4 |
0.9 |
1.4 |
16.0 |
452 |
| RE-2Y(St)YSWAY PiMF 4P1.3 |
4x2x1.3 |
0.45 |
1.1 |
13.4 |
0.9 |
1.5 |
18.2 |
577 |
| RE-2Y(St)YSWAY PiMF 5P1.3 |
5x2x1.3 |
0.45 |
1.1 |
14.8 |
0.9 |
1.5 |
19.6 |
647 |
| RE-2Y(St)YSWAY PiMF 6P1.3 |
6x2x1.3 |
0.45 |
1.2 |
16.3 |
0.9 |
1.6 |
21.3 |
858 |
| RE-2Y(St)YSWAY PiMF 8P1.3 |
8x2x1.3 |
0.45 |
1.3 |
17.6 |
1.25 |
1.6 |
23.3 |
982 |
| RE-2Y(St)YSWAY PiMF 10P1.3 |
10x2x1.3 |
0.45 |
1.3 |
20.0 |
1.25 |
1.7 |
25.9 |
1153 |
| RE-2Y(St)YSWAY PiMF 12P1.3 |
12x2x1.3 |
0.45 |
1.4 |
21.1 |
1.25 |
1.7 |
27.0 |
1287 |
| RE-2Y(St)YSWAY PiMF 16P1.3 |
16x2x1.3 |
0.45 |
1.5 |
24.1 |
1.25 |
1.8 |
30.2 |
1564 |
| RE-2Y(St)YSWAY PiMF 20P1.3 |
20x2x1.3 |
0.45 |
1.6 |
26.8 |
1.25 |
1.9 |
33.1 |
1960 |
| RE-2Y(St)YSWAY PiMF 24P1.3 |
24x2x1.3 |
0.45 |
1.7 |
29.2 |
1.25 |
2.0 |
36.4 |
2356 |
| 1.5mm2, Multipair |
| RE-2Y(St)YSWAY PiMF 2P1.5 |
2x2x1.5 |
0.45 |
1.0 |
11.8 |
0.9 |
1.5 |
16.6 |
475 |
| RE-2Y(St)YSWAY PiMF 4P1.5 |
3x2x1.5 |
0.45 |
1.1 |
13.9 |
0.9 |
1.5 |
18.7 |
616 |
| Caledonian Cable Code |
RE-2Y(St)YSWAY PiMF |
|
| No. of Pairsx2 xCross Section |
Nominal Insulation Thick -ness |
Nominal Inner Sheath Thick -ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x2xmm2 |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
| RE-2Y(St)YSWAY PiMF 5P1.5 |
4x2x1.5 |
0.45 |
1.2 |
15.5 |
0.9 |
1.5 |
20.3 |
819 |
| RE-2Y(St)YSWAY PiMF 6P1.5 |
5x2x1.5 |
0.45 |
1.2 |
16.9 |
1.25 |
1.6 |
22.6 |
941 |
| RE-2Y(St)YSWAY PiMF 8P1.5 |
8x2x1.5 |
0.45 |
1.3 |
18.2 |
1.25 |
1.7 |
24.1 |
1039 |
| RE-2Y(St)YSWAY PiMF 10P1.5 |
10x2x1.5 |
0.45 |
1.4 |
21.0 |
1.25 |
1.7 |
26.9 |
1242 |
| RE-2Y(St)YSWAY PiMF 12P1.5 |
12x2x1.5 |
0.45 |
1.4 |
21.9 |
1.25 |
1.7 |
27.8 |
1387 |
| RE-2Y(St)YSWAY PiMF 16P1.5 |
16x2x1.5 |
0.45 |
1.5 |
25.1 |
1.25 |
1.8 |
31.2 |
1935 |
| RE-2Y(St)YSWAY PiMF 20P1.5 |
20x2x1.5 |
0.45 |
1.6 |
27.8 |
1.25 |
1.9 |
34.8 |
2227 |
| RE-2Y(St)YSWAY PiMF 24P1.5 |
24x2x1.5 |
0.45 |
1.7 |
30.4 |
1.25 |
2.0 |
37.6 |
2545 |
Note : Other conductor sizes & core configurations are available upon request
