300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables (Single Core)

FFX300 05mRZ1-R (CU/MGT+XLPE/LSZH 300/500V Class 2)

FFX300 05mRZ1-R (CU/MGT+XLPE/LSZH 300/500V Class 2)

APPLICATION
These cables are designed for areas where the integrity of the electrical circuit is critical in maintaining
power supply. Applications can be found in emergency lightings, control and power circuits, power
stations, fire alarm systems, underground tunnels, lifts, escalators, and high-rise buildings.

STANDARDS
Basic design to IEC 60502-1

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
300/500 V

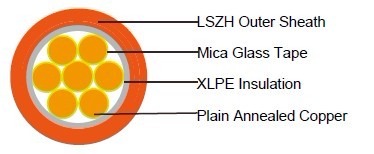

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Mica glass tape covered by extruded cross-linked XLPE compound
Earth Conductor(optional): Uninsulated solid or stranded tinned copper conductor.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 8 x Overall Diameter

Electrical PROPERTIES

Dielectric test:

2000 V r.m.s. x 5' (core/core)

Insulation resistance

1000 MΩ x km (at 20°C)

Short circuit temperature

250°C

CONSTRUCTION PARAMETERS

Conductor

FFX300 05mRZ1-R

Nominal Cross Section Area

No./ Nominal Diameter of trands

Nominal
Insulation
Thickness

Nominal
Sheath
Thickness

Without Earth Conductor
Nominal
Overall
Diameter		 Approx.
Weight

mm2

No./mm

mm

mm

mm

kg/km

1.5

7/0.53

0.5

0.5

4.4

29

2.5

7/0.67

0.5

0.5

4.9

40

4

7/0.85

0.5

0.5

5.5

55

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor
crosssection
area		 Reference Method 4
(enclosed in conduit
in thermally insulating
wall etc)		 Reference
Method 3
(enclosed in
conduit on a wall or in trunking
etc)		 Reference Method 1 (clipped direct) Reference Method 11 (on a perforated cable tray, horizontal or
vertical)		 Reference Method 12 (free air)
Horizontal flat spaced Vertical flat spaced Trefoil
  2 cables,
single-phase
a.c. or d.c.		 3 or 4
cables,
3-phase
a.c.		 2
cables,
single-		 3 or 4
cables,
3-phase
a.c.		 2 cables,
single-phase
a.c. or d.c. flat
and touching		 3 or 4
cables,
3-phase
a.c. flat
and
touching
or trefoil		 2 cables,
single
-phase a.c.
or d.c. or flat and touching		 3 or 4
cables,
3-phase
a.c. flat
and touching
or trefoil		 2 cables,
single-phase
a.c. or d.c. or 3 cables three
phase		 2 cables,
single-phase
a.c. or d.c. or
3 cables three
phase		 3 cables,
trefoil
3-phase
phase a.c.
phase a.c.
a.c. or
d.c

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

4

33

30

40

35

46

41

-

-

-

-

-

Voltage Drop (Per Amp Per Meter)

Nominal
Cross
Section
Area		 2 cables
d.c.		 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall)		 Ref. Methods 1
and 11 (clipped
direct or on trays
touching)		 Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall)		 Ref. Methods 1, Ref. Methods 1 and
11
11 and 12
(in trefoil)		 (Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16

4

33

12

10

10

10

10
