These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

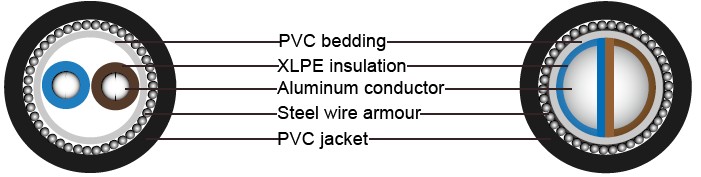

Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. | |
Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) | |
Colour Code | 1 Core : Brown | |
2 Cores : Brown or Blue | ||
3 Cores : Brown, Black, Grey | ||
4 Cores : Blue, Brown, Black, Grey | ||
5 Cores : Green/Yellow, Blue, Brown, Black, Grey | ||
Above 5 Cores : White Cores with black numbers | ||
Bedding | Single core | extruded layer of polymeric material |
Multicore | a) extruded layer of polymeric materia | |
b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above | ||
Armour | Single Core : AWA (Aluminum Wire Armour) | |
Multi Core : SWA (Steel Wire Armour) | ||
Outer Sheath | Extruded PVC, type 9 specified in BS7655 |
Voltage rating | 600/1000V |
Temperature rating | 0°C to +90°C |
Bending radius | 1.5mm² to 16mm² : 6 x overall diameter |
25mm² and above : 8 x overall diameter | |
Flame retardant | IEC60332 part 1, BS4066 part 1 |
Nominal Cross-sectional Area | Nominal Insulation thickness | Nominal Bedding thickness | Nominal Steel Wire Armor dia. | Armour strip | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox. Weight | |||
---|---|---|---|---|---|---|---|---|---|---|
thickness | width | Wire armor | Strip armor | |||||||
Extruded bedding | Taped bedding | |||||||||
mm² | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
2x16 | 0.7 | 0.8 | 1.25 | 0.6 | 2.4 | 1.5 | 19.1 | 19.1 | 17.8 | 650 |
2x25 | 0.9 | 0.8 | 1.25 | 0.6 | 2.4 | 1.5 | 22.4 | 22.4 | 21.1 | 915 |
2x25* | 0.9 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 18.7 | 18.7 | 17.4 | 1255 |
2x35 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.6 | 25.7 | 25.3 | 23.3 | 1255 |
2x35* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 21.4 | 21.0 | 19 | 1430 |
2x50* | 1.0 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 23.5 | 23.1 | 21.1 | 1430 |
2x70* | 1.1 | 1 | 1.6 | 1 | 3.6 | 1.9 | 26.3 | 25.9 | 24.7 | 1780 |
2x95* | 1.1 | 1.2 | 2.0 | 1 | 3.6 | 2 | 30 | 29.2 | 27.2 | 1950 |
*Solid shaped conductor (class 1)
