EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05SU
300/500 V - single core

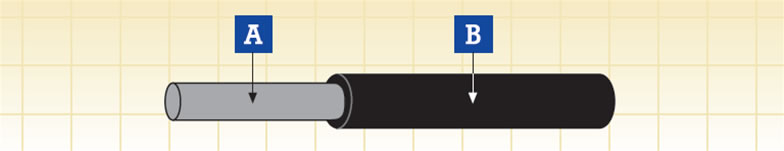

A.Conductor B.Insulation
Aanvraag
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Bouw
Dirigent
Tinned annealed copper wires as defined in EN 50306-2
Isolatie
LSZH special compound
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V |
| Maximum Conductor Temperature | +120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
| Bending Radius | 3 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to oil & fuel |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; | Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 | |
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 | Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 | Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Toxicity index |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
FRL-TW-05SU 300/500 V
Nominale dwars |
Aantal X nominale diameter van draad |
Diameter |
Isolatiedikte |
Algehele diameter |
Gewicht |
Weerbaarheid van de geleider op 20°C |
||
mm2 |
mm |
min |
max |
min |
min |
max |
max |
|
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
||
0.5 |
19 x 0.18 |
0.80 |
0.95 |
0.18 |
1.15 |
1.45 |
7 |
40.1 |
0.75 |
37 x 0.16(a) |
1.00 |
1.15 |
0.18 |
1.35 |
1.65 |
8 |
26.7 |
1.0 |
37 x 0.18(a) |
1.10 |
1.30 |
0.18 |
1.45 |
1.80 |
10 |
20.0 |
1.5 |
37 x 0.23(a) |
1.45 |
1.65 |
0.22 |
1.95 |
2.30 |
20 |
13.7 |
2.5 |
37 x 0.30(a) |
1.85 |
2.15 |
0.28 |
2.50 |
2.85 |
25 |
8.21 |
-This cable may be supplied in 19 strand conductor providing all product performance requirements in the specification are met
