Rollend materieel kabels

EN 50306 Thin Wall Instrumentation & Control Cable

FIREROL FRL-TW-05S-OS

300/500 V - single core screened

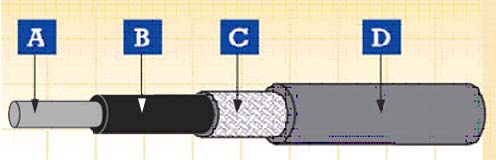

                             A.Conductor       B.Insulation         C.Screen                    D.Sheath

Aanvraag

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Bouw

Dirigent
Tinned annealed copper wires as defined in EN 50306-2

Isolatie
LSZH special compound

Overal scherm
Tinned annealed copper wires

Outer sheath
LSZH special compound (S1 & S2)

Electrical & Mechanical Properties

Nominal Voltage	300/500 V
Maximum Conductor Temperature	+120/+150 deg (fixed installation)
Minimum Permissible Ambient Temperature	-25/-40 deg (fixed installation)
Bending Radius	10 x Overall Diameter

Chemical & Environmental Properties

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to oil & fuel
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3C;	Fire propagation of bunched wires and cables;
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816	Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813	Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853	Toxicity index
NFF 16101; NFF 63808; BS6853	Smoke index

FRL-TW-05S-OS 300/500 V

Aantal kernen en de nominale dwarsdoorsnede	Minimale dikte van de sheath op elk punt	Algehele diameter		Gewicht
(mm2)	(mm)	min. (mm)	max. (mm)	(kg/km)
1 x 0.5	0.20	2.3	2.8	10
1 x 0.75	0.20	2.5	3.0	20
1 x 1	0.20	2.7	3.2	25
1 x 1.5	0.20	3.1	3.6	30
1 x 2.5	0.20	3.6	4.4	40
