H05V-K
Application and Description
These insulated wires are determined for installation to the inside of apparatus as well as for the protective
laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under
and surface mounting of plasters.
Standard and Approval
<HAR> HD 21.3 S3, VDE-0281 Part-3, CEI 20-20, CEI20-52,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

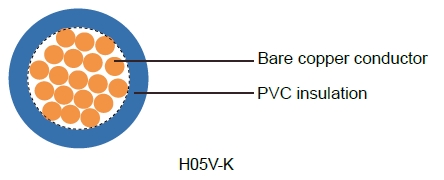

Cable Construction
- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Special PVC TI1 core insulation
- Cores to VDE-0293 colors on chart
Technical Characteristics
- Working voltage: 300/500v
- Test voltage: 2000 volts
- Flexing bending radius: 12.5 x Ø
- Static bending radius: 12.5 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -30º C to +80º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km

Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
|
1 x 0.5 |
0,6 |
2.1 |
4.9 |
10 |
18(24/32) |
1 x 0.75 |
0,6 |
2.4 |
7.2 |
13 |
17(32/32) |
1 x 1 |
0,6 |
2.6 |
9.6 |
15 |
|
