Central Loose Tube Ribbon Fiber Cable
Application
This cable can provide excellent transmission performance and protection of fibers in a variety of field environments. It is usually used in long haul communication system, subscriber network system, distribution, feeder network system and local area network system.
Description
Central loose tube cable contains one tube with 12 fiber ribbons, which is filled with water blocking gel. The fiber ribbon can be easily separated by hand tool. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. An optional ripcord can be put under the jacket to facilitate jacket removal.

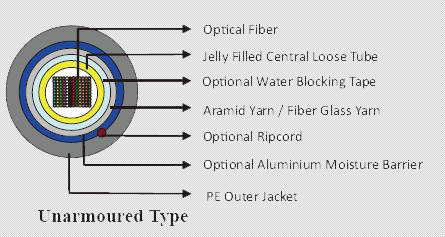

Construction
 |
 |
Propriétés physiques
Nombre fibres |
Poids nominal(kg/km) |
Poids nominal(lb/kft) |
Diamètre extérieur nominal(mm) |
Diamètre extérieur nominal(in) |
Maximum les tractions |
|
Installation(N/Ib) |
In Service(N/Ib) |
|||||
12-96 |
166.0 |
111.41 |
16.2 |
0.637 |
2670/600 |
890/200 |
108-144 |
208.0 |
139.60 |
18.5 |
0.727 |
2670/600 |
890/200 |
156-216 |
244.0 |
163.76 |
20.5 |
0.806 |
2670/600 |
890/200 |

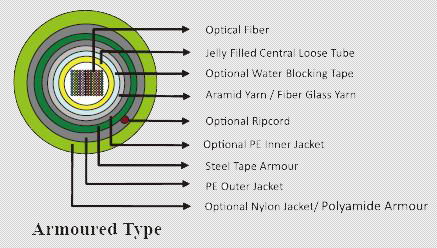

Construction
 |
 |
Propriétés physiques
Nombre fibres |
Poids nominal(kg/km) |
Poids nominal(lb/kft) |
Diamètre extérieur nominal(mm) |
Maximum les tractions |
|
Installation(N/Ib) |
In Service(N/Ib) |
||||
12-96 |
233.0 |
156.38 |
14.8 |
2670/600 |
890/200 |
108-144 |
276.0 |
185.23 |
16.1 |
2670/600 |
890/200 |
156-216 |
316.0 |
212.08 |
17.1 |
2670/600 |
890/200 |
Propriétés mécaniques
| Rayon de courbure minimum: | Force de compression maximale: | 3000N | |
| Under installation: | 20×OD | Repeated Impact: | 4.4 N.m (J) |
| During operation | 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD |
| 20×OD for armoured cables | Cyclic Flexing: | 25 cycles for armoured cables. | |
| Gamme de température: | 100 cycles for unarmoured cables. | ||
| Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) | Résistance à l'écrasement: | 263N/cm (150lb/in) |
| Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) |
Fiber Compliance
Température Cyclisme |
IEC60794-1-2-F2 |
Safety Compliance
General Purpose Grade |
Flammability Test: OFN (UL1581) |
Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade |
Flammability Test: IEC60332-1 |
LSZH Grade |
Halogen Content Test: IEC 60754-1 |
LSFROH Grade |
Halogen Content Test: IEC 60754-1 |
FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norme de conformité
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Fonctions
• Large fiber counts with small cable diameter
• Highly adaptable to mass splicing
• Suitable for installation in pipeline
• High quality jelly filled loose tube provides the ribbon fiber satisfactory mechanical and environmental protection.
• Ripcord allows easy jacket removal
• UV or moisture resistant for outdoor application
• Dry water blocking core design for ease of handling
