U-1000 ARVFV
应用及描述
U-1000 ARVFV，增加了铠装和护套，是U-1000 AR2V的增强版，在有机械保护的情况下适用于工业安装。电缆的构成及材料都符合IEC60502-1标准。
标准及认证

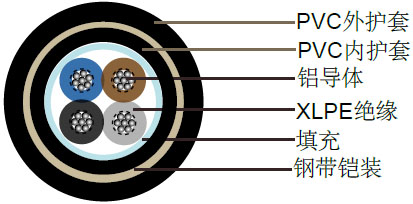

电缆结构
| 铝导体 |
| 遵循IEC 60228 cl-2 |
| 交联聚乙烯绝缘， 遵循NF C 32-321 |
| 色彩编码遵循HD 308 S2(NF C32-321) |
| 非纤维非吸湿性材料填充 |
| 聚氯乙烯内护套 |
| 两条钢带螺旋铠装 |
| 黑色聚氯乙烯外护套 |
技术特性
| 工作电压 |
600/1000V |
| 测试电压 |
1000V |
| 最小弯曲半径 |
6 × Ø |
| 工作温度范围 |
-10°C to 60°C |
| 短路时达到的最高温度 |
250°C |
| 阻燃 |
NF C 32-070 C2 |
| 绝缘电阻 |
20 MΩ x km |
电缆参数
| 线规 |
芯数 x 导体截面积 |
绝缘厚度 |
铠装厚度 |
最小护套
厚度 |
最大外径 |
近似电缆重量 |
| |
# x mm² |
mm |
mm |
mm |
mm |
kg/km |
| 8 |
2 x 10 |
0.7 |
0.2 |
1.4 |
18.5 |
420 |
| 6 |
2 x 16 |
0.7 |
0.2 |
1.5 |
20.5 |
540 |
| 4 |
2 x 25 |
0.9 |
0.2 |
1.6 |
24.5 |
760 |
| 2 |
2 x 35 |
0.9 |
0.2 |
1.7 |
27 |
930 |
| 8 |
3 x 10 |
0.7 |
0.2 |
1.5 |
19 |
470 |
| 6 |
3 x 16 |
0.7 |
0.2 |
1.5 |
22 |
590 |
| 4 |
3 x 25 |
0.9 |
0.2 |
1.6 |
26 |
830 |
| 2 |
3 x 35 |
0.9 |
0.2 |
1.7 |
29 |
1030 |
| 1 |
3 x 50 |
0.9 |
0.2 |
1.8 |
32.5 |
1290 |
| 2/0 |
3 x 70 |
1.1 |
0.2 |
2 |
37.5 |
1710 |
| 3/0 |
3 x 95 |
1.1 |
0.5 |
2.1 |
43.5 |
2610 |
| 4/0 |
3 x 120 |
1.2 |
0.5 |
2.3 |
47.5 |
3110 |
| 300MCM |
3 x 150 |
1.4 |
0.5 |
2.4 |
53 |
3770 |
| 500MCM |
3 x 185 |
1.6 |
0.5 |
2.5 |
58 |
4540 |
| 750MCM |
3 x 240 |
1.7 |
0.5 |
2.7 |
65.5 |
5620 |
| - |
3 x 300 |
1.8 |
0.5 |
2.9 |
72 |
6830 |
| 1 |
3 x 50 + 35 |
1.0/09 |
0.2 |
1.9 |
34.5 |
1500 |
| 2/0 |
3 x 70 + 50 |
1.1/0.9 |
0.2 |
2 |
40 |
2000 |
| 3/0 |
3 x 95 + 50 |
1.1/1.0 |
0.5 |
2.2 |
45 |
2870 |
| 4/0 |
3 x 120 + 70 |
1.2/1.1 |
0.5 |
2.3 |
50 |
3460 |
| 300MCM |
3 x 150 + 70 |
1.4/1.1 |
0.5 |
2.5 |
54 |
4090 |
| 500MCM |
3 x 185 + 70 |
1.6/1.1 |
0.5 |
2.6 |
59 |
4980 |
| 750MCM |
3 x 240 + 95 |
1.7/1.1 |
0.5 |
2.8 |
66 |
6210 |
| 8 |
4 x 10 |
0.7 |
0.2 |
1.5 |
20.5 |
540 |
| 6 |
4 x 16 |
0.7 |
0.2 |
1.6 |
23.5 |
700 |
| 4 |
4 x 25 |
0.9 |
0.2 |
1.7 |
28 |
1000 |
| 2 |
4 x 35 |
0.9 |
0.2 |
1.8 |
31.5 |
1230 |
| 1 |
4 x 50 |
1 |
0.2 |
1.9 |
35.5 |
1550 |
| 2/0 |
4 x 70 |
1.1 |
0.5 |
2.1 |
42.5 |
2490 |
| 3/0 |
4 x 95 |
1.1 |
0.5 |
2.3 |
47.5 |
3120 |
| 4/0 |
4 x 120 |
1.2 |
0.5 |
2.4 |
53 |
3780 |
| 300MCM |
4 x 150 |
1.4 |
0.5 |
2.6 |
58.5 |
4550 |
| 500MCM |
4 x 185 |
1.6 |
0.5 |
2.7 |
64.5 |
5490 |
| 750MCM |
4 x 240 |
1.7 |
0.5 |
2.9 |
72.5 |
6860 |
| - |
4 x 300 |
1.8 |
0.5 |
3.1 |
79.5 |
8250 |
| 8 |
5 x 10 |
0.7 |
0.2 |
1.6 |
22.5 |
640 |
| 6 |
5 x 16 |
0.7 |
0.2 |
1.8 |
26 |
820 |
| 4 |
5 x 25 |
0.9 |
0.2 |
1.8 |
31 |
1190 |
