638TQ(BS 7919)
应用及描述
此电缆可用于在干燥，潮湿的环境，浸入油或油脂中，耐各种气候条件以及中型机械压力的环境中，可用于工业或农业车间设备，大型锅炉，加热板，电动工具：如钻头，盘锯，电器，建筑上用的便携式电机和发电机。这些电缆也适用于固定设备，例如可以应用于风塔，其特殊的导体结构和所用材料很大的提高了电缆扭转力（最大150°/M），这对应用于风力发电机是至关重要的，可敷设于临时建筑的石灰或木架上，布线于电梯间等都。638TQ等同于欧共体标准的H07BN4-F。

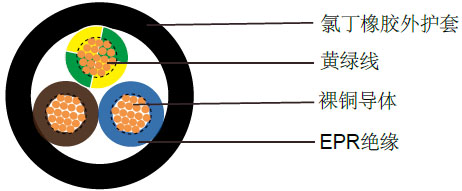

电缆结构
| - 多股柔软裸铜导体 |
| - 遵循BS 6360 Cl-5/IEC 60228 Cl-5 |
| - EPR(乙丙橡胶)绝缘, GP1，遵循BS 7655 |
| - CSP (氯磺化聚乙烯), RS4，遵循BS 7655，耐热，防油，阻燃 |
线芯颜色
| 1芯: 黑色 |
| 2芯: 棕色, 蓝色 |
| 3芯: 黄绿色, 棕色, 蓝色 |
| 4芯: 黄绿色, 棕色, 黑色, 灰色 |
| 5芯: 黄绿色, 蓝色, 棕色, 黑色, 灰色 |
| 6芯及以上: 白色绝缘加黑色数字标注 |
技术特性
| 工作电压 |
450/750V |
| 测试电压 |
2500V |
| 动态弯曲半径 |
6×外径 |
| 固定安装弯曲半径 |
4×外径 |
| 工作温度范围 |
-40º C～+90º C |
| 风能应用时的工作温度 |
-15º C～+90º C |
| 短路时可达到的温度 |
+250º C |
| 阻燃 |
IEC 60332.1C2/NF C 32-070 |
| 绝缘电阻 |
20 MΩ×km |
电缆参数
| 线规 |
芯数×导体截面积 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
| (股数/直径) |
#×mm² |
mm |
mm |
mm |
kg/km |
| 6381TQ |
| 16(30/30) |
1×1.5 |
0.8 |
1.4 |
5.9 |
50 |
| 14(50/30) |
1×2.5 |
0.9 |
1.4 |
6.5 |
65 |
| 12(56/28) |
1×4 |
1 |
1.5 |
7.8 |
105 |
| 10(84/28) |
1×6 |
1 |
1.6 |
9 |
130 |
| 8(80/26) |
1×10 |
1.2 |
1.8 |
10.8 |
200 |
| 6(128/26) |
1×16 |
1.2 |
1.9 |
12.1 |
275 |
| 4(200/26) |
1×25 |
1.4 |
2 |
14.1 |
400 |
| 2(280/26) |
1×35 |
1.4 |
2.2 |
15.9 |
520 |
| 1(400/26) |
1×50 |
1.6 |
2.4 |
18.5 |
730 |
| 2/0(356/24) |
1×70 |
1.6 |
2.6 |
21 |
980 |
| 3/0(485/24) |
1×95 |
1.8 |
2.8 |
23.9 |
1270 |
| 4/0(614/24) |
1×120 |
1.8 |
3 |
25.8 |
1570 |
| 300 MCM
(765/24) |
1×150 |
2 |
3.2 |
28.6 |
1960 |
| 350 MCM
(944/24) |
1×185 |
2.2 |
3.4 |
31.5 |
2380 |
| 500MCM(1225/24) |
1×240 |
2.4 |
3.5 |
35.1 |
3100 |
| -(1525/24) |
1×300 |
2.6 |
3.6 |
38.7 |
3790 |
| -(2013/24) |
1×400 |
2.8 |
3.8 |
43.5 |
4880 |
| -(1769/23) |
1×500 |
3 |
4 |
47.8 |
6070 |
| -(2257/23) |
1×630 |
3 |
4.1 |
51.5 |
7460 |
| 6382TQ |
| 17(32/32) |
2×1 |
0.8 |
1.3 |
8.2 |
93 |
| 16(30/30) |
2×1.5 |
0.8 |
1.5 |
9.3 |
118 |
| 14(50/30) |
2×2.5 |
0.9 |
1.7 |
10.9 |
172 |
| 12(56/28) |
2×4 |
1 |
1.8 |
13.2 |
275 |
| 10(84/28) |
2×6 |
1 |
2 |
15.6 |
370 |
| 8(80/26) |
2×10 |
1.2 |
3.1 |
20.6 |
690 |
| 6(128/26) |
2×16 |
1.2 |
3.3 |
23.3 |
910 |
| 4(200/26) |
2×25 |
1.4 |
3.6 |
27.4 |
1290 |
| 6383TQ |
| 17(32/32) |
3×1 |
0.8 |
1.4 |
8.9 |
114 |
| 16(30/30) |
3×1.5 |
0.8 |
1.6 |
10 |
144 |
| 14(50/30) |
3×2.5 |
0.9 |
1.8 |
11.7 |
210 |
| 12(56/28) |
3×4 |
1 |
1.9 |
14.1 |
335 |
| 10(84/28) |
3×6 |
1 |
2.1 |
16.6 |
450 |
| 8(80/26) |
3×10 |
1.2 |
3.3 |
22.1 |
835 |
| 6(128/26) |
3×16 |
1.2 |
3.5 |
24.8 |
1120 |
| 4(200/26) |
3×25 |
1.4 |
3.8 |
29.3 |
1600 |
| 2(280/26) |
3×35 |
1.4 |
4.1 |
32.9 |
2080 |
| 1(400/26) |
3×50 |
1.6 |
4.5 |
38.5 |
2890 |
| 2/0(356/24) |
3×70 |
1.6 |
4.8 |
43.6 |
3850 |
| 3/0(485/24) |
3×95 |
1.8 |
5.3 |
50 |
4970 |
| 4/0(614/24) |
3×120 |
1.8 |
5.6 |
53.9 |
6350 |
| 300 MCM
(765/24) |
3×150 |
2 |
6 |
59.9 |
7700 |
| 350 MCM
(944/24) |
3×185 |
2.2 |
6.4 |
65.9 |
9350 |
| 500MCM(1225/24) |
3×240 |
2.4 |
7.1 |
74.7 |
1200 |
| -(1525/24) |
3×300 |
2.6 |
7.7 |
83.2 |
14910 |
| 6384TQ |
| 17(32/32) |
4×1 |
0.8 |
1.5 |
9.8 |
139 |
| 16(30/30) |
4×1.5 |
0.8 |
1.7 |
11 |
177 |
| 14(50/30) |
4×2.5 |
0.9 |
1.9 |
12.8 |
257 |
| 12(56/28) |
4×4 |
1 |
2 |
15.5 |
420 |
| 10(84/28) |
4×6 |
1 |
2.3 |
18.5 |
565 |
| 8(80/26) |
4×10 |
1.2 |
3.4 |
24.1 |
1020 |
| 6(128/26) |
4×16 |
1.2 |
3.6 |
27.1 |
1380 |
| 4(200/26) |
4×25 |
1.4 |
4.1 |
32.5 |
2140 |
| 2(280/26) |
4×35 |
1.4 |
4.4 |
36.5 |
2610 |
| 1(400/26) |
4×50 |
1.6 |
4.8 |
42.6 |
3650 |
| 2/0(356/24) |
4×70 |
1.6 |
5.2 |
48.6 |
4880 |
| 3/0(485/24) |
4×95 |
1.8 |
5.9 |
56 |
6390 |
| 4/0(614/24) |
4×120 |
1.8 |
6 |
59.9 |
7750 |
| 300 MCM
(765/24) |
4×150 |
2 |
6.5 |
66.8 |
9780 |
| 350 MCM
(944/24) |
4×185 |
2.2 |
7 |
73.5 |
11900 |
| 500MCM(1225/24) |
4×240 |
2.4 |
7.7 |
83.2 |
15330 |
| -(1525/24) |
4×300 |
2.6 |
8.4 |
92.8 |
19030 |
| 6385TQ |
| 16(30/30) |
5×1.5 |
0.8 |
1.8 |
12.1 |
226 |
| 14(50/30) |
5×2.5 |
0.9 |
2 |
14.1 |
329 |
| 12(56/28) |
5×4 |
1 |
2.2 |
17.2 |
515 |
| 10(84/28) |
5×6 |
1 |
2.5 |
20.5 |
690 |
| 8(80/26) |
5×10 |
1.2 |
3.6 |
26.5 |
1240 |
| 6(128/26) |
5×16 |
1.2 |
3.9 |
30.1 |
1695 |
| 4(200/26) |
5×25 |
1.4 |
4.4 |
36.1 |
2470 |
| 2(280/26) |
5×35 |
1.4 |
4.7 |
40.5 |
3187 |
| 1(400/26) |
5×50 |
1.6 |
5.1 |
47.3 |
4450 |
| 2/0(356/24) |
5×70 |
1.6 |
5.6 |
54 |
5938 |
| 3/0(485/24) |
5×95 |
1.8 |
6.2 |
62 |
7924 |
| 6386TQ |
| 12(56/28) |
6×4 |
1 |
2.6 |
19.6 |
643 |
| 10(84/28) |
6×6 |
1 |
3 |
23.4 |
917 |
| 8(80/26) |
6×10 |
1.2 |
3.6 |
28.8 |
1420 |
| 6(128/26) |
6×16 |
1.2 |
3.9 |
32.7 |
1973 |
| 4(200/26) |
6×25 |
1.4 |
4.4 |
39.2 |
2921 |
| 2(280/26) |
6×35 |
1.4 |
4.7 |
44 |
3822 |
| 1(400/26) |
6×50 |
1.6 |
5.3 |
51.8 |
5337 |
| 6387TQ |
| 16(30/30) |
7×1.5 |
0.8 |
2.6 |
14.7 |
385 |
| 14(50/30) |
7×2.5 |
0.9 |
2.8 |
17.1 |
445 |
| 12(56/28) |
7×4 |
1 |
2.8 |
21.6 |
773 |
| 10(84/28) |
7×6 |
1 |
3.2 |
25.7 |
1089 |
| 8(80/26) |
7×10 |
1.2 |
3.8 |
31.6 |
1706 |
| 6(128/26) |
7×16 |
1.2 |
4 |
35.7 |
2330 |
| 4(200/26) |
7×25 |
1.4 |
4.7 |
43.2 |
3560 |
| 2(280/26) |
7×35 |
1.4 |
5 |
48.5 |
4576 |
| 1(400/26) |
7×50 |
1.6 |
5.7 |
57.4 |
6436 |
| 6388TQ |
| 12(56/28) |
8×4 |
17.3 |
3 |
23.5 |
908 |
| 63810TQ |
| 12(56/28) |
10×4 |
18.9 |
3.1 |
25.3 |
1073 |
| 63812TQ |
| 12(56/28) |
12×4 |
19.6 |
3.2 |
26.2 |
1183 |
| 63816TQ |
| 12(56/28) |
16×4 |
22.1 |
3.5 |
29.3 |
1505 |
| 63818TQ |
| 12(56/28) |
18×4 |
23.6 |
3.6 |
31 |
1687 |
| 63820TQ |
| 12(56/28) |
20×4 |
25.2 |
3.8 |
33 |
1902 |
