多芯+E聚氯乙烯绝缘，聚氯乙烯护套铠装控制电缆 0.6/1kV
应用及描述
多芯+E聚氯乙烯绝缘，聚氯乙烯护套铠装控制电缆 0.6/1kV电缆用于非封闭的控制电路，在商业，工业，矿业和电力系统等可能有机械损伤的环境中可敷设于管道，直埋或地下管道安装。
标准
- AS/NZS 5000.1
- AS/NZS 3008
- AS/NZS 1125

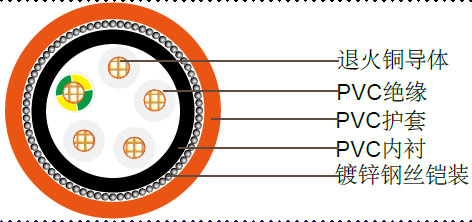

电缆结构
| 导体 |
退火铜 |
| 绝缘 |
聚氯乙烯 PVC V-90 |
| 绝缘颜色 |
白色(黑色加数字标注),黄绿色 |
| 护套 |
聚氯乙烯 PVC 5V-90 |
| 护套颜色 |
橘色,也可选择其他颜色 |
技术特性
| 导体截面积 |
额定电流 |
电气性能 |
| 暴露在空气中 |
直埋 |
埋于管道中 |
20°C时的最大直流电阻 |
75°C时的最大交流电阻 |
电抗 |
75°C时三相电的电压降 |
| mm² |
A |
A |
A |
Ohm/km |
Ohm/km |
Ohm/km |
mV/A |
| 1.5mm² |
| 2C+E |
18 |
14 |
22 |
13.6 |
16.5 |
0.111 |
33.0 |
| 3-50C+ E |
15 |
13 |
19 |
13.6 |
16.5 |
0.111 |
33.0 |
| 2.5mm² |
| 2C+E |
26 |
20 |
31 |
7.41 |
9.01 |
0.102 |
18.0 |
| 3-50C+ E |
22 |
18 |
26 |
7.41 |
9.01 |
0.102 |
18.0 |
电缆参数
| 芯数 |
导体股数/直径 |
标称绝缘厚度 |
标称接地线截面积 |
标称接地线绝缘厚度 |
内衬外径 |
铠装直径 |
标称线缆外径 |
电缆重量 |
| |
|
mm |
mm² |
mm |
mm |
mm |
mm |
kg/km |
| 1.5mm² |
| 2C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
9.0 |
0.90 |
14.5 |
405 |
| 3C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
9.8 |
0.90 |
15.4 |
440 |
| 4C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
10.7 |
0.90 |
16.3 |
550 |
| 6C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
11.7 |
0.90 |
17.3 |
690 |
| 8C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
13.6 |
1.25 |
19.9 |
770 |
| 10C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
14.9 |
1.25 |
21.2 |
920 |
| 12C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
16.2 |
1.25 |
22.5 |
1010 |
| 15C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
17.1 |
1.60 |
23.4 |
1110 |
| 20C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
19.0 |
1.60 |
26.0 |
1535 |
| 25C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
21.7 |
1.60 |
28.7 |
1670 |
| 30C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
23.5 |
1.60 |
30.4 |
1840 |
| 40C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
26.4 |
1.60 |
34.8 |
2260 |
| 50C+ E |
7/0.50 |
0.8 |
1.5 |
0.6 |
28.9 |
1.60 |
36.1 |
2400 |
| 2.5mm² |
| 2C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
10.0 |
0.90 |
11.6 |
210 |
| 3C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
10.9 |
0.90 |
12.6 |
250 |
| 4C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
12.0 |
0.90 |
13.7 |
285 |
| 6C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
13.1 |
1.25 |
14.8 |
365 |
| 8C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
15.3 |
1.25 |
18.4 |
455 |
| 10C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
16.8 |
1.25 |
19.9 |
530 |
| 12C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
18.3 |
1.60 |
20.0 |
605 |
| 15C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
19.3 |
1.60 |
21.0 |
715 |
| 20C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
21.5 |
1.60 |
25.7 |
950 |
| 25C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
24.6 |
1.60 |
26.3 |
1095 |
| 30C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
26.6 |
1.60 |
28.3 |
1200 |
| 40C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
30.4 |
2.0 |
33.5 |
1565 |
| 50C+ E |
7/0.67 |
0.8 |
2.5 |
0.7 |
33.3 |
2.0 |
35.0 |
1925 |
