应用
该电缆适合水下工作用于连接采捞船、浮动船坞，泵等，适合需要高机械强度的应用，亦可在水深小于500m的污水、咸水和苦咸水中使用。
标准
VDE 0250 Part 813

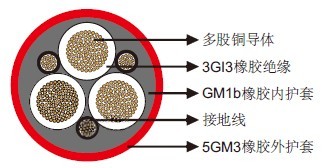

结构
导体：DIN VDE 0295标准class 5柔软多股镀锡铜导体。
内导体层：半导层。
绝缘：Type 3GI3橡胶。
外导体层：半导层。
接地线：分为3根分散于外层间隙或在单根芯线绝缘层外以同心方式分布（代码.../3E）或合并在一
起作为第四根芯线。
内护套：Type GM1b橡胶，具有防水和防止水泡形成的特性。
外护套：Type 5GM3防水橡胶。
尺寸和重量
1.8/3kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
38.6 |
41.6 |
2480 |
3×35+3×25/3 |
42.5 |
45.5 |
3090 |
3×50+3×25/3 |
46.0 |
49.0 |
3750 |
3×70+3×35/3 |
49.2 |
52.2 |
4620 |
3×95+3×50/3 |
57.2 |
61.2 |
6200 |
3×120+3×70/3 |
60.9 |
64.9 |
7390 |
3×150+3×70/3 |
66.3 |
70.3 |
8830 |
3×185+3×95/3 |
69.4 |
73.4 |
10170 |
3×25+3×16/3E |
41.3 |
44.3 |
1180 |
3×35+3×16/3E |
43.9 |
46.9 |
1650 |
3×50+3×25/3E |
47.8 |
50.8 |
2310 |
3×70+3×35/3E |
52.5 |
56.5 |
3220 |
3×95+3×50/3E |
59.4 |
63.4 |
4335 |
3×120+3×70/3E |
65.5 |
69.5 |
5480 |
3×150+3×70/3E |
69.2 |
73.2 |
6800 |
3×185+3×95/3E |
72.2 |
76.2 |
8375 |
3.6/6kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×16/16 |
47.0 |
52.0 |
3240 |
3×25/25 |
50.0 |
55.0 |
3870 |
3×35/35 |
55.0 |
55.0 |
4780 |
3×50/50 |
59.0 |
64.0 |
5700 |
3×70/70 |
64.0 |
70.0 |
7000 |
3×25+3×25/3 |
44.7 |
47.7 |
3120 |
3×35+3×25/3 |
47.3 |
50.3 |
3600 |
3×50+3×25/3 |
52.2 |
56.2 |
4560 |
3×70+3×35/3 |
55.5 |
59.5 |
5470 |
3×95+3×50/3 |
59.8 |
63.8 |
6570 |
3×120+3×70/3 |
65.3 |
69.3 |
8090 |
3×150+3×70/3 |
68.9 |
72.9 |
9250 |
3×185+3×95/3 |
72.0 |
76.0 |
10600 |
3×25+3×16/3E |
46.0 |
49.0 |
3160 |
3×35+3×16/3E |
48.6 |
51.6 |
3640 |
3×50+3×25/3E |
54.0 |
58.0 |
4600 |
3×70+3×35/3E |
57.2 |
61.2 |
5510 |
3×95+3×50/3E |
63.8 |
67.8 |
6610 |
3×120+3×70/3E |
68.1 |
72.1 |
8130 |
3×150+3×70/3E |
71.8 |
75.8 |
9290 |
3×185+3×95/3E |
76.6 |
80.6 |
10840 |
6/10 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×16/16 |
49.0 |
54.0 |
3450 |
3×25/25 |
54.0 |
59.0 |
4350 |
3×35/35 |
57.0 |
62.0 |
5050 |
3×25+3×25/3 |
46.4 |
49.4 |
3320 |
3×35+3×25/3 |
49.0 |
52.0 |
3810 |
3×50+3×25/3 |
54.0 |
58.0 |
4780 |
3×70+3×35/3 |
57.2 |
61.2 |
5700 |
3×95+3×50/3 |
61.5 |
65.5 |
6830 |
3×120+3×70/3 |
67.0 |
71.0 |
8360 |
3×150+3×70/3 |
70.7 |
74.7 |
9530 |
3×185+3×95/3 |
73.7 |
77.7 |
10890 |
3×25+3×16/3E |
47.8 |
50.8 |
3360 |
3×35+3×16/3E |
51.9 |
55.9 |
3850 |
3×50+3×25/3E |
55.5 |
59.5 |
4820 |
3×70+3×35/3E |
59.0 |
63.0 |
5740 |
3×95+3×50/3E |
65.5 |
69.5 |
6870 |
3×120+3×70/3E |
69.8 |
73.8 |
8400 |
3×150+3×70/3E |
73.5 |
77.5 |
9570 |
3×185+3×95/3E |
78.3 |
82.3 |
10930 |
8.7/15 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
52.7 |
56.7 |
4050 |
3×35+3×25/3 |
55.3 |
59.3 |
4650 |
3×50+3×25/3 |
58.7 |
62.7 |
5390 |
3×70+3×35/3 |
63.8 |
67.8 |
6740 |
3×95+3×50/3 |
68.1 |
72.1 |
7870 |
3×120+3×70/3 |
71.7 |
75.7 |
9150 |
3×150+3×70/3 |
77.2 |
81.2 |
10770 |
3×185+3×95/3 |
80.2 |
84.2 |
12310 |
3×25+3×16/3E |
54.0 |
58.0 |
4090 |
3×35+3×16/3E |
56.6 |
60.6 |
4690 |
3×50+3×25/3E |
60.3 |
64.3 |
5430 |
3×70+3×35/3E |
65.5 |
69.5 |
6780 |
3×95+3×50/3E |
70.3 |
74.3 |
7910 |
3×120+3×70/3E |
76.4 |
80.4 |
9190 |
3×150+3×70/3E |
80.1 |
84.1 |
10810 |
3×185+3×95/3E |
83.1 |
87.1 |
12350 |
12/20 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25/25 |
66,0 |
72.0 |
6140 |
3×35/35 |
69.0 |
75.0 |
6900 |
3×25+3×25/3 |
57.0 |
61.0 |
4690 |
3×35+3×25/3 |
59.6 |
63.6 |
5260 |
3×50+3×25/3 |
64.8 |
68.8 |
6380 |
3×70+3×35/3 |
68.1 |
72.1 |
7370 |
3×95+3×50/3 |
72.4 |
76.4 |
8600 |
3×120+3×70/3 |
77.9 |
81.9 |
10290 |
3×150+3×70/3 |
81.5 |
85.5 |
11560 |
3×185+3×95/3 |
84.3 |
89.3 |
13000 |
3×25+3×16/3E |
58.3 |
62.3 |
4730 |
3×35+3×16/3E |
60.9 |
64.9 |
5300 |
3×50+3×25/3E |
66.4 |
70.4 |
6420 |
3×70+3×35/3E |
69.8 |
73.8 |
7410 |
3×95+3×50/3E |
76.4 |
80.4 |
8640 |
3×120+3×70/3E |
80.7 |
84.7 |
10330 |
3×150+3×70/3E |
84.2 |
89.2 |
11600 |
3×185+3×95/3E |
89.0 |
94.0 |
13040 |
14/25 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×50/50 |
81.0 |
88.0 |
9600 |
3×70/70 |
86.0 |
93.0 |
11100 |
3×95/95 |
92.0 |
99.0 |
13020 |
3×25+3×25/3 |
64.4 |
68.4 |
5860 |
3×35+3×25/3 |
67.0 |
71.0 |
8390 |
3×50+3×25/3 |
70.4 |
74.4 |
7220 |
3×70+3×35/3 |
73.7 |
77.7 |
8720 |
3×95+3×50/3 |
79.8 |
83.8 |
9950 |
3×120+3×70/3 |
83.5 |
87.5 |
11380 |
3×150+3×70/3 |
88.7 |
93.7 |
13120 |
3×185+3×95/3 |
91.8 |
96.8 |
14770 |
3×25+3×16/3E |
65.7 |
69.7 |
5900 |
3×35+3×16/3E |
68.3 |
72.3 |
8430 |
3×50+3×25/3E |
72.0 |
76.0 |
7260 |
3×70+3×35/3E |
77.2 |
81.2 |
8760 |
3×95+3×50/3E |
82.0 |
86.0 |
9990 |
3×120+3×70/3E |
87.9 |
92.9 |
11420 |
3×150+3×70/3E |
91.6 |
96.6 |
13160 |
3×185+3×95/3E |
94.6 |
99.6 |
14810 |
18/30 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×70/70 |
93.0 |
100.0 |
12780 |
3×95/95 |
97.0 |
104.0 |
14350 |
3×25+3×25/3 |
69.6 |
73.6 |
7010 |
3×35+3×25/3 |
72.2 |
76.2 |
7440 |
3×50+3×25/3 |
77.4 |
81.4 |
8590 |
3×70+3×35/3 |
80.7 |
84.7 |
9670 |
3×95+3×50/3 |
84.8 |
89.8 |
11010 |
3×120+3×70/3 |
90.2 |
95.2 |
12890 |
3×150+3×70/3 |
93.9 |
98.9 |
14260 |
3×185+3×95/3 |
96.8 |
102.0 |
15780 |
3×25+3×16/3E |
70.9 |
74.9 |
7050 |
3×35+3×16/3E |
73.5 |
77.5 |
7490 |
3×50+3×25/3E |
79.0 |
83.0 |
8630 |
3×70+3×35/3E |
82.4 |
86.4 |
9710 |
3×95+3×50/3E |
88.8 |
93.8 |
11050 |
3×120+3×70/3E |
93.1 |
98.1 |
12930 |
3×150+3×70/3E |
96.8 |
101.8 |
14300 |
3×185+3×95/3E |
101.6 |
106.6 |
15820 |
20/35 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×70/70 |
102.0 |
110.0 |
14950 |
3×95/95 |
106.0 |
114.0 |
16540 |
3×95+3×50/3 |
95.0 |
102.0 |
13670 |
3×120+3×70/3 |
101.0 |
109.0 |
15760 |
