IEC 60092标准MariSig防火仪表&控制缆

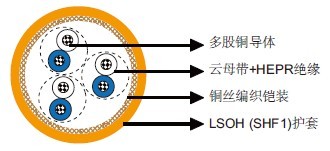

MRE-M2XCH PiMF/TiMF 150/250V云母带+XLPE绝缘，LSOH（SHF1）护套，单独屏蔽&铠装防火仪表&控制缆（多对/多三线组） |
订货代码 |
结构 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称重量 |
MRE-M3GCH-1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
10.5 |
110 |
MRE-M3GCH-2P0.75 |
2×2×0.75* |
0.5 |
1.3 |
11.0 |
150 |
MRE-M3GCH-4P0.75 |
4×2×0.75 |
0.5 |
1.4 |
16.0 |
270 |
MRE-M3GCH-7P0.75 |
7×2×0.75 |
0.5 |
1.8 |
19.0 |
400 |
MRE-M3GCH-10P0.75 |
10×2×0.75 |
0.5 |
1.9 |
22.0 |
560 |
MRE-M3GCH-14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
27.0 |
740 |
MRE-M3GCH-19P0.75 |
19×2×0.75 |
0.5 |
2.1 |
29.0 |
930 |
MRE-M3GCH-24P0.75 |
24×2×0.75 |
0.5 |
2.2 |
31.0 |
1110 |
*：2个线对以四线组方式组合。
