IEC 60092标准MariLan船用局域网数据&通讯缆

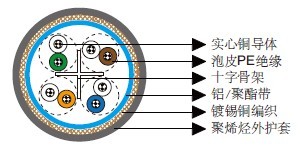

Cat 6 SF/UTP 24AWG 4P/8P |
最小绝缘电阻 |
MΩ.km |
1000 |
互电容 |
nF/km |
56 |
特性阻抗@1-100MHz |
Ω |
100 ± 15 |
额定传播速度 |
% |
67 |
最大传输延迟 |
ns/100 m |
537.6 |
最大延迟偏差 |
ns/100 m |
45 |
耦合衰减@30MHz |
dB |
75 |
标称传输特性 @20℃
F |
衰减 |
NEXT |
PS-NEXT |
ACR |
ELFEXT |
PS-ELFEXT |
回波损耗 |
MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB/100m |
dB |
1 |
2.1 |
80.3 |
77.3 |
78.2 |
71.0 |
68.0 |
21.5 |
4 |
3.8 |
71.3 |
68.3 |
67.4 |
59.0 |
56.0 |
24.5 |
10 |
6.0 |
65.3 |
62.3 |
59.3 |
51.0 |
48.0 |
26.5 |
16 |
7.6 |
62.2 |
59.2 |
54.6 |
46.9 |
43.9 |
26.5 |
20 |
8.5 |
60.8 |
57.8 |
52.3 |
45.0 |
42.0 |
26.5 |
31.25 |
10.7 |
57.9 |
54.9 |
47.1 |
41.1 |
38.1 |
25.1 |
62.50 |
15.5 |
53.4 |
50.4 |
37.9 |
35.1 |
32.1 |
23.0 |
100 |
19.9 |
50.3 |
47.3 |
30.4 |
31.0 |
28.0 |
21.6 |
155 |
25.3 |
47.4 |
44.4 |
22.1 |
27.2 |
24.2 |
20.3 |
200 |
29.1 |
45.8 |
42.8 |
16.6 |
25.0 |
22.0 |
19.5 |
250 |
33.0 |
44.3 |
41.3 |
11.3 |
23.0 |
20.0 |
18.8 |
机械和热性能
弯曲半径：8×OD（安装中）；4×OD（固定安装）
温度范围：-20℃ ~ +60℃
尺寸和重量
订货代码 |
结构 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称重量 |
MLN-SF/UTPCAT64P24 |
4×2×24AWG |
0.31 |
1.2 |
7.6 |
60 |
MLN-SF/UTPCAT68P24 |
2×(4×2×24AWG) |
0.31 |
1.2 |
15.2×7.6 |
120 |
