    Y 0.6/1kV UL/CSA

    Application

    These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).

    Standards

    • VDE 0276 part 627
    • DIN VDE 0281 part 13
    • UL 758
    • IEC 60502

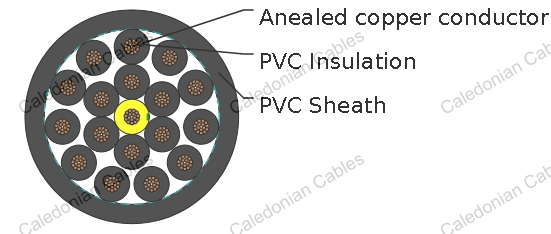

    Construction

    Conductor ?Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
    Insulation Special PVC type TI2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581.
    Sheath Special PVC.

    Technical Data

    Rated Voltage Uo/U (Um) 600/1000V
    Operating Temperatures flexing: -5℃~+80℃; fixed: -40℃~+80℃
    Minimum Bending Radius flexing: 7.5×OD; fixed: 4×OD
    Flame Retardant VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1/VW1/FT1
    Oil Resistant Yes
    Silicone Free Yes
    UV Resistant Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    2×0.5 6.4 56
    3G0.5 6.8 68
    4G0.5 7.6 100
    5G0.5 8.2 117
    7G0.5 9.8 138
    12G0.5 12.2 200
    18G0.5 14.4 276
    25G0.5 17.2 335
    2×0.75 6.8 66
    3G0.75 7.2 74
    4G0.75 8.0 126
    5G0.75 8.8 140
    7G0.75 10.7 190
    12G0.75 13.1 257
    18G0.75 15.6 362
    25G0.75 18.9 486
    2×1 7.4 80
    3G1 8.0 96
    4G1 8.8 100
    5G1 9.8 130
    7G1 11.7 170
    12G1 14.5 290
    18G1 17.3 405
    25G1 21.1 570
    2×1.5 8.4 95
    3G1.5 9.1 112
    4G1.5 9.9 139
    5G1.5 11.0 170
    7G1.5 13.3 225
    12G1.5 16.6 370
    18G1.5 19.7 520
    25G1.5 23.9 730
    2×2.5 9.4 160
    3G2.5 9.9 175
    4G2.5 11.1 203
    5G2.5 12.4 251
    7G2.5 15.0 330
    12G2.5 18.4 553
    18G2.5 22.0 795
    25G2.5 26.9 1110
    2×4 11.4 180
    3G4 12.3 230
    4G4 13.8 310
    5G4 15.3 410
    7G4 16.8 540
    12G4 22.9 860
    3G6 14.1 370
    4G6 15.6 430
    5G6 17.3 650
    7G6 19.3 860
    3G10 16.5 660
    4G10 18.4 790
    5G10 20.5 960
    7G10 22.5 1300
    3G16 19.6 760
    4G16 21.7 1100
    5G16 24.2 1600
    7G16 25.7 1890
    3G25 24.0 1450
    4G25 26.9 1600
    5G25 29.3 2050
    7G25 32.6 2900

    G: with green-yellow earth core
    ×: without green-yellow earth core
