    Halogen Free, Screened Control Cable 0.6/1 kV

    Application

    These screened, halogen-free, flame retardant cables are designed for instrumentation and control cables in tooling machinery, conveyor and transportation belts, production lines, in plant construction, air-conditioning systems as well as in iron and steel works, suitable for use in dry, damp and wet environments for installation above, on, in and beneath plaster as well as in masonry and concrete walls except for direct embedding in vibrated, compacted or tamped concrete.

    Standards

    • DIN VDE 0281 part 14
    • DIN VDE 0281 part 13

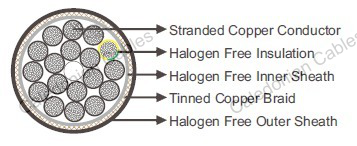

    Construction

    Conductor Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC 60228.
    Insulation Halogen-free compound TI6.
    Inner Sheath Halogen-free compound.
    Screen Tinned copper braid.
    Outer Sheath Halogen-free compound TM7.

    Technical Data

    Rated Voltage Uo/U (Um) 600/1000V
    Operating Temperatures flexing: -5℃~+70℃; fixed: -40℃~+70℃
    Minimum Bending Radius 15×OD
    Flame Retardant DIN VDE 0482 Part 265-2-1/ EN 50265-2-1/IEC 60332-1
    Halogen Free VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754
    Gases Corrosively VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754
    Smoke Density VDE 0482 part 1034-1+2/IEC 61034-1+2/DIN EN 61034-1+2/BS 7622 part 1+2
    Oil Resistant Yes
    Silicone Free Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    3G0.5 8.6 150
    4G0.5 9.4 170
    5G0.5 10.1 199
    7G0.5 12.1 235
    12G0.5 14.7 320
    18G0.5 17.3 428
    25G0.5 20.6 503
    3G0.75 9.0 155
    4G0.75 9.9 190
    5G0.75 10.8 228
    7G0.75 13.0 323
    12G0.75 15.8 410
    18G0.75 17.9 560
    25G0.75 22.8 730
    3G1 9.8 163
    4G1 10.8 200
    5G1 12.1 239
    7G1 14.5 289
    12G1 17.4 464
    18G1 20.7 628
    25G1 24.8 855
    3G1.5 10.9 187
    4G1.5 12.2 240
    5G1.5 13.3 289
    7G1.5 16.0 383
    12G1.5 19.6 592
    18G1.5 23.4 806
    25G1.5 28.2 1241
    3G2.5 12.2 298
    4G2.5 13.4 345
    5G2.5 14.9 427
    7G2.5 17.9 561
    12G2.5 21.9 857
    18G2.5 26.1 1355
    25G2.5 31.9 1995
    3G4 15.1 391
    4G4 16.7 527
    5G4 18.6 700
    3G6 17.0 629
    4G6 18.7 731
    5G6 20.7 1105
    3G10 19.6 1125
    4G10 21.9 1345
    5G10 24.1 1635
    4G16 23.5 1395
    5G16 26.4 1870
    7G16 28.8 2720
    3G25 28.0 2465
    4G25 32.5 2750
    5G25 35.7 3490
    3G35 32.7 3230
    4G35 35.7 4100
    5G35 40.0 4950
    4G50 41.1 5780
    4G70 48.0 7480
    4G95 51.2 10220
    4G120 56.0 13750
    4G150 64.5 15900

    G: with green-yellow earth core
    ×: without green-yellow earth core
