    PUR Sheathed, Screened, Halogen Free, Twisted Pair Data Cable

    Application

    These halogen free cables are used as drag chain cables for permanent flexible stresses in machineries, machines and tool building, robot systems, constantly moving machine components and multi-shift-operation.

    Standards

    • UL AWM Style 20233
    • CSA AWM I/II A/B

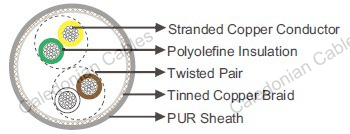

    Construction

    Conductor Stranded bare copper, class 6 according to VDE 0295/BS 6360/IEC 60228.
    Insulation Polyolefin.
    Screen Tinned copper wire braid.
    Sheath Full polyurethane sheath TMPU.

    Technical Data

    Rated Voltage Uo/U (Um) 350V
    Operating Temperatures flexing: -40℃~+80℃; fixed: -50℃~+80℃
    Minimum Bending Radius flexing: 10×OD; fixed: 5×OD
    Flame Retardant VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
    Halogen Free Yes
    Oil Resistant Yes
    Ozone Resistant Yes
    Silicone Free Yes
    UV Resistant Yes
    Abrasion Resistance Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    24AWG
    1×2×0.25 4.8 26
    2×2×0.25 6.7 61
    3×2×0.25 7.1 70
    4×2×0.25 7.6 82
    5×2×0.25 8.3 99
    6×2×0.25 8.9 126
    8×2×0.25 9.3 147
    10×2×0.25 11.7 179
    14×2×0.25 12.7 210
    22AWG
    1×2×0.34 5.1 35
    2×2×0.34 7.2 80
    3×2×0.34 7.6 100
    4×2×0.34 8.2 118
    5×2×0.34 9.0 134
    6×2×0.34 9.7 162
    8×2×0.34 10.3 214
    10×2×0.34 12.8 270
    14×2×0.34 13.8 304
    20AWG
    1×2×0.5 5.6 47
    2×2×0.5 8.4 100
    3×2×0.5 8.9 131
    4×2×0.5 9.7 149
    5×2×0.5 10.7 169
    6×2×0.5 11.7 181
    8×2×0.5 12.4 274
    10×2×0.5 15.6 332
    14×2×0.5 17.1 390
    19AWG
    1×2×0.75 6.1 56
    2×2×0.75 9.1 102
    3×2×0.75 9.6 144
    4×2×0.75 10.7 160
    5×2×0.75 11.7 193
    6×2×0.75 12.9 216
    8×2×0.75 13.7 327
    10×2×0.75 17.2 451
    14×2×0.75 18.8 521
    18AWG
    1×2×1 6.5 64
    2×2×1 10.0 120
    3×2×1 10.6 160
    4×2×1 11.7 184
    5×2×1 13.2 217

    G: with green-yellow earth core
    ×: without green-yellow earth core
