    PUR Sheathed, Halogen Free Data Cable

    Application

    These halogen free cables are used as drag chain cables for frequent and quick lifting and bending stresses in machine engineering and construction, in robot technology and on permanently moving machine components.

    Standards

    • UL AWM Style 20233
    • CSA AWM I/II A/B

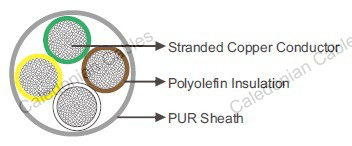

    Construction

    Conductor Stranded bare copper, class 6 according to VDE 0295/BS 6360.
    Insulation Polyolefin.
    Sheath Full polyurethane sheath TMPU.

    Technical Data

    Rated Voltage Uo/U (Um) 300V
    Operating Temperatures flexing: -40℃~+80℃; fixed: -50℃~+80℃
    Minimum Bending Radius flexing: 5×OD; fixed: 3×OD
    Flame Retardant VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
    Halogen Free Yes
    Oil Resistant Yes
    Ozone, Oxygen Resistant Yes
    Silicone Free Yes
    UV Resistant Yes
    Abrasion Resistance Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    26AWG
    2×0.14 3.9 22
    3×0.14 4.0 24
    4×0.14 4.3 29
    5×0.14 4.7 33
    7×0.14 5.3 47
    10×0.14 6.1 57
    12×0.14 6.2 63
    14×0.14 6.5 72
    18×0.14 7.2 80
    24×0.14 8.2 110
    25×0.14 8.6 115
    24AWG
    2×0.25 4.3 26
    3×0.25 4.5 30
    4×0.25 4.8 39
    5×0.25 5.2 44
    7×0.25 6.0 52
    10×0.25 6.9 70
    12×0.25 7.1 84
    14×0.25 7.4 97
    18×0.25 8.2 114
    24×0.25 9.6 157
    25×0.25 10.1 160
    22AWG
    2×0.34 4.6 31
    3×0.34 4.8 38
    4×0.34 5.2 51
    5×0.34 5.6 54
    7×0.34 6.5 77
    10×0.34 7.5 104
    12×0.34 7.7 122
    14×0.34 8.1 140
    18×0.34 9.2 162
    24×0.34 10.7 204
    25×0.34 11.2 229

    G: with green-yellow earth core
    ×: without green-yellow earth core
