    H05VVC4V5-K 300/500V

    Application

    These screened cables are used as supply or interconnecting cable for measuring, controlling and regulating for light and medium mechanical stresses.

    Standards

    • HD 21.13 S1
    • DIN VDE 0281 Part. 13/5/96

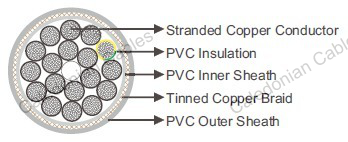

    Construction

    Conductor Stranded bare copper, class 5/class 6 according to IEC 60228
    Insulation PVC Type YI 4
    Inner Sheath PVC
    Screen Tinned copper braid
    Outer Sheath PVC oil resistant Type YM 5

    Technical Data

    Rated Voltage Uo/U (Um) 300/500 V
    Operating Temperatures flexing: -15℃~+80℃; fixed: -40℃~+80℃
    Minimum Bending Radius flexing: 20×OD; fixed: 10×OD
    Flame Retardant IEC 60332-1
    Oil Resistant Yes
    Ozone Resistant Yes
    Silicone Free Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    3G0.75 8.6 108
    4G0.75 9.5 123
    5G0.75 10.0 147
    7G0.75 11.9 189
    12G0.75 14.7 296
    25G0.75 19.5 529
    3G1 9.3 130
    4G1 9.9 150
    5G1 11.0 191
    7G1 12.6 223
    12G1 15.1 322
    18G1 17.9 455
    25G1 21.7 668
    3G1.5 10.1 146
    4G1.5 11.1 179
    5G1.5 12.5 221
    7G1.5 14.5 303
    12G1.5 17.6 448
    18G1.5 21.2 637
    25G1.5 24.7 845
    47G1.5 32.0 1480
    3G2.5 11.6 207
    4G2.5 12.9 247
    5G2.5 14.4 309

    G: with green-yellow earth core
    ×: without green-yellow earth core
