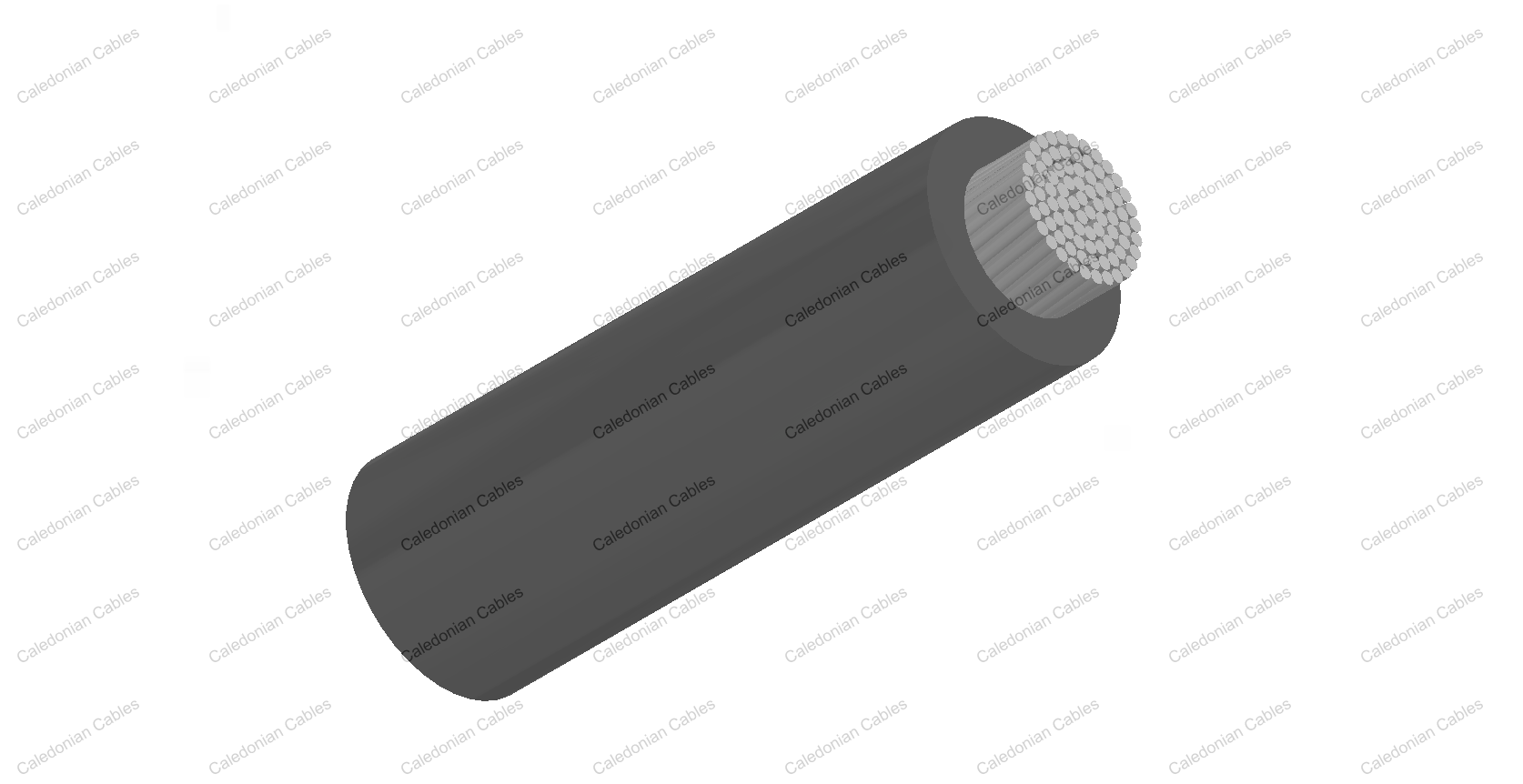

    High Temperature Resistant Cables +145°C 0.6/1kV

    Application

    These cables are specifically designed for connecting generator output of thermal class (B),motors, transformers and relays requiring for high temperature resistant.

    Standards

    • IEC 60502

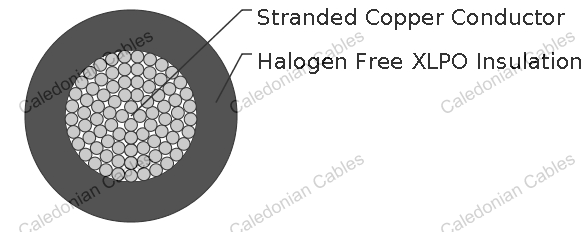

    Construction

    Conductor Stranded tinned copper wires, class 5/class 6 according to DIN VDE 0295/ IEC 60228
    Insulation Halogen-free XLPO

    Technical Data

    Rated Voltage U0/U(Um) 0.6/1kV
    Operating Temperatures -55℃~+145℃
    Minimum Bending Radius 6×OD
    Flame Retardant IEC 60332-3
    Halogen Free IEC 60754
    Corrosive Gases IEC 60754
    Smoke Density IEC 61034
    Oil Resistant Yes
    Ozone Resistant Yes
    UV Resistant Yes
    Cold Resistant CSA C 22.2

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×6 5.4 70
    1×10 6.8 119
    1×16 8.5 180
    1×25 10.3 270
    1×35 11.8 373
    1×50 13.9 528
    1×70 16.0 728
    1×95 18.5 966
    1×120 20.5 1230
    1×150 22.1 1530
    1×185 24.8 1880
    1×240 27.7 2500
    1×300 37.8 3910
    1×400 38.7 4870
