For the connection of mobile electrical equipment in mines and tunnels. Suitable also for coal cutting machines, particularly for extreme bending loads inside of steel or plastic track chains.
| Construction | DIN VDE 0250-813 |
| General Requirements | DIN VDE 0250-1 |
| Guide Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401. 402,602,303, 615 |
| Under Fire Condition Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
| Oil Resistant | HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |

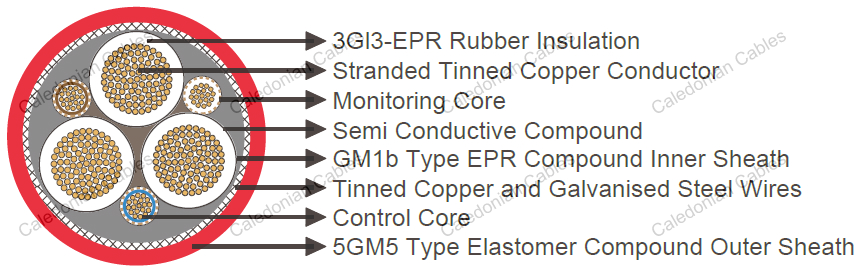

| Power Cores | |
| conductor | Tinned copper conductor DIN VDE 0295 class 5 |
| Insulation | Based on 3Gl3-EPR rubber and semi rubber compound |
| CONTROL CORES + MONITORING PE CORE(S) | |
| conductor | Tinned copper conductor DIN VDE 0295 class 5 |
| Insulation | 3Gl3 type EPR compound and semi conductive rubber compound |
| Cradle Separator | A shaped section of elastomeric material. Semi conductive, with control wire in the center. designed to support the core assembly. fill the center interstice and provide a specified separation between individual power cores |
| Electrical Field Control | Inner and Outer semiconductive layer of semiconductive rubber |
| Core Identification | Power cores naturally colored. Control cores blue colored |
| Lay Up | Three main conductors laid-up with three control cores & PE conductors in interstice over a cradle separator. |
| Inner Sheath | GM1b Type EPR compound |
| Screen / Armour | Flexible- pliable armour in helix of tinned copper and galvanised steel wires |
| Outer Sheath | 5GM5 Type elastomer compound. Red |
| Rated Voltage | 1.8/3 KV | 3.6/6 KV |
| AC Test Voltage | 6KV | 11KV |
| Max.Permissible Operating Voltage AC | 2.1/3.6 KV | 4.2/7.2 KV |
| Max.Permissible Operating Voltage DC | 2.7/5.4 KV | 5.4/10.8 KV |
| Min Bending Radius | DIN VDE 0298-3 | |
| Current Carrying Capacity | DIN VDE 0298-4 | |
| Working Temperature | ||
| Fixed | -40°C-+80°C | |
| Mobile | -25°C-+80°C | |
| Cross Section | Overall Diameter (min-max) | conductor Resistance at 20°C | Appro. Weight |
|---|---|---|---|
| mm² | mm | Ω/km | kg/km |
| 3x25+3×(1.5 ST KON+16/3 KON) | 42.1-45.3 | 0.795 | 3190 |
| 3x35+3×(1.5 ST KON+16/3 KON) | 46.5-49.7 | 0.565 | 3920 |
| 3x50+3×(1.5 ST KON+25/3 KON) | 50.4-53.5 | 0.393 | 4730 |
| 3x70+3×(1.5 ST KON+35/3 KON) | 55.8-60.0 | 0.277 | 6070 |
| 3x95+3×(1.5 ST KON+50/3 KON) | 61.5-65.7 | 0.21 | 7620 |
| 3x120+3×(1.5 ST KON+70/3 KON) | 66.0-70.3 | 0.164 | 9270 |
| 3x150+3×(1.5 ST KON+70/3 KON) | 71.8-76.0 | 0.132 | 10920 |
| 3x185+3×(1.5 ST KON+95/3 KON) | 76.2-80.3 | 0.108 | 12770 |
| 3x240+3×(1.5 ST KON+120/3 KON) | 84.1-89.4 | 0.0817 | 15860 |
| 3x35+3×(1.5 ST KON+25/3 KON)+ÜL KON | 46.0-51.0 | 0.554 | 3960 |
| 3x50+3×(1.5 ST KON+25/3 KON)+ÜL KON | 51.0-55.0 | 0.368 | 4980 |
| 3x70+3×(1.5 ST KON+35/3 KON)+ÜL KON | 57.0-62.0 | 0.272 | 6360 |
| 3x95+3×(1.5 ST KON+50/3 KON)+ÜL KON | 64.0-69.0 | 0.206 | 8150 |
| 3x50+3×(35+35/3KON)+2x(0.75ST KON)+1x(2x0.75ÜL KON) | 66.0-71.0 | 0.368 | 8390 |
| 3x70+3×(50+50/3KON)+2x(0.75ST KON)+1x(2x0.75ÜL KON) | 74.0-79.0 | 0.272 | 10350 |
| 3x95+3×(70+70/3KON)+2x(0.75ST KON)+1x(2x0.75ÜL KON) | 85.0-90.0 | 0.206 | 13340 |
| Cross Section | Overall Diameter (min-max) | conductor Resistance at 20°C | Appro. Weight |
|---|---|---|---|
| mm² | mm | Ω/km | kg/km |
| 3x25+3×(1.5 ST KON+16/3 KON) | 47.3-50.4 | 0.795 | 3710 |
| 3x35+3×(1.5 ST KON+16/3 KON) | 50.2-53.4 | 0.565 | 4320 |
| 3x50+3×(1.5 ST KON+25/3 KON) | 53.5-57.7 | 0.393 | 5250 |
| 3x70+3×(1.5 ST KON+35/3 KON) | 59.6-63.8 | 0.277 | 6600 |
| 3x95+3×(1.5 ST KON+50/3 KON) | 64.3-68.5 | 0.21 | 8030 |
| 3x120+3×(1.5 ST KON+70/3 KON) | 70.7-74.8 | 0.164 | 9990 |
| 3x150+3×(1.5 ST KON+70/3 KON) | 74.5-78.8 | 0.132 | 11330 |
| 3x185+3×(1.5 ST KON+95/3 KON) | 78.5-93.0 | 0.108 | 13280 |
| 3x240+3×(1.5 ST KON+120/3 KON) | 86.8-92.1 | 0.0817 | 16380 |
| 3x35+3×(1.5 ST KON+ 25/3KON)+ÜL KON | 46.0-51.0 | 0.554 | 3960 |
| 3x50+3×(1.5 ST KON+ 25/3KON)+ÜL KON | 51.0-55.0 | 0.368 | 4980 |
| 3x70+3×(1.5 ST KON+ 35/3KON)+ÜL KON | 57.0-62.0 | 0.272 | 6360 |
| 3x95+3×(1.5 ST KON+ 50/3KON)+ÜL KON | 64.0-69.0 | 0.206 | 8150 |
| 3x35+3x(35+35/3KON) +2x(0.75STKON)+1x(2x0.75ÜL KON) | 69.0-74.0 | 0.554 | 7800 |
| 3x50+3x(50+50/3KON) +2x(0.75STKON)+1x(2x0.75ÜL KON) | 73.0-78.0 | 0.368 | 9340 |
| 3x70+3x(70+70/3KON) +2x(0.75STKON)+1x(2x0.75ÜL KON) | 80.0-85.0 | 0.272 | 11580 |
| 3x95+3x(95+95/3KON) +2x(0.75STKON)+1x(2x0.75ÜL KON) | 89.0-94.0 | 0.206 | 13930 |
