For use in open-cast mining and quarries and similar plants. Also suitable for laying alongside conveyor belts on material handing equipment. It can be used for tunneling sites and similar applications.
| Construction | DIN VDE 0250-812 |
| General Requirements | DIN VDE 0250-1 |
| Guide Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401. 402,602,303, 615 |
| Under Fire Condition Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
| Oil Resistant | HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |

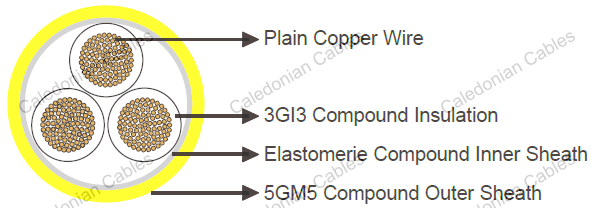

Conductor : Electrolytic stranded plain copper wire DIN VDE 0295 Class 5
Insulation : All cores are insulated with 3Gl3 compound
Lay Up : All cores are laid up in contact with each other and intersititial ground cores
Inner Sheath : Special extruded elastomeric compound
Outer sheath : Heavy-duty elastomer outer sheath 5GM5.Yellow or black.
| Rated Voltage | 0.6 / 1 KV |
| Max.Permissible Operating Voltage AC | 0.7 / 1.2 KV |
| Max.Permissible Operating Voltage DC | 0.9 / 1.8 KV |
| AC Test Voltage | 3KV |
| Min Bending Radius Current Carrying | Acc. to DIN VDE 0298 part 3 |
| capacity | According to DIN VDE0298, Part 4 |
| Working Temperature | |
| Fixed | -40°C-+80°C |
| Mobile | -25°C-+80°C |
| Max.Tensile Load Of cable | 15N/mm² |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3×1.5 | 9.7-10.3 | 145 |
| 3×2.5 | 11.2-12.8 | 220 |
| 3×4 | 12.5-14.1 | 300 |
| 3×6 | 13.2-15.0 | 380 |
| 3×10 | 16.6-18.6 | 590 |
| 3×16 | 19.5-21.0 | 797 |
| 3×25 | 22.9-24.9 | 1206 |
| 3×35 | 24.9-27.9 | 1670 |
| 3×50 | 29.4-33.0 | 2195 |
| 3×70 | 34.8-37.8 | 3124 |
| 3×95 | 40.9-43.9 | 4100 |
| 3×120 | 43.4-47.7 | 4730 |
| 3×150 | 47.8-54.0 | 5916 |
| 3×185 | 53.1-58.6 | 7270 |
| 4×1.5 | 10.5-12.6 | 200 |
| 4×2.5 | 12.0-13.7 | 260 |
| 4×4 | 13.5-15.1 | 360 |
| 4×6 | 15.7-17.7 | 458 |
| 4×10 | 17.4-20.2 | 670 |
| 4×16 | 21.4-23.1 | 1038 |
| 4×25 | 24.5-28.1 | 1576 |
| 4×35 | 28.4-31.4 | 1978 |
| 4×50 | 33.6-36.6 | 2765 |
| 4×70 | 38.8-42.5 | 3930 |
| 4×95 | 44.8-47.8 | 5165 |
| 4×120 | 50.0-53.9 | 6200 |
| 4×150 | 55.0-58.9 | 7537 |
| 4×185 | 59.0-63.3 | 9420 |
| 5×1.5 | 11.4-13.5 | 234 |
| 5×2.5 | 12.9-14.6 | 318 |
| 5×4 | 14.7-16.7 | 434 |
| 5×6 | 16.1-18.6 | 594 |
| 5×10 | 19.0-22.0 | 820 |
| 5×16 | 23.2-25.2 | 1285 |
| 5×25 | 28.0-31.0 | 1864 |
| 5×35 | 34.0-37.5 | 2675 |
| 7×1.5 | 12.9-14.5 | 300 |
| 7×2.5 | 14.9-17.4 | 458 |
| 12×1.5 | 15.8-17.8 | 420 |
| 12×2.5 | 17.3-19.6 | 580 |
| 18×1.5 | 18.5-20.5 | 610 |
| 18×2.5 | 21.2-23.4 | 900 |
| 24×1.5 | 20.9-23.1 | 760 |
| 24×2.5 | 22.8-24.8 | 1140 |
| 3×50/25 | 29.0-33.5 | 2510 |
| 3×70/35 | 34.8-37.8 | 3500 |
| 3×95/50 | 44.0-49.0 | 4300 |
| 3×120/70 | 44.7-47.7 | 5470 |
| 3×150/70 | 49.5-54.8 | 7000 |
| 3×185/95 | 54.5-58.5 | 8300 |
| 3×240/120 | 60.9-66.2 | 10500 |
