    3GSEYQY

    Application

    These cables are used for the connection of mobile operating equipments. In mines and underground excavations with hazardous environments, in stationary operation, e.g.highvoltage transformers in mining and tunneling. It can be used also for powering main pannels and switchboards in tunneling applications.

    Standards

    Construction DIN VDE 0250-605 & IEC 60502-2
    General Requirements DIN VDE 0250-1
    Guide Use DIN VDE 0298-3
    Electrical Tests DIN VDE 0472-501, 503, 508
    Non-Electrical Tests DIN VDE 0472-401. 402,602,303, 615
    Under Fire Condition Tests DIN VDE 0472-803, 804
    Flame Retardant VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1

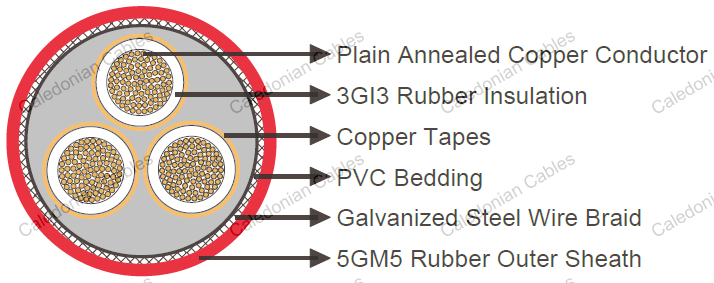

    Cable Construction

    Conductor Circular Stranded Plain Annealed Copper Conductor (class 2 acc. to IEC 60228)
    Insulation 3Gl3 type EPR Compound
    Electrical Field Control Extruded inner and outer rubber semiconductive layer
    Core Identification Natural coloring with black semiconductive layer
    Screen Copper tapes applied over each main core
    Lay Up 3-Screened Cores will be laid up in concentrically
    Bedding PVC filler
    Armour Galvanized Steel Wire Braid (CSWB) Min90%
    Outer Sheath 5GM5 Type elastomer compound. Red

    Technical Characteristics

    Rated Voltage 18 / 30 KV
    AC Test Voltage 48 KV
    Max.Permissible Operating Voltage AC 20.8 / 36 KV
    Max.Permissible Operating Voltage DC 27 / 54 KV
    Min Bending Radius Current Carrying Acc. to DIN VDE 0298 part 3
    Capacity According to DIN VDE0298, Part 4
    Max. Short circuit Temperature 250°C
    Max. conductor Temperature 90°C
    Working Temperature
    Fixed -25°C - +80°C
    Mobile +5°C - +80°C
    Max.Tensile Load Of cable 15N/mm²
    Max.torsion 25°/m

    Dimensions And Weight

    Cross Section Overall Diameter (min-max) conductor Resistance at 20°C Appro. Weight
    mm² mm Ω/km kg/km
    3x25/16 65.1-72.0 0.727 6860
    3x35/16 68.0-75.1 0.524 7640
    3x50/16 70.8-78.3 0.387 8520
    3x70/16 74.5-82.4 0.268 9760
    3x95/16 79.0-87.2 0.193 11280
    3x120/16 82.2-90.9 0.153 12600
