J-Y(St)Y…2X0.6 Lg J-Y(St)Y…2X0.8 Lg
J-H(St)H…2X0.6 Lg J-H(St)H…2X0.8 Lg

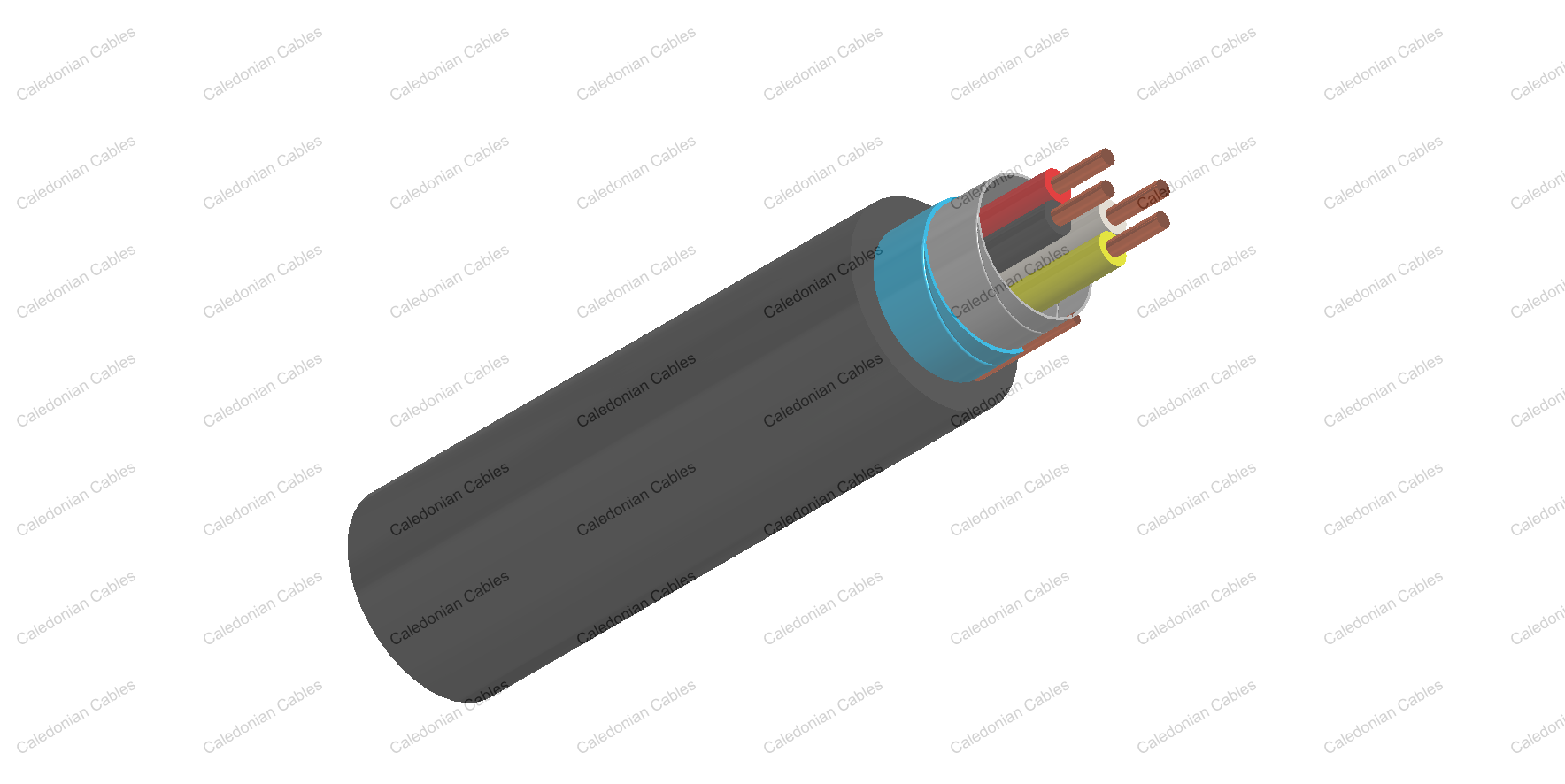

The installation cables are used for telephone and signal transmission and suitable for permanent installation on and under plaster in dry and damp rooms and for permanent installation on external walls. They are designed to handle low frequency analogue or digital signals for flexible installation.
• DIN VDE 0815

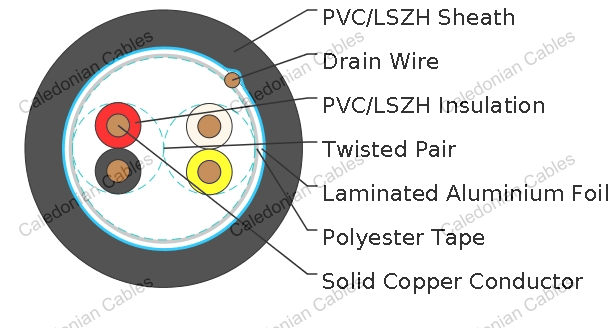

Construction
Solid annealed bare copper sized 0.6/0.8mm as per VDE 0295/IEC 60228 Class 1
PVC YI1 type to DIN VDE 0207-4. LSZH compound can be offered as option
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk
Twisted Pairs
The twisted pairs are stranded to cable core in layers
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to
sheathing.
Laminated aluminium foil is provided for fully enclosing the core with an overlap
PVC YM1 type to DIN VDE 0207-5. LSZH sheath can be offered as option
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Drain wire with a diameter of 0.4mm is provided in cables up to 10 pairs. Drain wire with a diameter of 0.6mm
is provided in cables with more than 10 pairs
| J- | Installation Cable |
| Y | Polyvinylchloride (PVC) |
| H | Low Smoke & Zero Halogen |
| (St) | Static Shield |
| Lg | Stranded in layers |
|
Nominal Conductor Diameter |
mm |
0.6 |
0.8 |
0.6 |
0.8 |
|
VDE CODE |
|
J-Y(St)Y |
J-Y(St)Y |
J-H(St)H |
J-H(St)H |
|
Conductor Size |
mm2 |
0.283 |
0.5 |
0.283 |
0.5 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
63 |
34.6 |
63 |
34.6 |
|
Maximum Loop Resistance @20°C |
Ω/km |
130 |
73.2 |
130 |
73.2 |
|
Minimum Insulation Resistance @500V DC @20°C |
MΩ.km |
100 |
100 |
100 |
100 |
|
Maximum Average Attenuation @0.8KHz |
dB/km |
1.7 |
1.1 |
1.7 |
1.1 |
|
Maximum Mutual Capacitance @0.8KHz* |
nF/km |
100 |
100 |
120 |
120 |
|
Maximum Capacitance Unbalance K1 |
pF/100m |
300 |
300 |
300 |
300 |
|
Maximum Working Voltage Peak Value |
V |
300 |
300 |
300 |
300 |
|
Insulation Material |
|
PVC |
PVC |
LSZH |
LSZH |
|
Sheath Material |
|
PVC |
PVC |
LSZH |
LSZH |
|
Nominal Insulation Thickness |
mm |
0.3 |
0.4 |
0.3 |
0.4 |
|
Nominal Insulated Conductor Diameter |
mm |
1.2 |
1.6 |
1.2 |
1.6 |
* In Cables up to 4 pairs 120nF/km
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
In 2 pair- cables:
Pair 1: a-wire red b-wire black
Pair 2: a-wire white b-wire yellow
In cables with 4 and more pairs:
a-wire of the 1st pair in each layer red, in all other pairs white
b-wire blue, yellow, green, brown, black in repeated sequence counting direction from the outside to the inside.
VDE CODE: J-Y(St)Y …x2x0.6/0.8 Lg
| Cable Code | Number of Pairs |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 0.6mm Conductor, 1.2mm Insulated Wire | |||||
|
1 |
0.3 |
1.0 |
4.8 |
30 |
|
|
2 |
0.3 |
1.0 |
5.0 |
40 |
|
|
3 |
0.3 |
1.0 |
6.3 |
50 |
|
|
4 |
0.3 |
1.0 |
6.5 |
60 |
|
|
5 |
0.3 |
1.0 |
7.2 |
70 |
|
|
6 |
0.3 |
1.0 |
7.5 |
80 |
|
|
8 |
0.3 |
1.0 |
8.0 |
90 |
|
|
10 |
0.3 |
1.0 |
10.0 |
110 |
|
|
12 |
0.3 |
1.0 |
10.2 |
130 |
|
|
14 |
0.3 |
1.0 |
10.5 |
145 |
|
|
16 |
0.3 |
1.0 |
11.0 |
160 |
|
|
20 |
0.3 |
1.0 |
12.0 |
190 |
|
| T815J-Y(St)Y-Lg-24P06 | 24 | 0.3 | 1.0 | 13.0 |
220 |
| T815J-Y(St)Y-Lg-30P06 | 30 | 0.3 | 1.2 | 14.0 |
280 |
| T815J-Y(St)Y-Lg-40P06 | 40 | 0.3 | 1.2 | 15.0 |
350 |
| T815J-Y(St)Y-Lg-50P06 | 50 | 0.3 | 1.2 | 17.0 |
430 |
| T815J-Y(St)Y-Lg-60P06 | 60 | 0.3 | 1.2 | 19.0 |
500 |
| T815J-Y(St)Y-Lg-80P06 | 80 | 0.3 | 1.4 | 21.0 |
640 |
| T815J-Y(St)Y-Lg-100P06 | 100 | 0.3 | 1.4 | 24.0 |
850 |
|
0.8mm Conductor,1.6mm Insulated Wire |
|||||
| T815J-Y(St)Y-Lg-1P08 | 1 | 0.4 | 1.0 | 6.0 |
40 |
| T815J-Y(St)Y-Lg-2P08 | 2 | 0.4 | 1.0 | 7.0 |
60 |
| T815J-Y(St)Y-Lg-3P08 | 3 | 0.4 | 1.0 | 8.5 |
80 |
| T815J-Y(St)Y-Lg-4P08 | 4 | 0.4 | 1.0 | 9.0 |
100 |
| T815J-Y(St)Y-Lg-5P08 | 5 | 0.4 | 1.0 | 9.5 |
120 |
| T815J-Y(St)Y-Lg-6P08 | 6 | 0.4 | 1.0 | 11.0 |
140 |
| T815J-Y(St)Y-Lg-8P08 | 8 | 0.4 | 1.0 | 11.5 |
170 |
| T815J-Y(St)Y-Lg-10P08 | 10 | 0.4 | 1.2 | 13.2 |
220 |
| T815J-Y(St)Y-Lg-12P08 | 12 | 0.4 | 1.2 | 14.2 |
250 |
| T815J-Y(St)Y-Lg-14P08 | 14 | 0.4 | 1.2 | 15.0 |
280 |
| T815J-Y(St)Y-Lg-16P08 | 16 | 0.4 | 1.2 | 16.0 |
320 |
| T815J-Y(St)Y-Lg-20P08 | 20 | 0.4 | 1.2 | 17.0 |
380 |
| T815J-Y(St)Y-Lg-24P08 | 24 | 0.4 | 1.4 | 19.0 |
460 |
| T815J-Y(St)Y-Lg-30P08 | 30 | 0.4 | 1.4 | 20.8 |
560 |
| T815J-Y(St)Y-Lg-40P08 | 40 | 0.4 | 1.4 | 23.0 |
710 |
| T815J-Y(St)Y-Lg-50P08 | 50 | 0.4 | 1.6 | 26.0 |
900 |
| T815J-Y(St)Y-Lg-60P08 | 60 | 0.4 | 1.6 | 28.0 |
1050 |
| T815J-Y(St)Y-Lg-80P08 | 80 | 0.4 | 1.8 | 31.5 |
1400 |
| T815J-Y(St)Y-Lg-100P08 | 100 | 0.4 | 2.0 | 33.0 |
1750 |
VDE CODE: J-H(St)H …x2x0.6/0.8 Lg
| Cable Code | Number of Pairs | Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 0.6mm Conductor, 1.2mm Insulated Wire | |||||
|
2 |
0.3 |
1.0 |
8.0 |
65 |
|
|
4 |
0.3 |
1.0 |
10.0 |
100 |
|
|
6 |
0.3 |
1.0 |
11.0 |
117 |
|
|
10 |
0.3 |
1.0 |
12.0 |
155 |
|
|
20 |
0.3 |
1.0 |
15.0 |
270 |
|
|
30 |
0.3 |
1.2 |
17.0 |
322 |
|
|
40 |
0.3 |
1.2 |
18.0 |
408 |
|
|
50 |
0.3 |
1.2 |
20.0 |
491 |
|
|
60 |
0.3 |
1.2 |
21.0 |
573 |
|
|
80 |
0.3 |
1.4 |
24.0 |
756 |
|
|
100 |
0.3 |
1.4 |
27.0 |
917 |
|
| 0.8mm Conductor,1.6mm Insulated Wire | |||||
| T815J-H(St)H-Lg-1P08 |
2 |
0.4 |
1.0 |
9.0 |
77 |
|
4 |
0.4 |
1.0 |
11.0 |
135 |
|
|
6 |
0.4 |
1.0 |
12.0 |
165 |
|
|
10 |
0.4 |
1.2 |
15.0 |
250 |
|
|
20 |
0.4 |
1.2 |
19.0 |
420 |
|
|
30 |
0.4 |
1.4 |
22.0 |
620 |
|
|
40 |
0.4 |
1.4 |
26.0 |
850 |
|
|
50 |
0.4 |
1.6 |
28.0 |
1000 |
|
|
60 |
0.4 |
1.6 |
30.0 |
1150 |
|
|
80 |
0.4 |
1.8 |
34.0 |
1550 |
|
|
100 |
0.4 |
2.0 |
38.0 |
1850 |
|
