J-YY…2X0.6 Bd

Applcation

The installation cables are used for telephone and signal transmission for permanent surface or concealed installation in dry and damp rooms, on or under plaster, and on external walls.

Standards

• DIN VDE 0815/DIN 57815

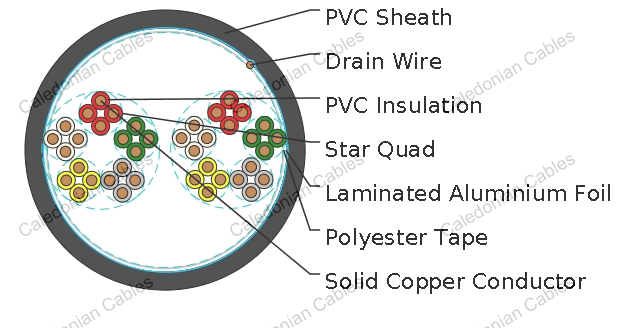

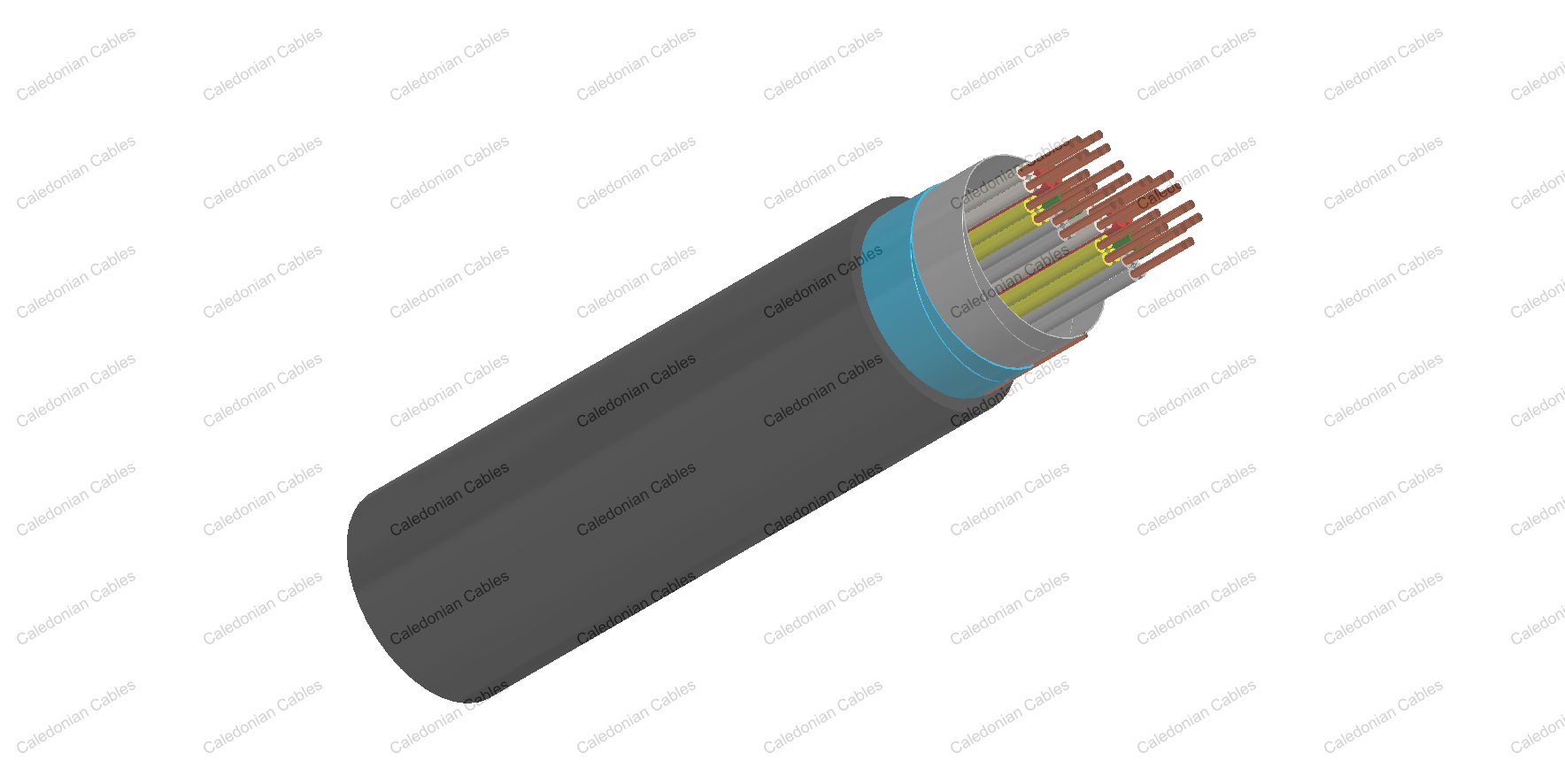

Construction

Conductors

Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 Class 1

Insulation

PVC YI1 type to DIN VDE 0207-2

Cabling Element

Star Quads

Cable Core Assembly

Each 4 wires are stranded into a star quad, the quads are stranded to units and the units are stranded to form the core

Core Wrapping

One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing

Screen

Laminated aluminium foil is fully enclosing the core with an overlap

Sheath

PVC YM1 type to DIN VDE 0207 part 5

Ripcord

Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

Drain Wire

Tinned drain wire applied longitudinally to provide continuity of the screen

Type Codes

J    Installation Cable         Y      Polyvinyl Chloride (PVC)         Bd     Unit stranding.

Electrical Properties

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Colour Code

Quads

The single core is identified by black ring markings:

Subunits

Basic colours for the wire insulation of the 5 star quads of a basic unit:

The tracer units are coded with a red helix, all other units by a white binder

Dimensions And Weight

VDE CODE: J-YY…x2x 0.6 Bd
