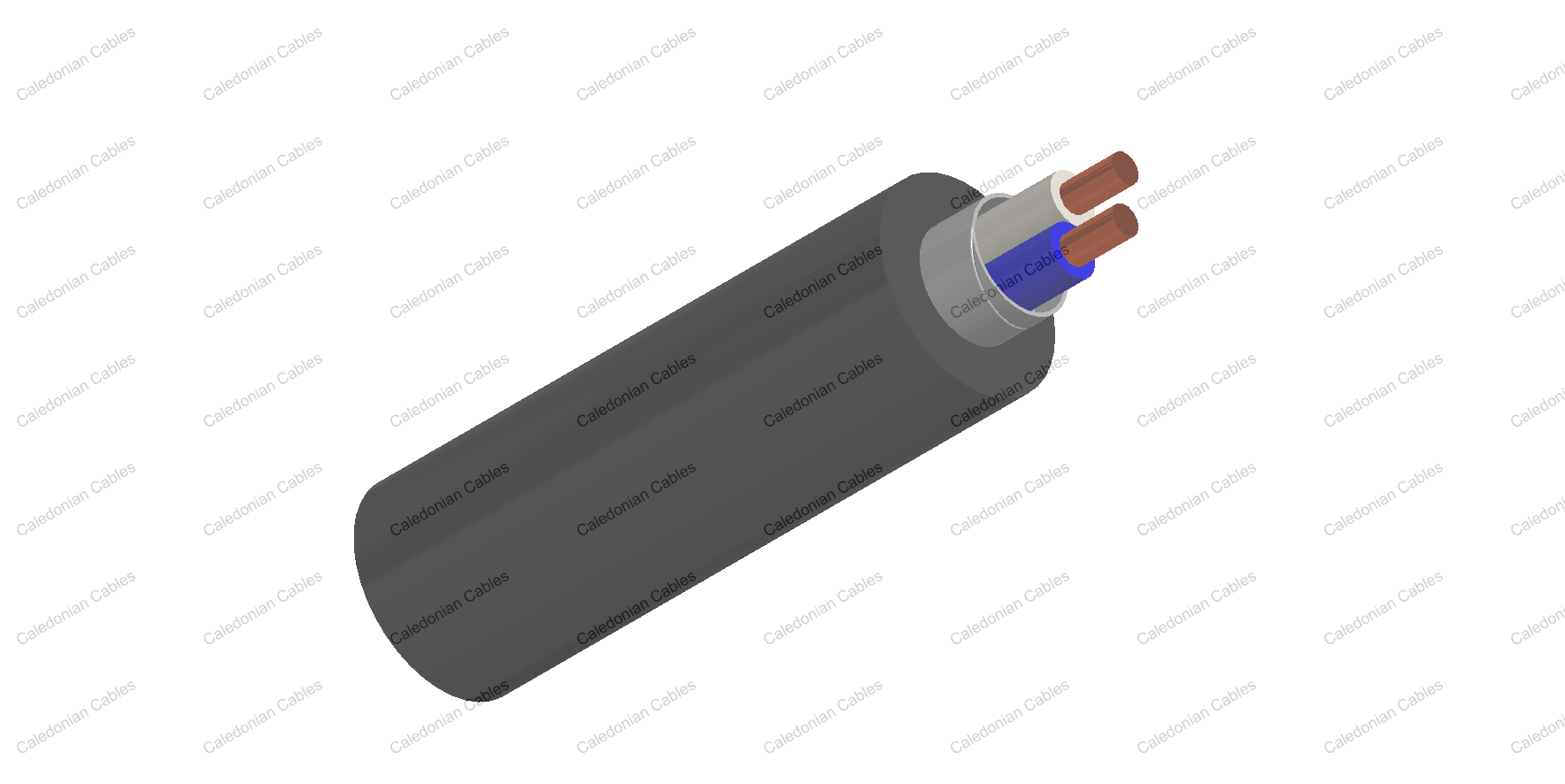

    PE Insulated & PE Sheathed Non Metallic Reinforced Drop Wires to RUS (REA) PE-7

    Application

    The drop wires are one or two pair aerial service wires designed for use in extending telephone service to subscriber premises from the cable terminal.

    Standards

    • RUS (REA) PE-7

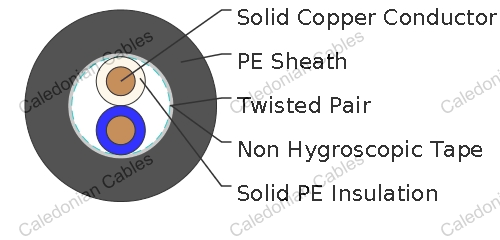

    Construction

    Conductors

    Solid annealed bare copper 0.5/0.8mm as per ASTM B-3/IEC 60228 Class 1

    Insulation

    Solid polyethylene as per ASTM D 1248/IEC 60708

    Cable Core Assembly & Core Wrapping

    Individual conductors are twisted into pairs and wrapped with PETP tape

    Strength Member

    Aramid yarn as non-metallic strength member is placed inside the sheath to provide longitudinal strength

    Sheath

    PE is extruded over the core to provide protection against mechanical damage, degradation by sunlight and water ingress

    Ripcord

    A ripcord made of polyamide is placed parallel to the core to facilitate sheath removal

    Electrical Properties

    Conductor Diameter

    mm

    0.5

    0.8

    Conductor Gauge Size

    AWG

    24

    20

    Maximum Conductor Resistance @20°C

    Ω/km / Ω/mile

    91/145.78

    34.6/55.72

    Minimum Insulation Resistance @500V DC

    MΩ.km / MΩ.mile

    10000/6214

    10000/6214

    Maximum Resistance Unbalance

    %

    2

    2

    Average Mutual Capacitance @1000Hz

    nF/km / nF/kft

    55/16.8

    55/16.8

    Maximum Capacitance Unbalance pair-to-pair

    pF/km / pF/kft

    300/91

    300/91

    Maximum Capacitance Unbalance pair-to-ground

    pF/km / pF/kft

    1000/303.4

    1000/303.4

    Impedance @0.8KHz

    Ω/km / Ω/mile

    600/965.6

    600/965.6

    Impedance @64KHz

    Ω/km / Ω/mile

    125/201.2

    125/201.2

    Impedance @772KHz

    Ω/km / Ω/mile

    100/160.9

    100/160.9

    Maximum Average Attenuation @0.8KHz

    Ω/km / Ω/mile

    1.5/2.4

    1.5/2.4

    Maximum Average Attenuation @64KHz

    Ω/km / Ω/mile

    8.0/12.87

    8.0/12.87

    Maximum Average Attenuation @772KHz

    Ω/km / Ω/mile

    18/28.97

    18/28.97

    Dielectric Strength 1min

    V

    1000DC/1500AC

    1000DC/1500AC

    Mechanical and Thermal Properties

    Temperature range during operation (fixed state): -30°C – +70°C
    Temperature range during installation (mobile state): -20°C – +50°C
    Minimum bending radius: 10 x Overall Diameter

    Color Code

      A wire B wire
    1 PR White Blue
    1 PR Yellow Black

    Dimensions And Weight

    Cable Code Number of Pairs Insulation Thickness
    mm/inch
    Sheath
    Thickness
    mm/inch
    Nominal Overall
    Diameter
    mm/inch
    Nominal Weight
    kg/km / lbs/kft
    0.5mm Conductor, 0.9mm Insulated Wire
    TP7-2Y2Y-2P05-SS-A 2 0.2/0.0079 1.2/0.047 5.0/0.197 26.2/17.6
    0.8mm Conductor, 1.36mm Insulated Wire
    TP7-2Y2Y-1P08-SS-A 1 0.28/0.0110 1.2/0.047 5.3/0.209 26.6/17.9
