    205℉/96℃ PP/NBR Flat Electrical Submersible Pump Cable

    • 205℉/96℃ PP/NBR Flat Electrical Submersible Pump Cable

    Application

    These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

    Standard

    • IEEE Std. 1019
    • API RP 11S5
    • API RP 11S6

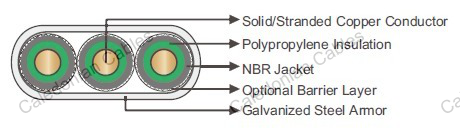

    Construction

    Conductor Solid/stranded copper conductor.
    Insulation Polypropylene insulation.
    Jacket Oil-resistant nitrile rubber. Each insulated conductor should be individually jacketed or three
    conductors laid parallel within a common encapsulated jacket.
    Optional Barrier Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
    Armor Galvanized steel.

    Dimension and Weight

    3KV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPN-96-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.59×0.56 40.5×14.2 840 1249
    QYPN-96-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.68×0.59 42.8×14.9 952 1416
    QYPN-96-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.75×0.61 44.5×15.5 1040 1547
    QYPN-96-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.86×0.65 47.2×16.4 1194 1776
    QYPN-96-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.93×0.67 49.1×17.0 1308 1947
    QYPN-96-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 2.08×0.72 52.9×18.3 1557 2318
    QYPN-96-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 2.21×0.76 56.1×19.4 1793 2669
    QYPN-96-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 2.54×0.87 64.4×22.2 2483 3695
    QYPN-96-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 2.73×0.94 69.3×23.8 2944 4381

    5kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPN-96-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.72×0.60 43.8×15.3 927 1380
    QYPN-96-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.81×0.63 46.1×16.0 1043 1552
    QYPN-96-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.88×0.65 47.8×16.6 1133 1686
    QYPN-96-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.99×0.69 50.5×17.5 1291 1922
    QYPN-96-5kV-3G25S - 25 0.222 5.639 0.09 2.3 2.06×0.71 52.4×18.1 1409 2096
    QYPN-96-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 2.21×0.76 56.2×19.4 1663 2475
    QYPN-96-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 2.34×0.81 59.5×20.5 1904 2834
    QYPN-96-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 2.67×0.92 67.8×23.3 2606 3878
    QYPN-96-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 2.86×0.98 72.6×24.9 3074 4575
