    Longitudinally Water Blocked Cable

    • Submarine Cables

    Application

    These outboard installation cables for naval vessels are transversally water blocked and longitudinally completely water blocked, designed according to VG 95218 part 29.

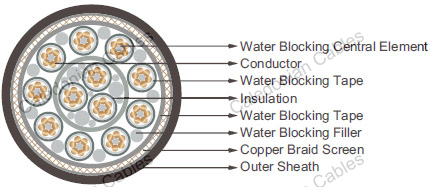

    Construction

    Conductor Copper conductor, fine stranded.
    Central Element Water-blocking central element.
    Separator Water-blocking tape.
    Insulation Special elastomer.
    Fillers Water-blocking filler.
    Separator Water-blocking tape.
    Screen Copper braid with tinned wires.
    Sheath Cross linked halogen free flame retardant compound.

    Electrical Data

    500V

    Number of Cores × Nominal Cross Section Area Maximum Transfer impedance
    No. × mm^2 m Ω /m
    2×1.5 30
    3×1.5 30
    3G1.5 30
    7×1.5 30
    4×2×0.75 30
    12×0.75 30
    12×1.5 30
    24×1.5 30

    Dimension and Weight

    500V

    Number of Cores × Nominal Cross Section Area Maximum Single Core Diameter Minimum Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Maximum Weight
    No. × mm^2 mm mm mm mm kg/km
    2×1.5 3.4 2.0 12.6 13.2 200
    3×1.5 3.4 2.0 13.4 13.8 250
    3G1.5 3.4 2.0 13.4 13.8 250
    7×1.5 3.4 1.5 15.7 16.2 430
    4×2×0.75 2.5 2.0 20.6 21.2 560
    12×0.75 2.5 2.0 18.5 19.1 540
    12×1.5 3.4 2.0 20.9 21.5 700
    24×1.5 3.4 2.0 28.1 28.7 1230
