    Electronic unscreened spiral cables (TPE-E/PUR)

    • Electronic unscreened spiral cable
    • Caledonian Spiral Cable

    APPLICATION

    These TPE-E/PUR unscreened spiral cables are used in lighting industry, machine industry, power tools, construction industry, consumer electronics, mobile equipment etc. These cables are screened against high frequency interference. Suitable for use in the control cable sectors requiring the use of screened semi-conductors.

    CONSTRUCTION

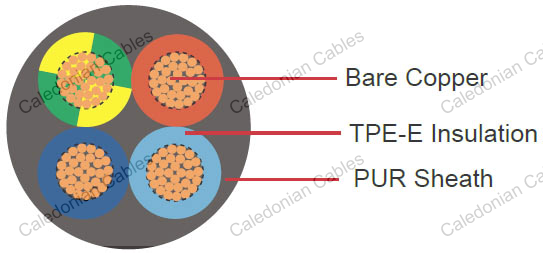

    Conductor Stranded bare copper conductors according to DIN VDE 0295
    Cores Twisted
    Core Insulation TPE-E core insulation
    Core Color Code According to VDE0293 or DIN 47100
    Sheath PUR outer sheath
    Sheath Color Black (Other colors and types are available on request)

    CHARACTERISTICS

    Temperature Rating -25°C to +85°C
    Voltage Rating  300V (up to 0.14 mm²)
    500V (up to 0.25 mm²)
    Elasticity Ratio TPE/PUR black approx 1 : 4
    Test Voltage 2000 V

    DIMENSIONS AND WEIGHT

    AWG  Cross-section Closed Spiral Lenght Cable Diameter Outer Diameter Copper Count Weight
    mm² mm mm mm kg/km
    26 2 x 0.14 300 3.50 13.00 9.20
    26 2 x 0.14 400 3.50 13.00 11.90
    26 2 x 0.14 500 3.50 13.00 15.60
    26 2 x 0.14 1000 3.50 13.00 28.10
    26 4 x 0.14 300 4.00 14.00 18.40
    26 4 x 0.14 400 4.00 14.00 23.80
    26 4 x 0.14 500 4.00 14.00 29.20
    26 4 x 0.14 1000 4.00 14.00 56.20
    26 5 x 0.14 300 4.40 15.80 22.80
    26 5 x 0.14 400 4.40 15.80 29.50
    26 5 x 0.14 500 4.40 15.80 36.20
    26 5 x 0.14 1000 4.40 15.80 69.70
    26 6 x 0.14 300 4.90 17.80 27.50
    26 6 x 0.14 400 4.90 17.80 36.70
    26 6 x 0.14 500 4.90 17.80 43.80
    26 6 x 0.14 1000 4.90 17.80 84.20
    26 7 x 0.14 300 5.20 18.40 32.00
    26 7 x 0.14 400 5.20 18.40 42.40
    26 7 x 0.14 500 5.20 18.40 50.80
    26 7 x 0.14 1000 5.20 18.40 97.80
    26 8 x 0.14 300 5.40 19.80 36.70
    26 8 x 0.14 400 5.40 19.80 47.50
    26 8 x 0.14 500 5.40 19.80 58.30
    26 8 x 0.14 1000 5.40 19.80 112.30
    24 2 x 0.25 300 3.90 13.80 16.30
    24 2 x 0.25 400 3.90 13.80 21.10
    24 2 x 0.25 500 3.90 13.80 25.90
    24 2 x 0.25 1000 3.90 13.80 49.90
    24 4 x 0.25 300 4.60 17.20 36.70
    24 4 x 0.25 400 4.60 17.20 42.20
    24 4 x 0.25 500 4.60 17.20 51.80
    24 4 x 0.25 1000 4.60 17.20 99.80
    24 5 x 0.25 300 5.40 19.80 40.80
    24 5 x 0.25 400 5.40 19.80 52.80
    24 5 x 0.25 500 5.40 19.80 64.80
    24 5 x 0.25 1000 5.40 19.80 124.80
    24 6 x 0.25 300 5.50 20.00 48.90
    24 6 x 0.25 400 5.50 20.00 63.40
    24 6 x 0.25 500 5.50 20.00 77.8
    24 6 x 0.25 1000 5.50 20.00 149.80
    24 8 x 0.25 300 6.40 23.80 65.30
    24 8 x 0.25 400 6.40 23.80 84.50
    24 8 x 0.25 500 6.40 23.80 103.70
    24 8 x 0.25 1000 6.40 23.80 199.70
    24 12 x 0.25 300 6.90 24.80 97.90
    24 12 x 0.25 400 6.90 24.80 126.70
    24 12 x 0.25 500 6.90 24.80 155.50
    24 12 x 0.25 1000 6.90 24.80 299.50
    20 2 x 0.50 300 4.60 16.20 32.60
    20 2 x 0.50 400 4.60 16.20 42.30
    20 2 x 0.50 500 4.60 16.20 51.80
    20 2 x 0.50 1000 4.60 16.20 99.80
    20 4 x 0.50 300 5.00 18.00 65.30
    20 4 x 0.50 400 5.00 18.00 84.50
    20 4 x 0.50 500 5.00 18.00 103.70
    20 4 x 0.50 1000 5.00 18.00 201.80
    20 6 x 0.50 300 6.20 22.40 97.90
    20 6 x 0.50 400 6.20 22.40 126.70
    20 6 x 0.50 500 6.20 22.40 155.50
    20 6 x 0.50 1000 6.20 22.40 299.50
    20 8 x 0.50 300 7.40 26.80 130.60
    20 8 x 0.50 400 7.40 26.80 169.00
    20 8 x 0.50 500 7.40 26.80 207.40
    20 8 x 0.50 1000 7.40 26.80 399.40
    20 12 x 0.50 300 8.20 29.40 195.80
    20 12 x 0.50 400 8.20 29.40 254.30
    20 12 x 0.50 500 8.20 29.40 311.10
    20 12 x 0.50 1000 8.20 29.40 599.10
