    PVC/PVC spiral cable

    • PVC/PVC spiral cable
    • Caledonian Spiral Cable

    APPLICATION

    These PVC spiral cables are used in lighting industry, machine industry, power tools, construction industry, consumer electronics, mobile equipment etc. These cables offers excellent low mechanical and chemical resistance capabilities; middle elastic force; has good low-cost advantage. PVC cables have a high resetpower, an excellent appearance and especially a long service life.

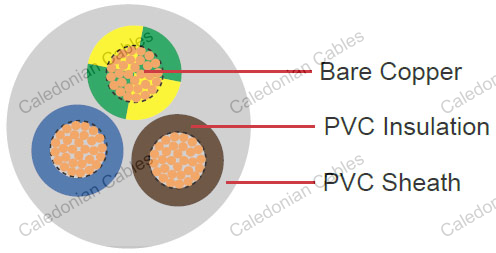

    CONSTRUCTION

    Conductor : bare copper conductors according to DIN VDE 0295 and IEC 60228 class 5

    Conductor sizes : 0.5mm² to 1.5mm², 2 to 5 cores

    Core Insulation : PVC core insulation

    Core Color Code : according to VDE 0293 or DIN 47100

    Sheath : PVC outer sheath

    Sheath color : black, white or grey

    CHARACTERISTICS

    Temperature Rating : -5°C to +70°C

    Voltage Rating :

    H03VVH8-F : 300/300V (up to 1 mm²)

    H05VVH8-F : 300/500V (from 1.5 mm²)

    Test voltage : 2000 V

    DIMENSIONS AND WEIGHT

    AWG Cross-section Closed Spiral Lenght Cable Diameter Outer Diameter Copper Count Weight
    mm² mm mm mm kg/km
    18 2 x 0.75 200 6.20 21.40 34.60
    18 2 x 0.75 400 6.20 21.40 63.40
    18 2 x 0.75 600 6.20 21.40 92.20
    18 2 x 0.75 800 6.20 21.40 121.00
    18 2 x 0.75 1000 6.20 21.40 149.80
    18 2 x 0.75 1200 6.20 21.40 178.60
    18 2 x 0.75 1400 6.20 21.40 207.40
    18 3 x 0.75 200 6.60 22.20 51.90
    18 3 x 0.75 400 6.60 22.20 95.10
    18 3 x 0.75 600 6.60 22.20 138.30
    18 3 x 0.75 800 6.60 22.20 181.50
    18 3 x 0.75 1000 6.60 22.20 224.70
    18 3 x 0.75 1200 6.60 22.20 267.80
    18 3 x 0.75 1400 6.60 22.20 311.10
    17 2 x 1.00 200 6.60 22.20 43.20
    17 2 x 1.00 400 6.60 22.20 65.30
    17 2 x 1.00 600 6.60 22.20 122.80
    17 2 x 1.00 800 6.60 22.20 161.30
    17 2 x 1.00 1000 6.60 22.20 199.70
    17 2 x 1.00 1200 6.60 22.20 238.10
    17 2 x 1.00 1400 6.60 22.20 276.50
    16 2 x 1.50 200 7.70 26.40 69.60
    16 2 x 1.50 400 7.70 26.40 127.00
    16 2 x 1.50 600 7.70 26.40 185.60
    16 2 x 1.50 800 7.70 26.40 243.60
    16 2 x 1.50 1000 7.70 26.40 301.60
    16 2 x 1.50 1200 7.70 26.40 359.60
    16 2 x 1.50 1400 7.70 26.40 417.60
    16 3 x 1.50 200 8.50 29.00 103.20
    16 3 x 1.50 400 8.50 29.00 189.20
    16 3 x 1.50 600 8.50 29.00 275.20
    16 3 x 1.50 800 8.50 29.00 361.20
    16 3 x 1.50 1000 8.50 29.00 447.20
    16 3 x 1.50 1200 8.50 29.00 533.20
    16 3 x 1.50 1400 8.50 29.00 619.20
