APPLICATION
These EPR/PUR spiral cables are used as till feeder cable and they are ideally suited for use of high quality kitchen and housekeeping utensils, lighting, electrical tools, building industry, handing equipment, entertainment equipment etc. These cables have a high reset power, an excellent appearance and especially a long service life.
CONSTRUCTION

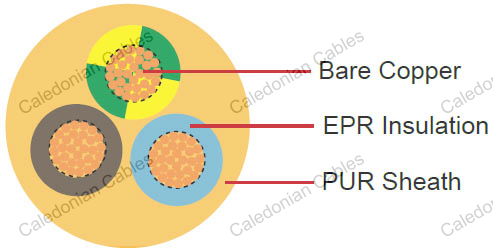

Conductor |
Stranded bare copper conductors according to VDE 0295 class 5 |
Cores Twisted |
|
Core Insulation |
EPR core insulation |
Core Color Code |
According to VDE0293 or DIN 47100 |
Sheath |
PUR outer sheath |
Sheath Color |
Orange (Other colors and types are available on request) |
CHARACTERISTICS
Temperature Rating |
-25°C to +80°C |
Voltage Rating |
H05BQ-F 300V/500V (up to 1 mm²) |
|
For type H07BQ-F 450/750 V (up to 1.5mm²) |
Elasticity Ratio |
EPR/PUR black approx 1 : 5 |
Test Voltage |
H05BQ-F 2000 V, for type H07BQ-F 2500V |
DIMENSIONS AND WEIGHT
AWG |
Cross-section |
Closed Spiral Lenght |
Cable Diameter |
Outer Diameter |
Copper Count Weight |
mm² |
mm |
mm |
mm |
kg/km |
18 |
2 x 0.75 |
300 |
6.50 |
23.00 |
59.00 |
18 |
2 x 0.75 |
500 |
6.50 |
23.00 |
77.80 |
18 |
2 x 0.75 |
1000 |
6.50 |
23.00 |
149.80 |
18 |
2 x 0.75 |
1500 |
6.50 |
23.00 |
221.80 |
18 |
2 x 0.75 |
3000 |
6.50 |
23.00 |
437.80 |
18 |
3 x 0.75 |
300 |
7.10 |
25.20 |
73.50 |
18 |
3 x 0.75 |
500 |
7.10 |
25.20 |
116.70 |
18 |
3 x 0.75 |
1000 |
7.10 |
25.20 |
224.70 |
18 |
3 x 0.75 |
1500 |
7.10 |
25.20 |
332.60 |
18 |
3 x 0.75 |
3000 |
7.10 |
25.20 |
656.60 |
18 |
4 x 0.75 |
300 |
7.90 |
28.80 |
98.60 |
18 |
4 x 0.75 |
500 |
7.90 |
28.80 |
156.60 |
18 |
4 x 0.75 |
1000 |
7.90 |
28.80 |
301.60 |
18 |
4 x 0.75 |
1500 |
7.90 |
28.80 |
446.60 |
18 |
4 x 0.75 |
3000 |
7.90 |
28.80 |
881.60 |
18 |
5 x 0.75 |
300 |
8.60 |
31.20 |
122.40 |
18 |
5 x 0.75 |
500 |
8.60 |
31.20 |
194.40 |
18 |
5 x 0.75 |
1000 |
8.60 |
31.20 |
374.40 |
18 |
5 x 0.75 |
1500 |
8.60 |
31.20 |
554.40 |
18 |
5 x 0.75 |
3000 |
8.60 |
31.20 |
1094.40 |
17 |
2 x 1.00 |
300 |
6.80 |
24.60 |
65.30 |
17 |
2 x 1.00 |
500 |
6.80 |
24.60 |
103.70 |
17 |
2 x 1.00 |
1000 |
6.80 |
24.60 |
199.70 |
17 |
2 x 1.00 |
1500 |
6.80 |
24.60 |
295.70 |
17 |
2 x 1.00 |
3000 |
6.80 |
24.60 |
583.70 |
17 |
3 x 1.00 |
300 |
7.20 |
26.40 |
98.60 |
17 |
3 x 1.00 |
500 |
7.20 |
26.40 |
156.60 |
17 |
3 x 1.00 |
1000 |
7.20 |
26.40 |
301.60 |
17 |
3 x 1.00 |
1500 |
7.20 |
26.40 |
446.60 |
17 |
3 x 1.00 |
3000 |
7.20 |
26.40 |
881.60 |
17 |
4 x 1.00 |
300 |
7.80 |
28.60 |
130.60 |
17 |
4 x 1.00 |
500 |
7.80 |
28.60 |
207.40 |
17 |
4 x 1.00 |
1000 |
7.80 |
28.60 |
399.40 |
17 |
4 x 1.00 |
1500 |
7.80 |
28.60 |
591.40 |
17 |
4 x 1.00 |
3000 |
7.80 |
28.60 |
1167.40 |
17 |
5 x 1.00 |
300 |
9.00 |
32.00 |
163.20 |
17 |
5 x 1.00 |
500 |
9.00 |
32.00 |
259.20 |
17 |
5 x 1.00 |
1000 |
9.00 |
32.00 |
499.20 |
17 |
5 x 1.00 |
1500 |
9.00 |
32.00 |
739.20 |
17 |
5 x 1.00 |
3000 |
9.00 |
32.00 |
1459.20 |
16 |
2 x 1.50 |
300 |
8.50 |
30.00 |
98.60 |
16 |
2 x 1.50 |
500 |
8.50 |
30.00 |
156.60 |
16 |
2 x 1.50 |
1000 |
8.50 |
30.00 |
301.60 |
16 |
2 x 1.50 |
1500 |
8.50 |
30.00 |
446.60 |
16 |
2 x 1.50 |
3000 |
8.50 |
30.00 |
881.60 |
16 |
3 x 1.50 |
300 |
8.90 |
32.80 |
146.20 |
16 |
3 x 1.50 |
500 |
8.90 |
32.80 |
232.20 |
16 |
3 x 1.50 |
1000 |
8.90 |
32.80 |
447.20 |
16 |
3 x 1.50 |
1500 |
8.90 |
32.80 |
662.20 |
16 |
3 x 1.50 |
3000 |
8.90 |
32.80 |
1307.20 |
16 |
5 x 1.50 |
300 |
10.90 |
38.80 |
244.80 |
16 |
5 x 1.50 |
500 |
10.90 |
38.80 |
388.80 |
16 |
5 x 1.50 |
1000 |
10.90 |
38.80 |
748.80 |
16 |
5 x 1.50 |
1500 |
10.90 |
38.80 |
1108.80 |
16 |
5 x 1.50 |
3000 |
10.90 |
38.80 |
2188.80 |
16 |
7 x 1.50 |
300 |
12.60 |
46.40 |
343.40 |
16 |
7 x 1.50 |
500 |
12.60 |
46.40 |
545.40 |
16 |
7 x 1.50 |
1000 |
12.60 |
46.40 |
1050.40 |
16 |
7 x 1.50 |
1500 |
12.60 |
46.40 |
1555.40 |
16 |
7 x 1.50 |
3000 |
12.60 |
46.40 |
3070.40 |
16 |
12 x 1.50 |
300 |
16.60 |
65.20 |
588.20 |
16 |
12 x 1.50 |
500 |
16.60 |
65.20 |
934.20 |
16 |
12 x 1.50 |
1000 |
16.60 |
65.20 |
1799.20 |
16 |
12 x 1.50 |
1500 |
16.60 |
65.20 |
2664.20 |
16 |
12 x 2.50 |
3000 |
16.60 |
65.20 |
5259.20 |
14 |
3 x 2.50 |
300 |
10.60 |
38.20 |
244.80 |
14 |
3 x 2.50 |
500 |
10.60 |
38.20 |
388.80 |
14 |
3 x 2.50 |
1000 |
10.60 |
38.20 |
748.80 |
14 |
3 x 2.50 |
1500 |
10.60 |
38.20 |
1108.80 |
14 |
3 x 2.50 |
3000 |
10.60 |
38.20 |
2188.80 |
14 |
5 x 2.50 |
300 |
13.20 |
48.40 |
408.00 |
14 |
5 x 2.50 |
500 |
13.20 |
48.40 |
648.00 |
14 |
5 x 2.50 |
1000 |
13.20 |
48.40 |
1248.00 |
14 |
5 x 2.50 |
1500 |
13.20 |
48.40 |
1848.00 |
14 |
5 x 2.50 |
3000 |
13.20 |
48.40 |
3648.00 |
