    FIREROL Thin Wall Screened Single Core Cables With Standard Wall Sheath (250V)

    NF F 63-808 (FRF-TW-025S-OS)

    Application

    These cables are used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses, switchboards and control panels, driver desks etc

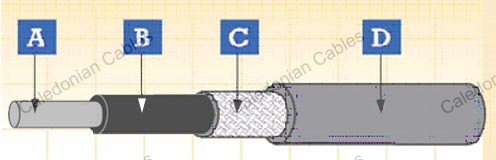

    Construction

    Conductor Stranded tinned copper wires
    Insulation Radiation crosslinkable LSZH compound
    Screen Tinned copper braid
    Sheath Radiation crosslinkable LSZH compound

    Electrical & Mechanical Properties

    Nominal Voltage 250V
    Max. Conductor Temperature 105°C/125°C
    Temperature Range -40°C~+105°C
    Bending Radius 5 × Overall Diameter

    Fire Performance for Rolling Stock Application

    NF F 63-808

    NF F 16-101

    BS 6853

    DIN 5510

    EN54454-2

    Fire Performance in general

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853  Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRF-TW-025S-OS 250 V

    Nominal Cross Sectional Area Number & Nominal Diameter of Strands Overall Diameter Weight
    Min. Max.
    mm² No/mm mm mm kg/km
    0.38 19/0.16 2.05 2.55 11.5
    0.60 19/0.20 2.30 2.80 15.0
    0.93 19/0.25 2.50 3.00 18.8
    1.34 19/0.30 2.70 3.20 24.2
    1.82 37/0.25 3.30 3.75 32.0
    2.61 37/0.30 3.60 4.20 43.0
    4.32 61/0.30 4.15 4.75 63.0
