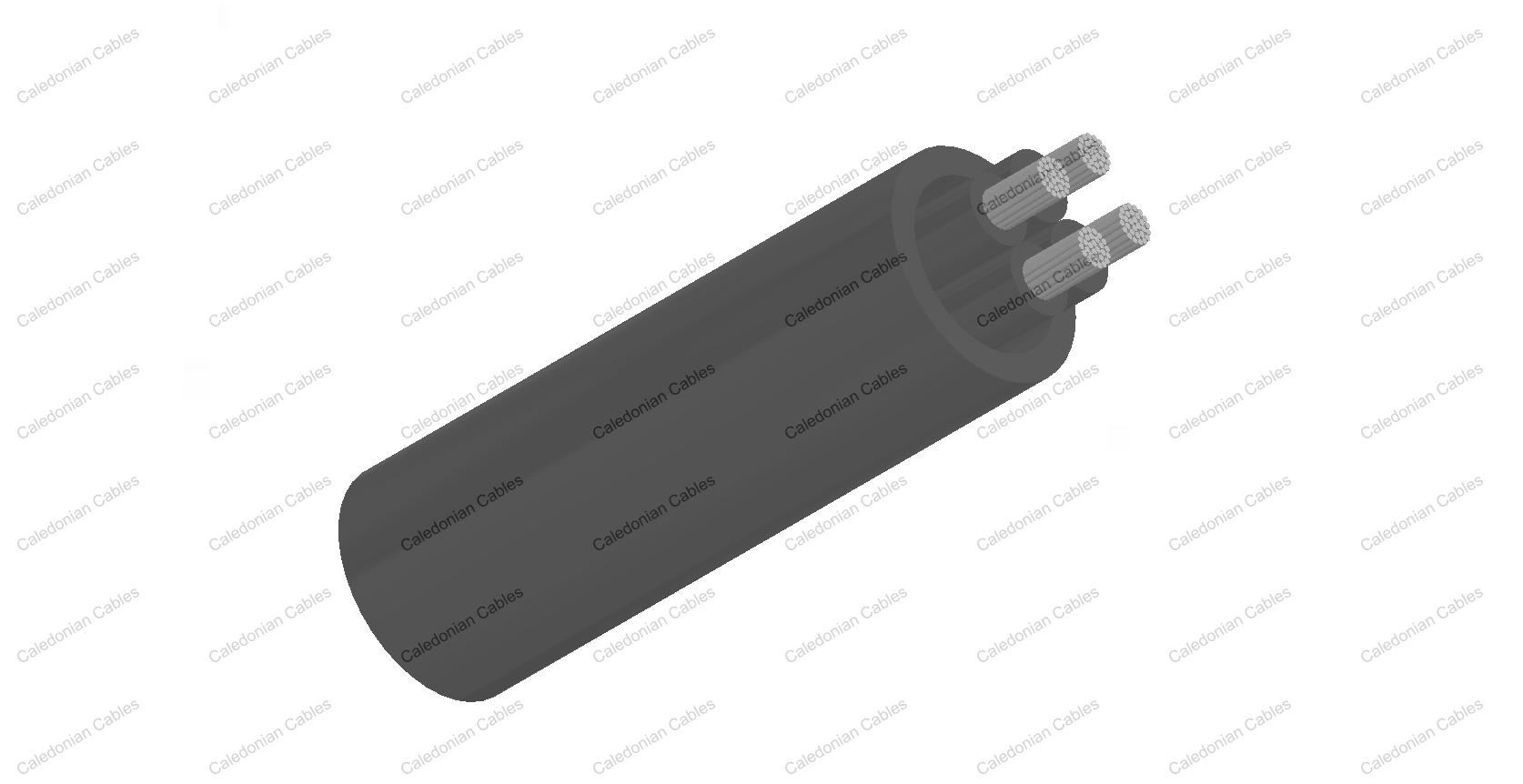

    FIREROL Standard Wall Multicore Unscreened Cables (500V)

    NF F 63-826 (FRF-SW-05M)

    Application

    These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for use in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

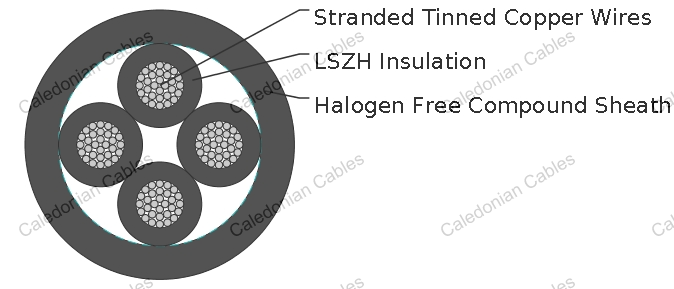

    Construction

    Conductor Stranded tinned copper wires to IEC 60228 Class 5
    Insulation Halogen free compound
    Sheath Halogen free compound

    Electrical & Mechanical Properties

    Nominal Voltage 500V
    Max. Conductor Temperature 90°C/105°C
    Temperature Range -25°C~90°C
    Bending Radius 4 × Overall Diameter

    Fire Performance for Rolling Stock Application

    NF F 63-826

    NF F 16-101

    BS 6853

    EN54454-2

    Fire Performance in general

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853  Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRF-SW-05M 500V

    Number of Cores Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Sheath Thickness Overall Diameter Weight
    Min. Max.
    - mm² No/mm mm mm mm kg/km
    2 1.5 30/0.25 1.0 8.6 9.9 115
    4 1.5 30/0.25 1.1 10.1 11.4 160
    7 1.5 30/0.25 1.1 11.9 13.3 245
    13 1.5 30/0.25 1.2 16.5 18.0 425
    19 1.5 30/0.25 1.2 18.3 19.9 675
    37 1.5 30/0.25 1.5 25.1 27.1 1170
    2 2.5 50/0.25 1.1 10.0 11.3 185
    4 2.5 50/0.25 1.2 11.7 13.1 275
    13 2.5 50/0.25 1.4 19.5 21.1 750
    19 2.5 50/0.25 1.4 21.6 23.4 980
