    Low Smoke Halogen Free Flame Retardant Rolling Stock Multicore Jumper Cables (750V) 2×2×1.25+5×2×1.25+3×3×1.25

    WDZ-DCKT-P-125 750V

    2×2×1.25+5×2×1.25+3×3×1.25

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

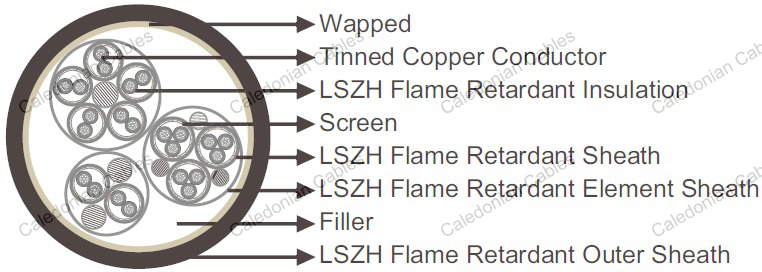

    Construction

    5×2×50/0.18mm² &2×2×1.25mm² Element Tinned copper wires with low smoke halogen free flame retardant insulation. Two insulated wires are twisted together to form a pair. Every pair is screened and sheathed. Pairs are stranded with fillers and covered with an element sheath.
    3×3×1.25mm² Element Tinned copper wires with low smoke halogen free flame retardant insulation. There insulated wires are twisted together to form a triple. Every triple is screened and sheathed. Triples are stranded with fillers and covered with an element sheath.
    Filler
    Wrapped
    Outer Sheath Low smoke halogen free flame retardant compound.

    Electrical & Mechanical Properties

    Nominal Voltage 750V
    Long-term Working Temperature 125°C
    Lowest Operation Temperature -25°C
    Minimum Bending Radius 6 x Overall Diameter

    Fire Performance

    Flame Retardant GB/T 18380.1-2001; GB/T 18380.3-2001 C
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCKT-P-125

    Number of conductor×Nominal Cross-Sectional Area Conductor Construction Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter
    mm² No/mm mm mm mm mm
    2×2×1.25+5×2×1.25+3×3×1.25 2×2×50/0.18+5×2×50/0.18+3×3×50/0.18 0.8 0.8/1.0 3.5 56
