    Low Smoke Halogen Free Flame Retardant Single Core Cables (1.8/3kV)

    WDZ-DCEVM-100, WDZ-DCEVM-125 1.8/3kV

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

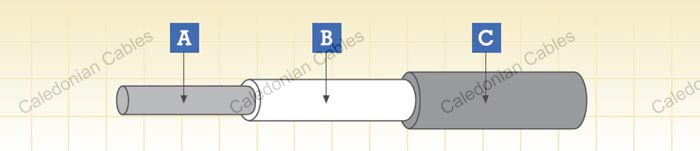

    Construction

    Conductor Tinned copper wires
    Separator (if available)
    Insulation Low smoke halogen free flame retardant compound
    Sheath Low smoke halogen free flame retardant compound

    Electrical & Mechanical Properties

    Nominal Voltage 1.8/3kV
    Long-term Working Temperature 100°C (WDZ-DCEVM-100); 125°C (WDZ-DCEVM-125)
    Lowest Operation Temperature -40°C
    Minimum Bending Radius

    2 x Overall Diameter (OD≤10mm);

    4 x Overall Diameter (10mm≤OD≤20mm);

    6 x Overall Diameter (OD≥20mm)

    Fire Performance

    Flame Retardant GB/T18380.1-2001; GB/T18380.3-2001 C
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCEVM-100, WDZ-DCEVM-125 1.8/3kV

    Nominal Cross- Sectional Area Conductor Construction Nominal Insulation Thickness Nominal Sheath Thickness Maximum Overall Diameter Maximum Conductor Resistance 20°C
    mm² No/mm mm mm mm Ω/km
    2.5 77/0.20 0.9 0.9 6.5 8.21
    4 77/0.26 0.9 0.9 7.2 5.09
    6 84/0.30 0.9 0.9 7.9 3.39
    10 84/0.40 1.0 0.9 9.2 1.95
    16 126/0.40 1.0 1.0 11.0 1.24
    25 196/0.40 1.2 1.1 13.2 0.795
    35 276/0.40 1.2 1.1 14.5 0.565
    50 396/0.40 1.2 1.1 16.2 0.393
    70 380/0.49 1.4 1.4 19.0 0.277
    95 513/0.49 1.6 1.6 22.0 0.210
    120 630/0.49 1.6 1.6 24.0 0.164
    150 777/0.49 1.8 1.7 26.0 0.132
    185 976/0.49 1.8 1.7 28.5 0.108
    240 1281/0.49 1.8 1.7 30.9 0.0817
    300 1586/0.49 1.8 1.7 33.5 0.0654
