100°C Single Core Cables (250V, 750V, 1.5kV, 3kV)

DCEYH, DCEYHR, DCEH/3-100 250V, 750V, 1.5kV, 3kV

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

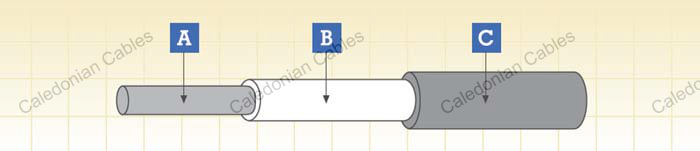

Construction

Conductor	Tinned annealed copper wires
Separator (if available)
Insulation	EPDM insulation
Sheath	CSM Sheath

Electrical & Mechanical Properties

Nominal Voltage	250V, 750V, 1.5kV, 3kV
Long-term Working Temperature	100°C
Lowest Installation Temperature	-25°C
Minimum Bending Radius	6 x Overall Diameter (OD≤20mm); 8 x Overall Diameter (OD≥20mm)

Fire Performance

Flame Retardant

GB/T18380.1-2001

DCEYH 250V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
0.5	-	0.4	2.8	12	40.1
0.75	7/0.37	0.4	3.2	15	24.8
1.0	7/0.43	0.4	3.2	19	18.7
1.5	19/0.32	0.4	3.5	25	12.5
2.5	19/0.41	0.4	4.3	36	7.59

DCEYHR 250V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
0.5	16/0.20	0.4	2.8	12	40.1
0.75	24/0.20	0.4	3.2	15	26.7
1.0	32/0.20	0.4	3.2	19	20.0
1.5	30/0.25(48/0.20)	0.4	3.5	25	13.7
2.5	49/0.25(77/0.20)	0.4	4.3	36	8.21

DCEYH 750V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
0.75	7/0.37	0.6	4.0	21	24.8
1.0	7/0.43	0.6	4.1	24	18.7
1.5	19/0.32	0.6	4.4	31	12.5
2.5	19/0.41	0.7	5.1	45	7.59
4	19/0.52	0.7	5.7	63	4.54
6	19/0.64	0.7	6.4	86	3.00
10	49/0.52	0.8	8.6	152	1.78
16	84/0.49	0.8	10.5	243	1.20
25	133/0.49	1.0	13.0	350	0.760
35	189/0.49	1.0	14.5	471	0.535
50	259/0.49	1.2	17.0	624	0.390
70	259/0.58	1.2	19.0	830	0.271
95	259/0.68	1.4	21.5	1137	0.197
120	336/0.67	1.4	23.5	1400	0.156
150	427/0.67	1.8	27.8	1817	0.123
185	570/0.67	1.8	29.5	2186	0.101
240	732/0.64	2.2	34.0	2683	0.0787
300	912/0.64	2.2	37.0	3462	0.0632

DCEYHR 750V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
0.75	24/0.20	0.6	4.0	21	26.7
1.0	32/0.20	0.6	4.1	24	20.0
1.5	30/0.25(48/0.20)	0.6	4.4	31	13.7
2.5	49/0.25(77/0.20)	0.7	5.1	45	8.21
4	56/0.30(128/0.20)	0.7	5.7	63	5.09
6	84/0.30	0.7	6.4	86	3.39
10	84/0.40	0.8	8.6	152	1.95
16	126/0.40	0.8	10.5	243	1.24
25	196/0.40	1.0	13.0	350	0.795
35	276/0.40	1.0	14.5	471	0.565
50	396/0.40	1.2	17.0	624	0.393
70	380/0.49	1.2	19.0	830	0.277
95	513/0.49	1.4	21.5	1137	0.210
120	630/0.49	1.4	23.5	1400	0.164
150	777/0.49	1.8	27.8	1817	0.132
185	976/0.49	1.8	29.5	2186	0.108
240	1281/0.49	2.2	34.0	2683	0.0817
300	1586/0.49	2.2	37.0	3462	0.0654

DCEH/3-100 750V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
0.5	16/0.20(28/0.15)	0.6	4.4	17	40.1
0.75	24/0.20(42/0.15)	0.6	4.7	21	26.7
1.0	32/0.20(56/0.15)	0.6	4.9	24	20.0
1.5	30/0.25(85/0.15)	0.6	5.4	31	13.7
2.5	50/0.25(140/0.15)	0.7	5.2	45	8.21
4	56/0.30(228/0.15)	0.7	6.8	63	5.09
6	84/0.30(189/0.20)	0.7	7.8	86	3.39
10	80/0.40(324/0.20)	0.8	9.0	152	1.95
16	126/0.40(513/0.20)	0.8	10.5	243	1.24
25	196/0.40(783/0.20)	1.0	13.0	350	0.795
35	276/0.40(1107/0.20)	1.0	14.5	471	0.565
50	396/0.40(702/0.30)	1.2	17.0	624	0.393
70	360/0.50(999/0.30)	1.2	19.5	830	0.277
95	475/0.50(1332/0.30)	1.4	21.5	1137	0.210
120	608/0.50(1702/0.30)	1.4	23.5	1400	0.164
150	756/0.50(2109/0.30)	1.8	28.0	1817	0.132
185	925/0.50(1443/0.40)	1.8	29.5	2186	0.108
240	1221/0.50(1891/0.40)	2.2	34.0	2683	0.0817
300	1525/0.50(2379/0.40)	2.2	37.0	3462	0.0654

DCEYH 1500V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
1.0	7/0.43	0.8	4.9	32	18.7
1.5	19/0.32	0.8	5.3	40	12.5
2.5	19/0.41	0.9	6.2	58	7.59
4	19/0.52	0.9	6.8	77	4.54
6	19/0.64	0.9	7.5	101	3.0
10	49/0.52	1.0	9.5	169	1.78
16	84/0.49	1.0	11.0	250	1.20
25	133/0.49	1.2	13.5	361	0.76
35	189/0.49	1.2	15.0	483	0.535
50	259/0.49	1.4	17.9	651	0.390
70	259/0.58	1.4	19.0	864	0.271
95	259/0.68	1.6	22.5	1177	0.197
120	336/0.67	1.6	24.0	1443	0.156
150	427/0.67	2.0	27.0	1840	0.123
185	570/0.67	2.0	29.0	2211	0.101
240	732/0.64	2.4	35.0	2926	0.0787
300	912/0.64	2.4	38.0	3529	0.0632

DCEYHR 1500V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
1.0	32/0.20	0.8	4.9	32	20.0
1.5	30/0.25(48/0.20)	0.8	5.3	40	13.7
2.5	49/0.25(77/0.20)	0.9	6.2	58	8.21
4	56/0.30(128/0.20)	0.9	6.8	77	5.09
6	84/0.30	0.9	7.5	101	3.39
10	84/0.40	1.0	9.5	169	1.95
16	126/0.40	1.0	11.0	250	1.24
25	196/0.40	1.2	13.5	361	0.795
35	276/0.40	1.2	15.0	483	0.565
50	396/0.40	1.4	17.9	651	0.393
70	380/0.49	1.4	19.0	864	0.277
95	513/0.49	1.6	22.5	1177	0.210
120	630/0.49	1.6	24.0	1443	0.164
150	777/0.49	2.0	27.0	1840	0.132
185	976/0.49	2.0	29.0	2211	0.108
240	1281/0.49	2.4	35.0	2926	0.0817
300	1586/0.49	2.4	38.0	3529	0.0654

DCEH/3-100 1500V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
1.0	32/0.20(56/0.15)	0.8	6.0	32	20.0
1.5	30/0.25(85/0.15)	0.8	6.6	40	13.7
2.5	50/0.25(140/0.15)	0.9	7.6	58	8.21
4	56/0.30(228/0.15)	0.9	8.2	77	5.09
6	84/0.30(189/0.20)	0.9	8.8	101	3.39
10	84/0.40(324/0.20)	1.0	9.8	169	1.95
16	126/0.40(513/0.20)	1.0	11.0	250	1.24
25	196/0.40(783/0.20)	1.2	13.5	361	0.795
35	276/0.40(1107/0.20)	1.2	15.0	483	0.565
50	396/0.40(702/0.30)	1.4	18.0	651	0.393
70	360/0.50(999/0.30)	1.4	19.5	864	0.277
95	475/0.50(1332/0.30)	1.6	22.5	1177	0.210
120	608/0.50(1702/0.30)	1.6	24.5	1443	0.164
150	756/0.50(2109/0.30)	2.0	28.0	1840	0.132
185	925/0.50(1443/0.40)	2.0	30.0	2211	0.101
240	1221/0.50(1891/0.40)	2.4	35.0	2926	0.0817
300	1525/0.50(2379/0.40)	2.4	38.0	3529	0.0654

DCEYH 3000V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
2.5	19/0.41	1.4	8.0	83	7.59
4	19/0.52	1.4	8.6	104	4.54
6	19/0.64	1.4	9.2	131	3.0
10	49/0.52	1.6	11.2	205	1.78
16	84/0.49	1.6	15.5	281	1.20
25	133/0.49	1.8	15.5	410	0.76
35	189/0.49	1.8	17.0	539	0.535
50	259/0.49	2.0	20.0	733	0.390
70	259/0.58	2.0	22.0	954	0.271
95	259/0.68	2.2	24.5	1200	0.197
120	336/0.67	2.2	26.5	1556	0.156
150	427/0.67	2.6	30.0	1966	0.123
185	570/0.67	2.6	32.0	2348	0.101
240	732/0.64	3.0	37.0	3089	0.0787
300	912/0.64	3.0	40.0	3702	0.0632

DCEYHR 3000V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
2.5	49/0.25(77/0.20)	1.4	8.0	83	8.21
4	56/0.30(128/0.20)	1.4	8.6	104	5.09
6	84/0.30	1.4	9.2	131	3.39
10	84/0.40	1.6	11.2	205	1.95
16	126/0.40	1.6	15.5	281	1.24
25	196/0.40	1.8	15.5	410	0.795
35	276/0.40	1.8	17.0	539	0.565
50	396/0.40	2.0	20.0	733	0.393
70	380/0.49	2.0	22.0	954	0.277
95	513/0.49	2.2	24.5	1200	0.210
120	630/0.49	2.2	26.5	1556	0.164
150	777/0.49	2.6	30.0	1966	0.132
185	976/0.49	2.6	32.0	2348	0.108
240	1281/0.49	3.0	37.0	3089	0.0817
300	1586/0.49	3.0	40.0	3702	0.0654

DCEH/3-100 3000V

Nominal Cross- Sectional Area	Conductor Construction	Nominal Insulation Thickness	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	kg/km	Ω/km
2.5	50/0.25(140/0.15)	1.4	8.6	83	8.21
4	56/0.30(228/0.15)	1.4	9.2	104	5.09
6	84/0.30(189/0.20)	1.4	10.0	131	3.39
10	80/0.40(324/0.20)	1.6	12.5	205	1.95
16	126/0.40(513/0.20)	1.6	15.5	281	1.24
25	196/0.40(783/0.20)	1.8	15.5	410	0.795
35	276/0.40(1107/0.20)	1.8	17.0	539	0.565
50	396/0.40(702/0.30)	2.0	20.0	733	0.393
70	360/0.50(999/0.30)	2.0	22.0	954	0.277
95	475/0.50(1332/0.30)	2.2	24.5	1200	0.210
120	608/0.50(1702/0.30)	2.2	26.5	1556	0.164
150	756/0.50(2109/0.30)	2.6	30.0	1966	0.132
185	925/0.50(1443/0.40)	2.6	32.0	2348	0.108
240	1221/0.50(1891/0.40)	3.0	37.0	3089	0.0817
300	1525/0.50(2379/0.40)	3.0	40.0	3702	0.0654
