Application
120 Ohm data transmission cables.
Construction
Multipair Databus RS 485 Double Screened Cable :
| Conductors |
Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²). |
| Insulation |
Cross linked Foam PE. |
| Cable Element |
Twisted pair. |
| Individual Screen |
Individual Aluminium Tape. |
| Overall Screen |
Copper Wire Braid. |
| Core Wrapping |
Plastic tape(s). |
| Outer Sheath |
Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1. |

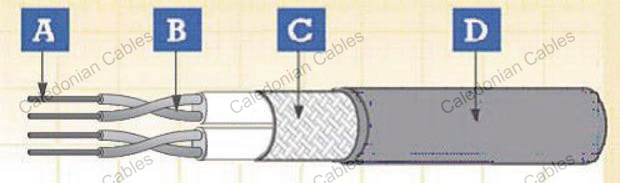

Multipair Databus RS 485 Single Screened Cable :
| Conductor |
Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²). |
| Insulation |
Cross linked Foam PE. |
| Cable Element |
Twisted pair. |
| Overall Screen |
Copper Wire Braid. |
| Outer Sheath |
Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1. |
Electrical & Mechanical Properties
| Nominal Voltage |
300/500V |
| Impedance |
120Ω+/-15% |
| Capacitance@1KHz |
41nF/km |
| Insulation Resistance |
5000MΩ |
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
| EN54454-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
| EN45545-2 |
Requirement for fire behavior of materials & components R15/R16 |
FRL-MVB-02Y(ST)CH-IOS-xPyS 300/500V
| No.of pair x |
Nominal Cross Sectional Area y |
Number & Nominal Diameter of Strands |
Nominal Overall Diameter |
Nominal Weight |
| mm² |
No/mm |
mm |
kg/km |
| 1 |
0.22 |
7/0.2 |
4.5 |
58 |
| 2 |
0.22 |
7/0.2 |
6.2 |
79 |
| 4 |
0.22 |
7/0.2 |
6.5 |
118 |
| 1 |
0.5 |
16/0.2 |
6.6 |
79 |
| 2 |
0.5 |
16/0.2 |
9.0 |
105 |
| 4 |
0.5 |
16/0.2 |
9.8 |
145 |
| 1 |
0.75 |
24/0.2 |
9.5 |
115 |
| 2 |
0.75 |
24/0.2 |
10.3 |
135 |
| 4 |
0.75 |
24/0.2 |
11.6 |
182 |
| 1 |
1 |
30/0.2 |
11.5 |
125 |
| 2 |
1 |
30/0.2 |
12.5 |
150 |
| 4 |
1 |
30/0.2 |
13.5 |
180 |
FRL-MVB-02YCH-OS-xPyS 300/500V
| No.of pair x |
Nominal Cross Sectional Area y |
Number & Nominal Diameter of Strands |
Nominal Overall Diameter |
Nominal Weight |
| mm² |
No/mm |
mm |
kg/km |
| 1 |
0.22 |
7/0.2 |
4.2 |
55 |
| 2 |
0.22 |
7/0.2 |
5.9 |
75 |
| 4 |
0.22 |
7/0.2 |
6.2 |
115 |
| 1 |
0.5 |
16/0.2 |
6.3 |
75 |
| 2 |
0.5 |
16/0.2 |
8.5 |
100 |
| 4 |
0.5 |
16/0.2 |
9.4 |
140 |
| 1 |
0.75 |
24/0.2 |
9.0 |
110 |
| 2 |
0.75 |
24/0.2 |
9.7 |
130 |
| 4 |
0.75 |
24/0.2 |
11.1 |
178 |
| 1 |
1 |
30/0.2 |
11.0 |
120 |
| 2 |
1 |
30/0.2 |
12.0 |
145 |
| 4 |
1 |
30/0.2 |
13.0 |
175 |
