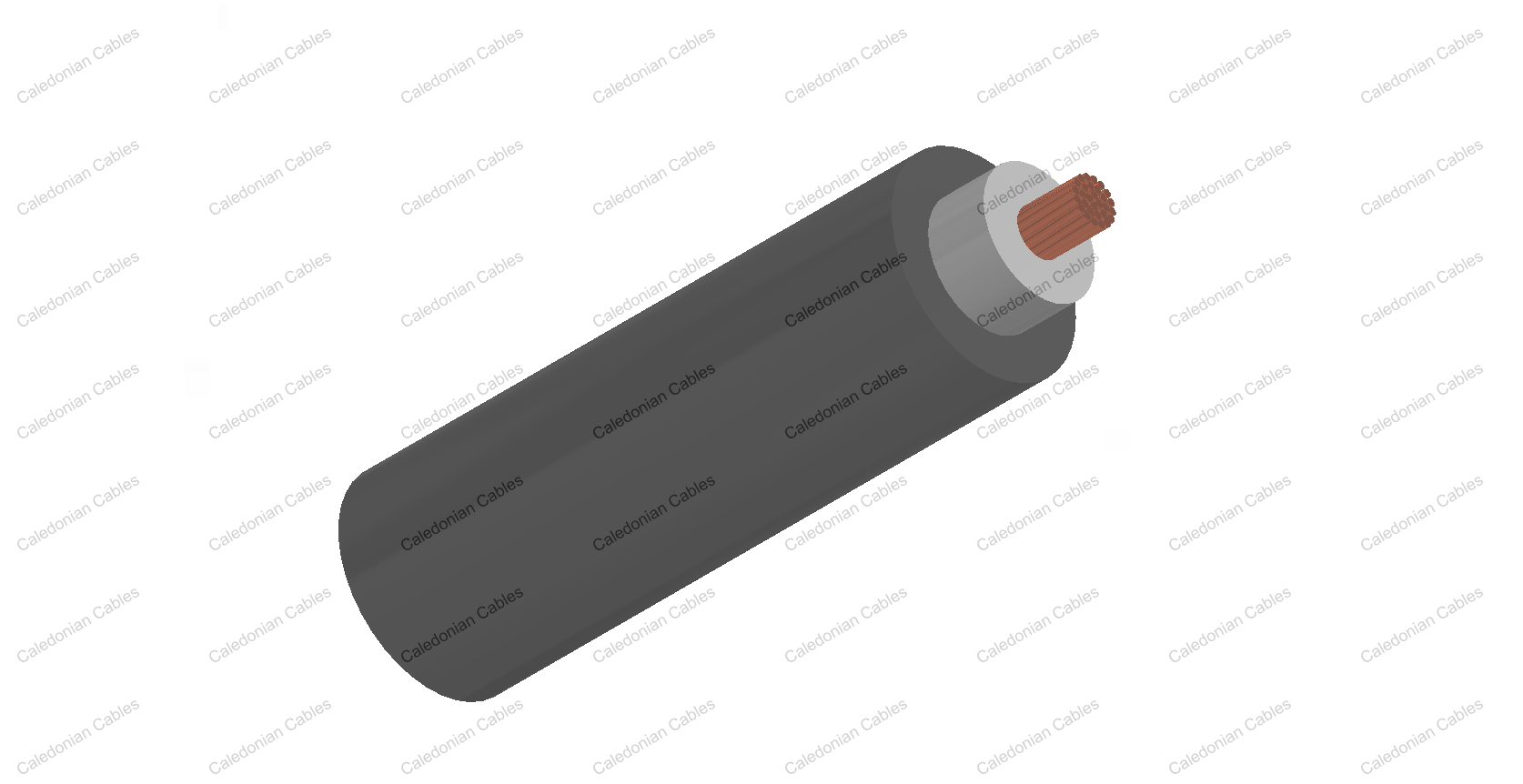

    FIREROL Standard Wall Single Core Sheathed Cables 1.8/3 kV or 3.6/6 kV

    EN 50264-2-1 (FRL-SW-3S, FRL-SW-6S)

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

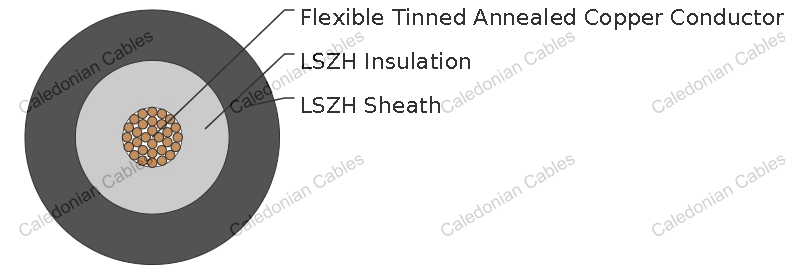

    Construction

    Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
    Insulation LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)
    Sheath LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

    Electrical & Mechanical Properties

    Nominal Voltage 1.8/3 kV or 3.6/6 kV
    Maximum Conductor Temperature 90°C ( fixed installation )
    Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation )
    Bending Radius 3 x Overall Diameter (D<12mm)
    4 x Overall Diameter (D>12mm)

    Chemical & Environmental Propertie

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

    Fire Performance for Rolling Stock Application

    EN 50306-2 Hazard levels HL1, HL2, HL3
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0
    EN45545-2 R15 Interior/ R16 Exterior HL1, HL2, HL3

    Fire Performance in General

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN 45545-2 Requirement for fire behavior of matreial & components R15/R16

    FRL-SW-3S 1.8/3 kV

    Nominal Cross-Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Min. Mean Thickness of Sheath Overall Diameter Weight Max. Conductor Resistance Min. Insulation Resistance
    min max 20°C 20°C 90°C
    mm² mm mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    1.5 1.5 1.3 1.4 6.7 7.8 80 13.70 960 9.6
    2.5 1.95 1.3 1.4 7.1 8.3 100 8.21 850 8.5
    4.0 2.5 1.3 1.4 7.6 8.9 120 5.09 750 7.5
    6.0 3.0 1.3 1.4 8.1 9.5 140 3.39 670 6.7
    10 3.9 2.2 1.4 10.6 12.4 250 1.95 550 5.5
    16 5.0 2.2 1.4 11.7 13.6 310 1.24 450 4.5
    25 6.4 2.2 1.4 13.0 15.2 410 0.795 390 3.9
    35 7.7 2.2 1.4 14.2 16.5 520 0.565 350 3.5
    50 9.2 2.2 1.4 15.6 18.3 660 0.393 300 3.0
    70 11.0 2.2 1.5 17.5 20.5 880 0.277 260 2.6
    95 12.5 2.4 1.6 19.6 22.3 1130 0.210 250 2.5
    120 14.2 2.4 1.6 21.1 24.6 1370 0.164 220 2.2
    150 15.8 2.4 1.7 22.7 26.6 1690 0.132 210 2.1
    185 17.5 2.4 1.7 24.0 28.1 2000 0.1080 200 2.0
    240 20.1 2.4 1.8 27.0 31.6 2620 0.0817 180 1.8
    300 22.5 2.4 1.9 29.4 34.4 3140 0.0654 170 1.7
    400 25.8 2.6 2.0 32.7 38.3 4140 0.0495 150 1.5

    FRL-SW-6S 3.6/6 kV

    Nominal Cross-Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Min. Mean Thickness of Sheath Overall Diameter Weight Max. Conductor Resistance Min. Insulation Resistance
    min max 20°C 20°C 90°C
    mm² mm mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    2.5 1.95 3.0 1.4 10.5 12.3 170 8.21 1300 13
    4.0 2.5 3.0 1.4 11.0 12.9 190 5.09 1150 11.5
    6.0 3.0 3.0 1.4 11.5 13.4 230 3.39 1050 10.5
    10 3.9 3.0 1.4 12.3 14.4 300 1.95 850 8.5
    16 5.0 3.0 1.4 13.3 15.6 360 1.24 710 7.1
    25 6.4 3.0 1.4 14.7 17.2 450 0.795 630 6.3
    35 7.7 3.0 1.4 15.9 18.6 560 0.565 550 5.5
    50 9.2 3.0 1.5 17.5 20.5 720 0.393 500 5.0
    70 11.0 3.0 1.5 19.2 22.4 930 0.277 430 4.3
    95 12.5 3.0 1.6 20.8 24.3 1160 0.210 400 4.0
    120 14.2 3.1 1.7 22.7 26.6 1430 0.164 360 3.6
    150 15.8 3.1 1.7 24.2 28.4 1740 0.132 340 3.4
    185 17.5 3.2 1.8 26.2 30.7 2080 0.108 330 3.3
    240 20.1 3.4 1.9 29.2 34.2 2730 0.0817 300 3.0
    300 22.5 3.4 1.9 31.5 36.9 3230 0.0654 250 2.5
    400 25.8 3.4 2.0 34.8 40.7 4210 0.0495 230 2.3

    (a) = for information, indicative only
